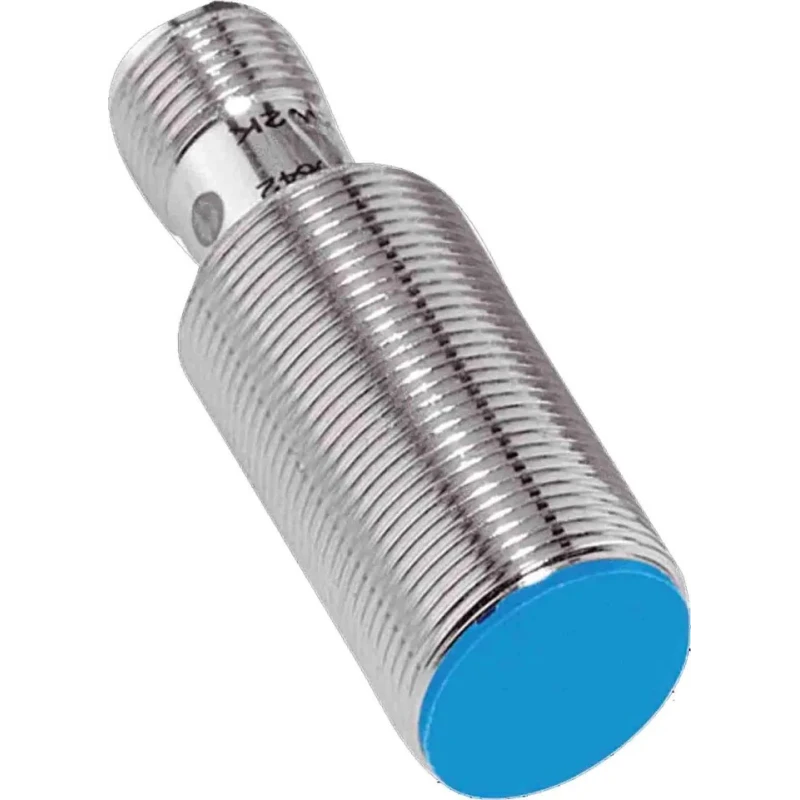

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 30 V DC 200mA IME18-05BPOZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 50mm |
| Model | IME18-05BPOZC0K |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME18-05BPOZC0K |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 5mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Operates at a maximum supply voltage of 30 V DC with a switching current of 200 mA.
- Features a sensing distance of 5 mm with shielded technology for accurate detection.
- Robust metal housing with IP67 rating ensures high protection against dust and water.
- Compact size with 50 mm length and M18 x 1 thread size for easy flush mounting.
- Designed to function reliably in temperatures from -25°C to 75°C.
- Supports switching frequencies up to 1 kHz for fast response applications.
- Equipped with a 4-pin terminal for standard electrical connections.
- Complies with EN 60529 and EN 60947-5-2 industrial standards for safety and reliability.
Product Description
SICK IME18-05BPOZC0K is a threaded barrel Inductive Proximity Sensor designed for high precision metal detection in industrial automation. Featuring a PNP output type and operating at 30 V DC with a maximum switching current of 200 mA, it provides reliable sensing performance in compact spaces.
The sensor’s M18 x 1 threaded body and 50 mm length allow easy flush mounting in machinery, while the nickel-plated brass housing and plastic sensing face ensure robustness and durability. With an IP67 enclosure rating, the sensor is protected from dust and water ingress, making it suitable for harsh environments.
This device supports a sensing distance of up to 5 mm for metal objects and operates within an extended temperature range from -25°C to +75°C. Its high switching frequency of 1 kHz allows for fast and accurate detection, essential for various industrial use cases.
The integrated ASIC chip enables digital adjustment post-manufacturing, ensuring precise switching behavior and high repeatability. Encapsulation with hotmelt molding enhances shock and vibration resistance, prolonging operational life.
Typical applications include presence detection for car body parts, positioning of tool carriers, conveyor part detection, automated part feeders, and safety gate monitoring in industrial settings. It is widely used in manufacturing, assembly lines, material handling, and process automation.
Operates at a maximum supply voltage of 30 V DC with a switching current of 200 mA. Metal detection with sensing range of 5 mm and shielded design. Threaded barrel housing M18 x 1 with 50 mm length. Flush mountable with IP67 ingress protection rating.
Wide operating temperature range from -25°C to 75°C. Switching frequency up to 1 kHz for fast response. Complies with EN 60529 and EN 60947-5-2 standards. Robust metal housing with plastic sensing face for durability. 4-pin terminal type for electrical connectivity.
Explore the range of SICK sensors at EnvMart for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30 V DC.
It has a sensing distance of up to 5 mm for metal objects.
The sensor supports a maximum switching current of 200 mA.
This model operates reliably within a temperature range of -25°C to +75°C.
It has an IP67 rating, providing high protection against dust and water.
This sensor features a PNP output type.
It supports a maximum switching frequency of 1 kHz.
The sensor is designed for flush mounting with its M18 x 1 threaded body.
It is specifically designed to detect metal materials.
It is equipped with a 4-pin terminal for standard electrical connections.
This model complies with EN 60529 and EN 60947-5-2 industrial standards.
The sensor has a length of 50 mm.
