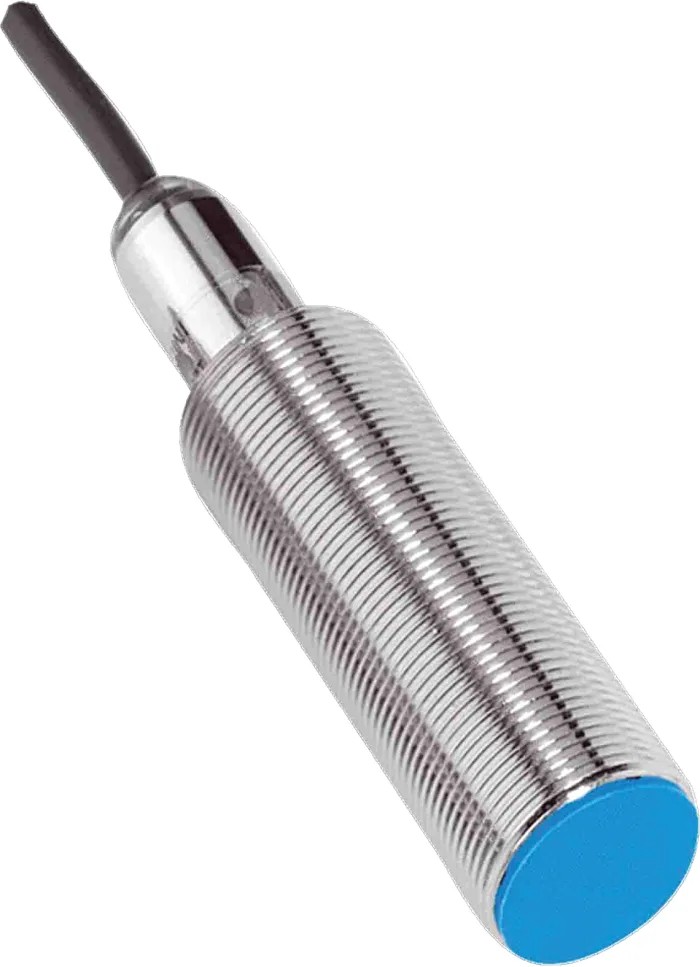

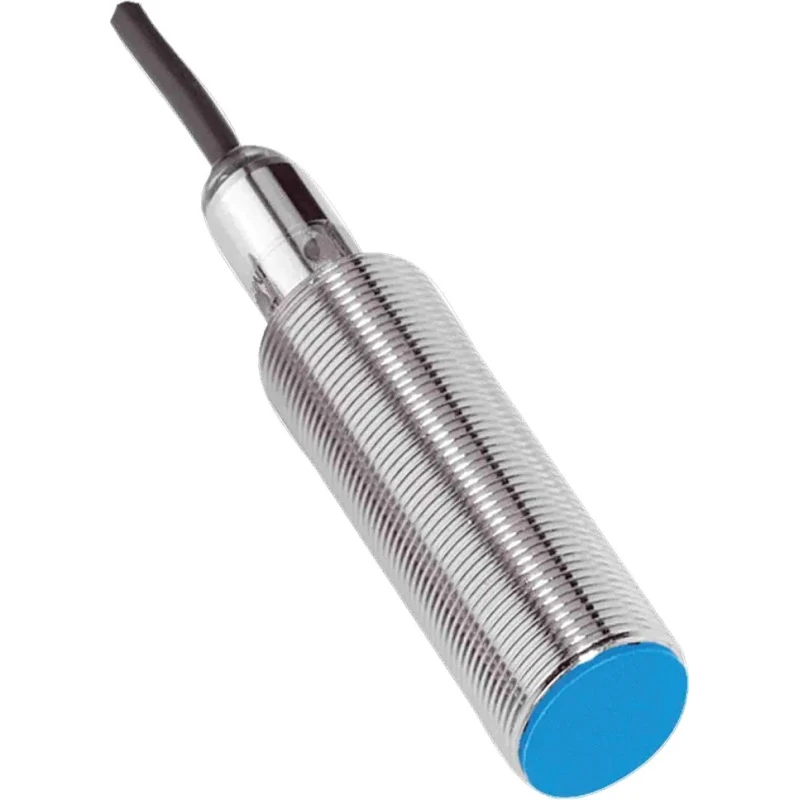

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1, NPN Output, 30 V DC, 5 mm Detection Range IME18-05BNOZW2S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 67mm |
| Model | IME18-05BNOZW2S |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME18-05BNOZW2S |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 5mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Features a robust M18 x 1 threaded barrel metal housing with IP67 rating.
- Supports NPN output with a maximum switching current of 200 mA.
- Operates reliably within a temperature range from -25°C to 75°C.
- Provides flush mounting for precise positioning and shielded sensing.
- Utilizes cable terminal connection for installation flexibility.
- Has a maximum switching frequency of 1 kHz for high-speed detection.
- Offers extended sensing ranges from 1.5 mm to 38 mm in the IME series.
- Constructed from nickel-plated brass with a durable plastic sensing face.
Product Description
SICK IME18-05BNOZW2S is a high-precision threaded barrel Inductive Proximity Sensor designed for industrial automation and metal detection applications. With an M18 x 1 threaded metal housing and a sensing range of 5 mm, this sensor is engineered to deliver accurate presence detection under demanding conditions.
The sensor operates on a 30 V DC supply voltage and is equipped with an NPN output type supporting up to 200 mA switching current and a switching frequency of 1 kHz. Its shielded design and flush mountability enable precise and reliable detection in metal-rich environments.
Designed for harsh environments, the IME18-05BNOZW2S is IP67 rated, providing full protection against dust ingress and water immersion. The operating temperature range spans from -25°C to 75°C, making it suitable for diverse industrial settings.
The nickel-plated brass body along with the plastic sensing face ensures mechanical robustness and long-term durability, reducing downtime. The integrated ASIC chip technology supports digital adjustment post-manufacturing for consistent and repeatable switching behavior.
Robust M18 x 1 metal threaded barrel housing with IP67 protection. NPN output with 200 mA maximum switching current. Flush mount design for accurate positioning. Operating temperature from -25°C to 75°C for versatile applications.
Shielded sensor providing interference-free detection. Extended sensing ranges within the IME series. Certified to EN 60529 and EN 60947-5-2 standards. Ideal for presence detection, positioning, and speed monitoring in industrial automation.
This sensor is suitable for applications such as detecting metal components, presence checks on assembly lines, positioning tool carriers, monitoring conveyor parts, and end position detection in machinery. It ensures high machine availability and precise switching behavior even in challenging production environments.
The SICK IME18-05BNOZW2S offers a cost-efficient solution with extensive standard portfolio support, making it a preferred choice in Electronics & Electricals automation sensor applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the SICK IME18-05BNOZW2S is 5 mm.
This model features an NPN output type, supporting a maximum switching current of 200 mA.
The operating temperature range for the SICK IME18-05BNOZW2S is from -25°C to 75°C.
This sensor has an IP67 rating, providing protection against dust and water immersion.
The maximum switching frequency of this sensor is 1 kHz, allowing for high-speed detection.
The housing of the SICK IME18-05BNOZW2S is made of nickel-plated brass, ensuring mechanical robustness.
This model features a flush mount design, enabling precise positioning during installation.
The sensor utilizes a cable terminal connection for installation flexibility.
This sensor is certified to EN 60529 and EN 60947-5-2 standards.
The dimensions of the SICK IME18-05BNOZW2S are 67 mm in length and 18 mm in width.
This inductive proximity sensor is designed to detect metal components.
The SICK IME18-05BNOZW2S supports DC 3-/4-wire and DC 2-wire electrical configurations.
