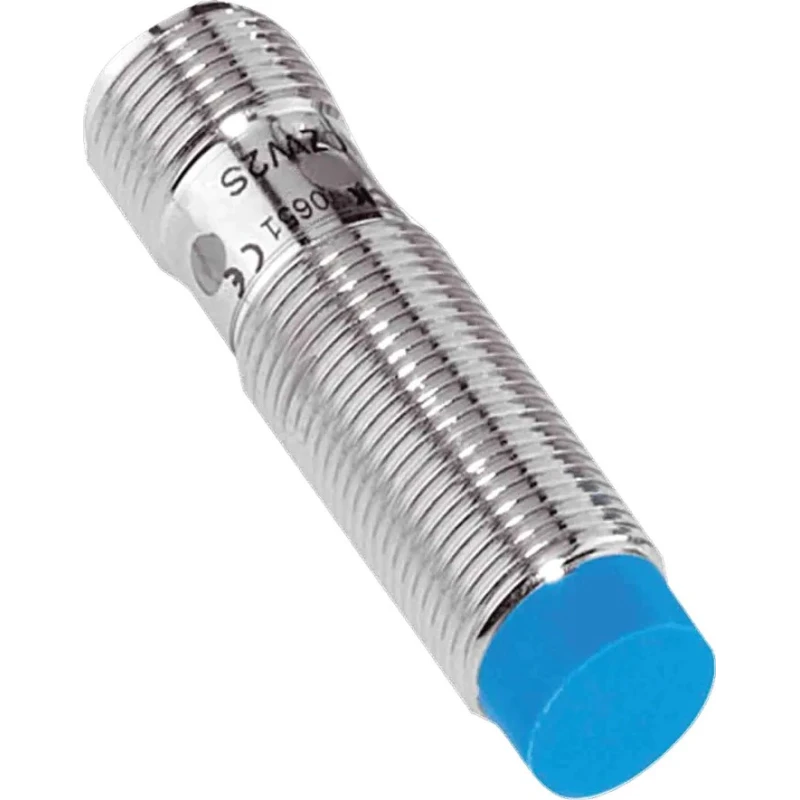

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30 V DC 200mA IME12-04NPPZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 46mm |
| Model | IME12-04NPPZC0K |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME12 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 4mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Thread size M12 x 1 with a threaded barrel body style for sturdy mounting.
- Offers non-flush mount type with a 4-pin terminal connection for easy wiring.
- Operates with a maximum supply voltage of 30 V DC and switching current of 200mA.
- Equipped with an unshielded sensor face and metal housing providing IP67 protection rating.
- Detects metal objects up to 4mm distance with a maximum switching frequency of 2 kHz.
- Constructed with nickel-plated brass housing and plastic sensing face for durability.
- Wide temperature operating range from -25°C to +75°C for harsh environments.
- Complies with EN 60947-5-2 and EN 60529 standards ensuring quality and safety.
Product Description
SICK IME12-04NPPZC0K is a threaded barrel Inductive Proximity Sensor with M12 x 1 thread size, PNP output, and 30 V DC operating voltage, designed for high automation reliability.
This sensor features a rugged metal housing with an IP67 rating, ensuring protection against dust and water ingress, making it suitable for demanding industrial environments. Its 4 mm sensing range allows for precise metal detection in various applications.
The device supports a wide operating temperature range from -25°C to +75°C and a maximum switching frequency of 2 kHz, ensuring fast and accurate switching performance. The PNP output type and 4-pin terminal facilitate easy integration into automated control systems.
Sensors use nickel-plated brass housing combined with a plastic sensing face, enhancing durability and resistance to shock and vibration. The integrated ASIC chip in the IME12 series allows for digital adjustment and highly repeatable switching points, increasing machine availability and reducing downtime.
Typical applications include presence detection of car body parts, positioning of tool carriers, end position detection, monitoring film tension, and speed monitoring in escalators. It provides dependable non-contact detection and is widely used in automotive, manufacturing, packaging, and automation industries.
Thread size M12 x 1 with threaded barrel design. Operating voltage 30 V DC with switching current of 200mA. IP67 rated for robust industrial environmental protection. Detects metal objects up to 4 mm distance with 2 kHz switching frequency.
Operating temperature range from -25°C to +75°C. Compliance with EN 60947-5-2 and EN 60529 standards. 4-pin terminal type with non-flush mount suitable for various installations. Durable nickel-plated brass housing with plastic sensing face.
Applications include presence detection, positioning, monitoring, and speed detection.
This sensor is a reliable component for automation and control, enhancing operational efficiency in industrial and manufacturing sectors. Explore additional sensors and automation solutions in our Electronics & Electricals Sensors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 4 mm for metal objects.
This model operates with a maximum supply voltage of 30 V DC and a switching current of 200 mA.
It features a PNP output type, suitable for various automated control systems.
This sensor has an IP67 rating, providing protection against dust and water ingress.
The sensor operates within a temperature range of -25°C to +75°C.
The sensor has a length of 46 mm and a width of 12 mm.
It features a 4-pin terminal type for easy wiring and integration.
This model is designed to detect metal objects.
The maximum switching frequency for this sensor is 2 kHz, allowing for fast detection.
It complies with EN 60947-5-2 and EN 60529 standards for quality and safety.
This model supports a non-flush mount type, suitable for various installation scenarios.
The housing is made of nickel-plated brass, combined with a plastic sensing face for durability.
