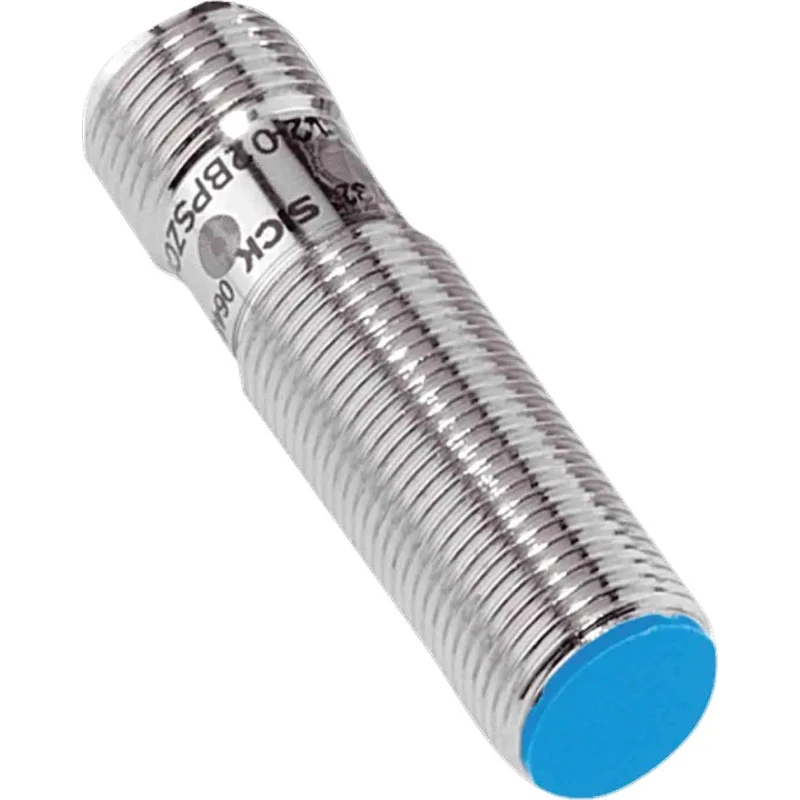

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 NPN 30 V DC 200mA IME12-02BNSZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 46mm |
| Model | IME12-02BNSZC0K |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME12-02BNSZC0K |
| Maximum Operating Temperature | 75°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Plastic |
| Maximum Detection | 2mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Thread size M12 x 1 with a threaded barrel body style ensuring secure mounting.
- Flush mount type with IP67 rating for dust and water protection.
- Operating voltage up to 30 V DC with a switching current of 200 mA.
- Maximum detection distance of 2 mm for plastic materials with NPN output type.
- Wide operating temperature range from -25°C to 75°C for robust industrial use.
- High switching frequency of 2 kHz and shielded design to minimize interference.
- Metal housing for durable and rugged sensor performance.
- Terminal type is 4-pin suitable for DC 3-/4-wire and DC 2-wire configurations.
Product Description
The SICK IME12-02BNSZC0K is a high-precision threaded barrel inductive proximity sensor designed for industrial automation and control applications. Featuring a robust metal housing and an M12 x 1 threaded design, this sensor supports flush mounting and offers reliable detection capabilities in harsh environments, with an IP67 rating for protection against dust and water ingress.
This sensor operates at a maximum supply voltage of 30 V DC and delivers a switching current of up to 200 mA with an NPN output type. It provides a maximum detection distance of 2 mm for plastic materials, ensuring accurate presence detection without physical contact. The sensor supports a high switching frequency of 2 kHz with shielded casing to minimize electromagnetic interference, enhancing reliability in complex industrial settings.
With an operating temperature range from -25°C to 75°C, the IME12-02BNSZC0K adapts to various environmental conditions. Its compact size, featuring a length of 46 mm and width of 12 mm, allows easy installation in tight spaces. The terminal configuration includes a 4-pin design supporting DC 3-/4-wire and 2-wire electrical setups.
Applications include presence detection of components, positioning of tool carriers, monitoring end positions, and speed monitoring in systems such as escalators and automatic doors. The sensor’s high switching accuracy and durability offer enhanced machine availability and reduced downtime.
Manufactured in Hungary, this proximity sensor complies with EN 60529 and EN 60947-5-2 standards, guaranteeing quality and safety in industrial use. Thread size M12 x 1 with threaded barrel housing. Rated IP67 for protection against dust and water.
Metal housing with plastic sensing face. NPN output with 200 mA switching current. Operating temperature from -25°C to 75°C. High switching frequency of 2 kHz and shielded design. Supports DC 3-/4-wire and DC 2-wire configurations.
Compliant with EN 60529, EN 60947-5-2 standards.
This Inductive Proximity Sensor is suitable for industrial, manufacturing, automation, laboratory, HVAC, and commercial applications requiring reliable and precise presence detection. Explore more sensors and control gear in EnvMart to enhance your system's automation capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance for this model is 2 mm for plastic materials.
It operates at a maximum supply voltage of 30 V DC.
The sensor has a switching current capacity of up to 200 mA.
The operating temperature range is from -25°C to 75°C.
This unit provides an NPN output type.
It has an IP67 rating, providing protection against dust and water ingress.
The sensor has a length of 46 mm and a width of 12 mm.
It features a shielded design to minimize electromagnetic interference.
It supports flush mounting due to its threaded barrel body style.
The terminal type is 4-pin and supports DC 3-/4-wire and DC 2-wire configurations.
It complies with EN 60529 and EN 60947-5-2 standards.
This sensor is suitable for applications such as presence detection of components, positioning of tool carriers, and monitoring end positions in various systems.
