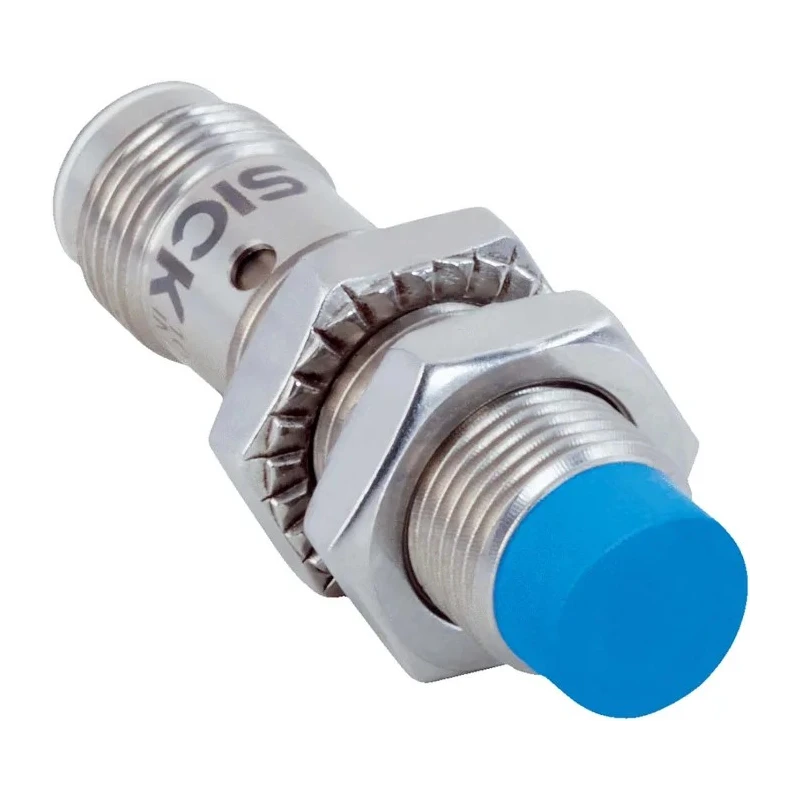

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30 V DC 200mA IMB12-08NPSVC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 40 °C to +100 °C |
| Length | 45mm |
| Model | IMB12-08NPSVC0K |
| IP Rating | IP68, IP69K |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IMB12-08NPSVC0K |
| Maximum Operating Temperature | 100°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | ISO 20653:2013-03, EN 60529 |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 8mm |
| ISO 20653 | 2013-03, EN 60529 |
| Extended sensing ranges | 2 mm to 20 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
| Standards/ApprovalsISO 20653 | 2013-03, EN 60529 |
Key Features
- Constructed with a rugged stainless-steel housing for durability.
- Provides non-flush mounting with a threaded barrel form factor.
- Operates reliably at temperatures from -40°C to 100°C.
- Ensures IP68 and IP69K protection for harsh environment use.
- Features a PNP output type with a maximum switching current of 200mA.
- Equipped with a 4-pin terminal for secure connections.
- Maximum supply voltage up to 30 V DC supports stable operation.
- Unshielded design with extended sensing ranges facilitated by advanced ASIC technology.
Product Description
SICK IMB12-08NPSVC0K is a threaded barrel Inductive Proximity Sensor with an M12 x 1 thread size, designed for industrial automation applications requiring precise, reliable sensing. It features a rugged stainless-steel housing and a plastic sensing face, capable of withstanding harsh environmental conditions with an IP68 and IP69K rating.
This sensor operates on a maximum supply voltage of 30 V DC and supports a maximum switching current of 200mA with a PNP output type. It provides an 8 mm maximum detection range and operates effectively in temperatures ranging from -40°C to 100°C, making it suitable for use in cooling lubricant environments and outdoor settings.
The IMB12-08NPSVC0K includes a 4-pin terminal type and supports non-flush mounting for versatile installation. Its unshielded design is enhanced with SICK ASIC technology, allowing extended sensing ranges, stable processes, and reduced machine downtime. The sensor is equipped with an optical adjustment indicator and self-locking nuts for quick and error-free installation, alongside IO-Link compatibility for advanced communication options.
Rugged stainless steel construction ensures durability and resistance to oils and cooling lubricants. Non-flush threaded barrel body style provides flexible and stable mounting options. High ingress protection with IP68 and IP69K ratings for washdown and harsh environment resistance.
Wide operating temperature range from -40 °C to +100 °C allows use in diverse industrial applications. Maximum switching frequency of 2 kHz supports rapid and accurate sensor response. Supports monitoring of material transportation, valve piston positions, and speed measurement applications.
Particularly useful for elevator door detection, zone detection, and position determination in conveyors and revolving doors.
This sensor's high precision and robust build make it ideal for industrial, manufacturing, HVAC, and automation control systems. The availability of an extensive standard product portfolio enables quick implementation of customized variants within automation setups.
For more sensors and automation control products, explore the Electronics & Electricals Sensors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 8 mm.
It operates effectively within a temperature range of -40 °C to +100 °C.
This sensor features a PNP output type with a maximum switching current of 200mA.
It has an IP68 and IP69K rating, making it suitable for harsh environments and washdown applications.
The sensor has a thread size of M12 x 1.
This model supports non-flush mounting with a threaded barrel body style, allowing for flexible installation options.
The maximum supply voltage is 30 V DC.
The maximum switching frequency is 2 kHz, supporting rapid sensor response.
The housing is constructed from stainless steel, providing durability and resistance to oils and cooling lubricants.
It is equipped with a 4-pin terminal for secure connections.
It complies with ISO 20653:2013-03 and EN 60529 standards.
The sensor supports a lance interface, suitable for various industrial applications.
