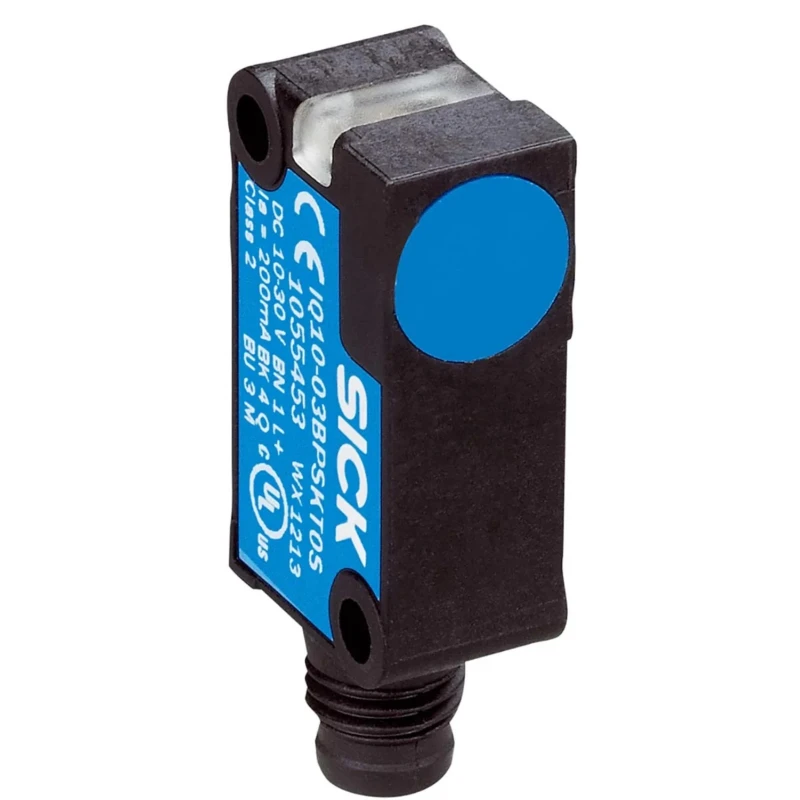

SICK Block Inductive Proximity Sensor PNP IQ10-03BPPKQ8S 30 V DC 200 mA 3 mm Detection Range IQ10-03BPPKQ8S
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 16mm |
| Model | IQ10-03BPPKQ8S |
| Depth | 28mm |
| IP Rating | IP68 |
| Width | 10mm |
| Mount Type | Flush |
| Housing Material | Plastic |
| Types | 10 mm x 16 mm x 28 mm or 12 mm x 26 mm x 40 mm |
| Output type | PNP |
| Series | IQ10 |
| Maximum Operating Temperature | 75°C |
| Enclosure Rating | IP 68 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 3mm |
| Extended sensing ranges | 2 mm to 8 mm |
| Electrical configuration | DC 3-/4-wire |
Key Features
- Compact block design measuring 10 mm width, 16 mm length, and 28 mm depth.
- High protection rating of IP68 for water and dust resistance.
- Flush mountable with pre-cabled terminal for easy installation.
- Detects metal objects with high accuracy and a switching current of 200 mA.
- Operates reliably within a wide temperature range from -25 °C to 75 °C.
- Unshielded sensor series IQ10 with extended sensing ranges between 2 mm to 8 mm.
- Robust plastic housing made of VISTAL™ material ensuring vibration and shock resistance.
- Compliance with standards EN 60947-5-2 and EN 60529 for industrial sensors.
Product Description
SICK IQ10-03BPPKQ8S block Inductive Proximity Sensor with PNP output technology is designed for robust presence detection of metal objects in industrial automation environments. It operates at a maximum supply voltage of 30 V DC and supports a switching current of up to 200 mA, delivering reliable switching performance in compact dimensions (10 mm x 16 mm x 28 mm).
The sensor features an IP68-rated rugged VISTAL™ plastic housing that offers excellent resistance to shock and vibration, suitable for harsh industrial applications. It supports flush mounting with a pre-cabled terminal connection for quick installation and maintenance.
The sensing range of the IQ10 series extends from 2 mm to 8 mm with an unshielded design, allowing precise detection even in challenging scenarios. Operating temperature ranges from -25 °C to 75 °C, making it ideal for diverse conditions.
Standards compliance with EN 60947-5-2 and EN 60529 ensures electrical safety and enclosure protection levels important for industrial control gear. The sensor’s small size combined with its extended sensing capabilities allow space-saving integration in manufacturing and process automation setups.
Applications include presence detection of press tools, position monitoring of car body reworking stations, detecting workpiece carriers, rack identification, and monitoring door leaf positions in elevators and revolving doors. The 270° output state display provides clear status visibility from multiple angles, reducing maintenance overhead.
SICK IQ10-03BPPKQ8S is ideal for reliable fast handling, assembly processes, speed monitoring in escalators, and various other industrial control and automation use cases demanding high sensor accuracy and durability.
Compact block housing with plastic VISTAL™ material for durability. Wide operating temperature range ensures versatility under harsh conditions. High process reliability and long service life reduce maintenance costs. Unshielded sensing with extended range for precise metal detection.
Simple flush mounting with pre-cabled terminal for ease of installation. Complies with key industrial standards for enhanced safety and protection. Suitable for various industrial automation applications including positioning and presence detection.
Explore the complete range of high-quality proximity sensors and automation components on EnvMart to enhance your system performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 3 mm, with extended sensing ranges from 2 mm to 8 mm.
It operates reliably within a temperature range from -25 °C to 75 °C.
The sensor supports a maximum switching current of 200 mA.
This model features a PNP output type for its operation.
The dimensions of this sensor are 10 mm in width, 16 mm in length, and 28 mm in depth.
It is designed for flush mounting and comes with a pre-cabled terminal for easy installation.
This sensor is specifically designed to detect metal objects.
The sensor has an IP68 rating, providing excellent protection against dust and water.
It complies with the standards EN 60947-5-2 and EN 60529 for industrial sensors.
The maximum supply voltage for this sensor is 30 V DC.
This model has a maximum switching frequency of 2 kHz.
The sensor features a robust plastic housing made of VISTAL™ material, which offers resistance to shock and vibration.
