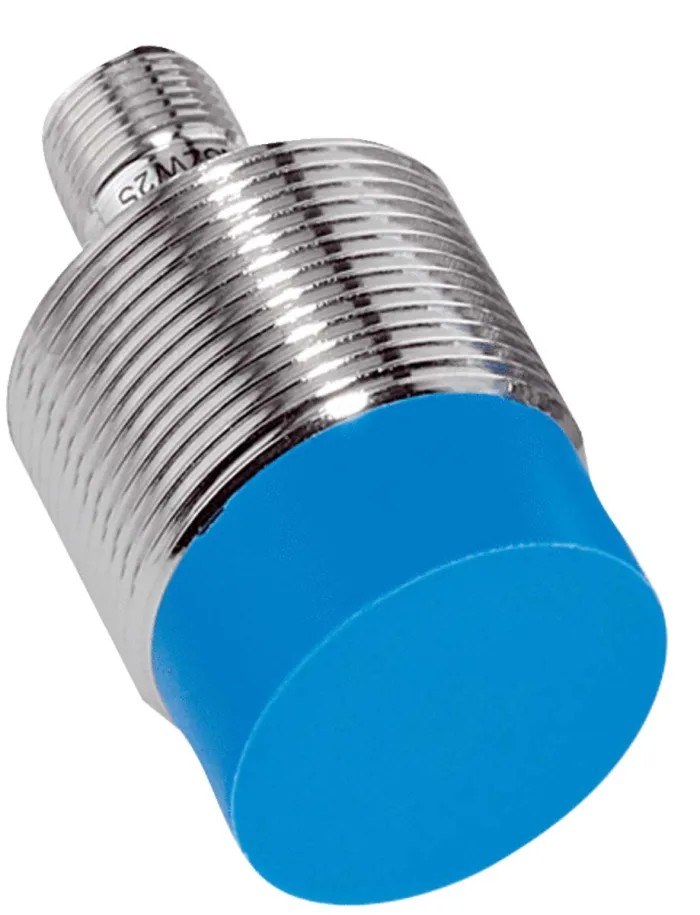

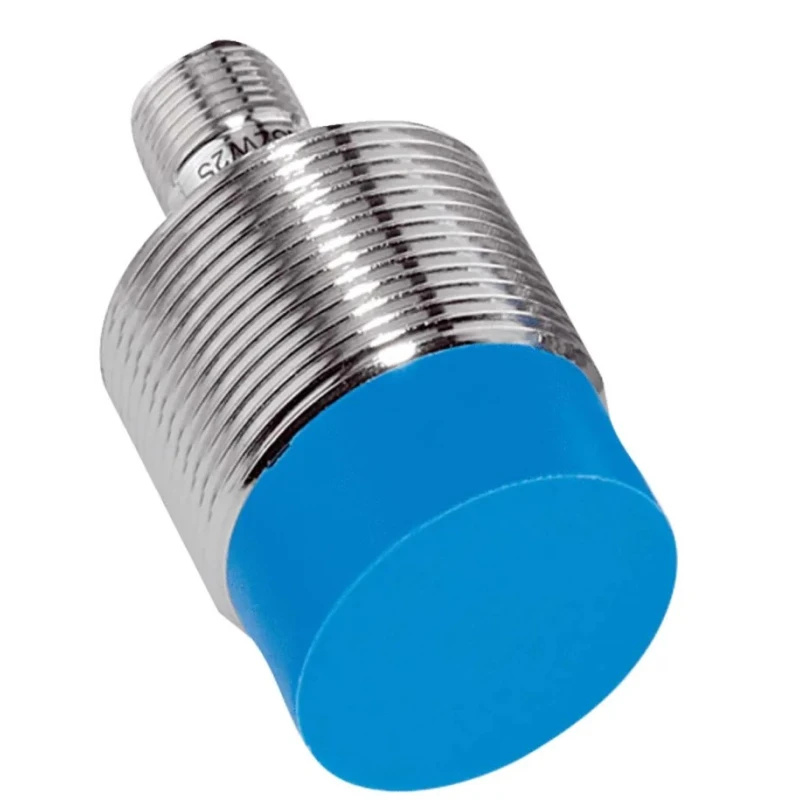

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5, NPN Output, 30V DC, 200mA, 38mm Max Detection IME30-38NNSZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 52mm |
| Model | IME30-38NNSZC0K |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME30 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 100Hz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 38mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Threaded barrel design with M30 x 1.5 thread size ensures secure mounting.
- Metal housing with plastic sensing face provides durability and protection.
- High environmental resistance with IP67 rating suitable for harsh industrial environments.
- Operating temperature range from -25°C to +75°C enables wide application scope.
- NPN output type supports reliable switching current up to 200mA.
- Maximum switching frequency is 100Hz for fast detection tasks.
- Unshielded sensor design for extended sensing range applications up to 38mm.
- 4-pin terminal type enables easy integration with control systems.
Product Description
SICK IME30-38NNSZC0K is a threaded barrel Inductive Proximity Sensor with a robust metal body and non-flush mount type. It features an M30 x 1.5 thread size, NPN output, and operates at a maximum supply voltage of 30 V DC with a current rating of 200mA. This sensor offers a maximum detection range of 38 mm and a switching frequency of up to 100 Hz, making it suitable for precise presence detection and positioning applications.
The sensor's housing is nickel-plated brass with a plastic sensing face, delivering high mechanical resistance and excellent shock and vibration tolerance. Rated IP67, it is protected against dust ingress and water immersion, supporting reliable operation in harsh industrial, automation, and manufacturing environments.
Operating temperature ranges from -25°C to 75°C, enabling performance in both cold and hot conditions. The device supports DC 3-/4-wire and 2-wire electrical configurations and includes a 4-pin terminal connection for straightforward installation. Its unshielded design offers extended sensing capabilities.
This sensor is ideal for applications such as presence detection for car body parts, positioning tool carriers, monitoring conveyor system elements, and detection tasks in automated manufacturing lines. It ensures high machine availability due to its rugged design and precise switching behavior aided by an integrated ASIC chip, allowing digital adjustment and stable switching points with high repeatability.
Threaded barrel sensor design for secure mounting. Robust metal housing with IP67 protection. Maximum detection distance of 38mm with unshielded sensing. Wide operating temperature range from -25°C to +75°C. Supports NPN output with 200mA switching current.
Maximum switching frequency of 100 Hz for rapid sensing. 4-pin terminal connection for easy integration. Compatibility with DC 3-/4-wire and 2-wire electrical configurations. Manufactured in Hungary ensuring quality and reliability.
Suitable for industrial automation, manufacturing, and process control industries. Explore a wide range of high-quality sensors and automation components at EnvMart to support your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 38 mm, allowing it to detect metal objects within this distance.
It operates within a temperature range of -25°C to +75°C, making it suitable for various environmental conditions.
This sensor features an NPN output type, which supports a reliable switching current of up to 200mA.
The sensor has an IP67 rating, indicating it is protected against dust ingress and water immersion, suitable for harsh environments.
This model has a length of 52 mm and a width of 30 mm, fitting standard mounting configurations.
The maximum switching frequency of this sensor is 100 Hz, allowing for rapid detection tasks.
It is designed to detect metal materials, making it suitable for various industrial applications.
It operates at a maximum supply voltage of 30V DC and supports DC 3-/4-wire and 2-wire electrical configurations.
The sensor features a threaded barrel design with an M30 x 1.5 thread size, ensuring secure mounting.
The housing is made of nickel-plated brass with a plastic sensing face, providing durability and protection.
It complies with EN 60529 and EN 60947-5-2 standards, ensuring reliability in industrial applications.
This model uses a 4-pin terminal connection, facilitating easy integration with control systems.
