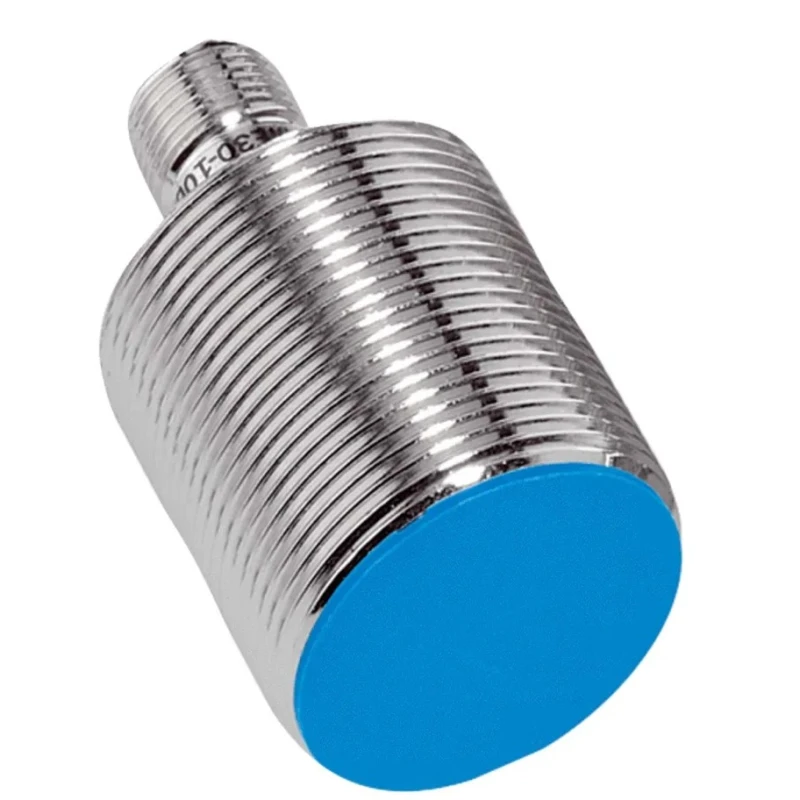

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 30 V DC 200mA IME30-15BPOZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 52mm |
| Model | IME30-15BPOZC0K |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME30 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | According to EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 15mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Features a durable nickel-plated brass housing with a plastic sensing face.
- Provides a compact design with dimensions 52 mm length and 30 mm width.
- Supports IP67 protection rating for dust and water resistance.
- Operates reliably in temperatures from -25°C to 75°C.
- Equipped with a PNP output type and 4-pin terminal configuration.
- Capable of switching currents up to 200 mA with a maximum switching frequency of 500 Hz.
- Flush mount type for simplified integration into industrial setups.
- Shielded sensor for high precision and reduced interference.
Product Description
The SICK IME30-15BPOZC0K is a threaded barrel type inductive proximity sensor designed for industrial use with a metal detection range of 15 mm and operating voltage of 30 V DC. It features a robust nickel-plated brass housing and plastic sensing face which ensures long service life and high resistance to harsh environments. The sensor body measures 52 mm in length and 30 mm in diameter, providing a compact form factor suitable for various automation and control applications.
Rated with an IP67 enclosure, this sensor offers excellent protection against dust and water ingress, enabling reliable operation in challenging industrial settings. It operates efficiently in temperature conditions ranging from -25°C to 75°C, making it versatile for different climates.
The IME30-15BPOZC0K employs a PNP output and a 4-pin terminal connection for easy wiring and integration. It can handle switching currents up to 200 mA and supports switching frequencies up to 500 Hz, allowing for responsive detection in fast-paced manufacturing environments. Its flush mounting style and shielded design enhance precise sensing with minimal interference.
Durable nickel-plated brass housing with plastic sensing face for robustness. Compact dimensions: 52 mm length and 30 mm width for tight spaces. IP67 rating to withstand dust and water exposure. Temperature range from -25°C to 75°C for varied industrial climates.
PNP output with 4-pin terminal type for reliable electrical connections. Maximum switching current of 200 mA and frequency of 500 Hz for high-speed applications. Flush mount and shielded sensor ensuring accurate, interference-free detection.
Compliance with EN 60947-5-2 standards for safety and performance. Widely used in presence detection, positioning, monitoring, and automation processes.
This sensor is ideal for applications such as detecting metal parts, tool positioning, end of film detection, presence checks in assembly lines, and many others across automotive, packaging, manufacturing, and material handling industries. Its rugged design and precise switching behavior contribute to high machine availability and low downtime.
Explore more Inductive Proximity Sensors and industrial automation products for enhanced control solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SICK IME30-15BPOZC0K has a maximum detection range of 15 mm for metal objects.
It operates efficiently in temperatures ranging from -25°C to 75°C.
This model features a PNP output type, suitable for various applications in industrial settings.
The maximum switching current it can handle is 200 mA.
The sensor has a length of 52 mm and a width of 30 mm, providing a compact design for installation.
It has an IP67 rating, ensuring protection against dust and water ingress.
The sensor supports a maximum switching frequency of 500 Hz, allowing for responsive detection in fast-paced environments.
It is equipped with a 4-pin terminal configuration for easy wiring and integration.
This inductive proximity sensor is designed to detect metal materials.
The IME30-15BPOZC0K features a flush mount style, simplifying integration into various setups.
It complies with EN 60947-5-2 standards for safety and performance in industrial applications.
The country of origin for this model is Hungary.
