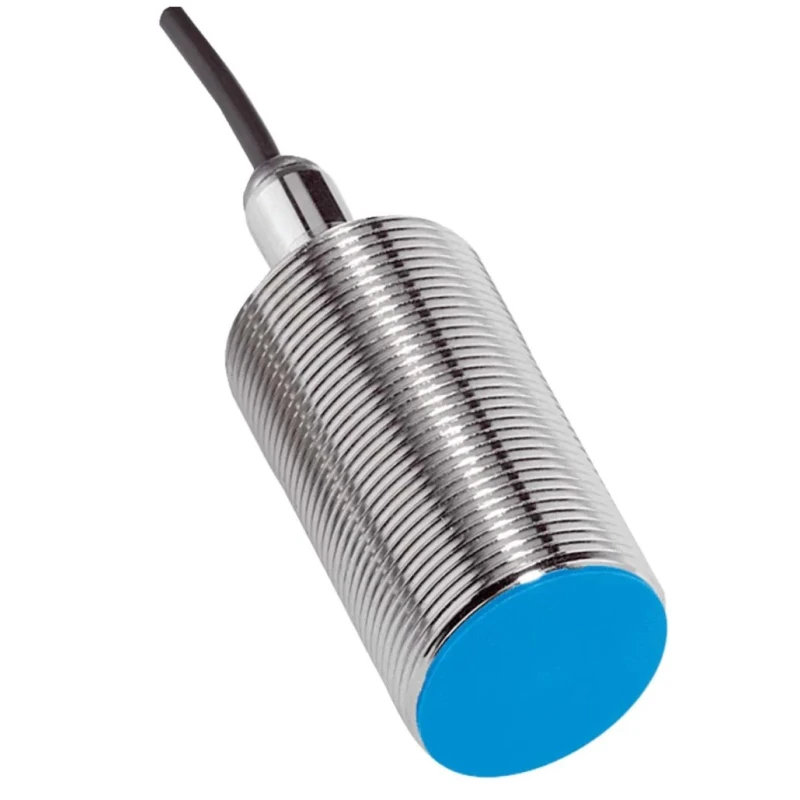

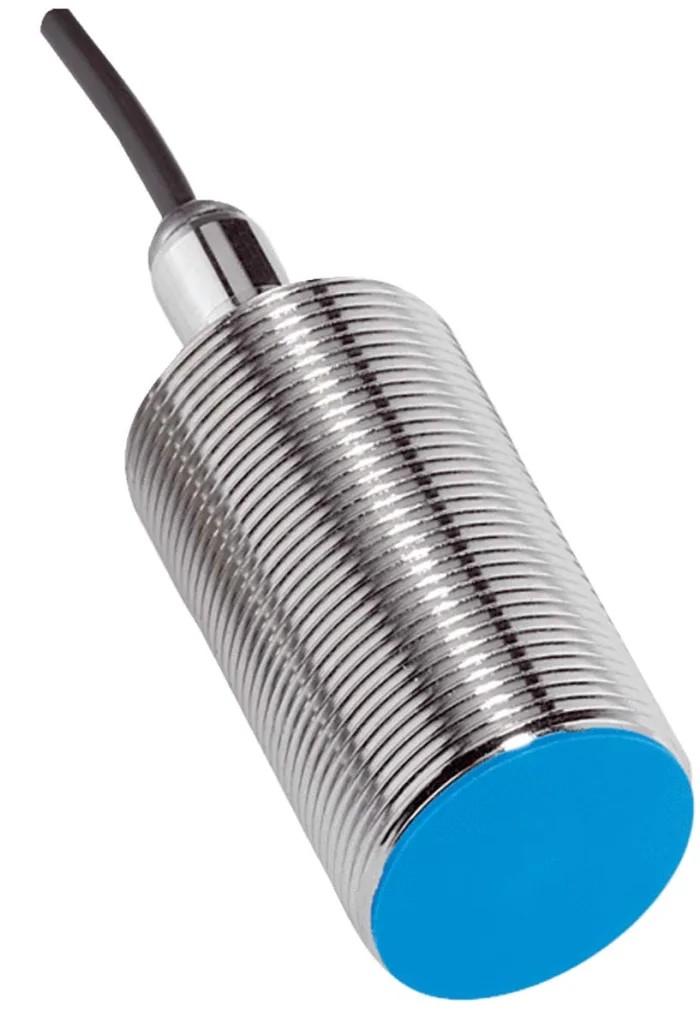

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 30 V DC 15 mm IME30-15BPOZW2S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 70mm |
| Model | IME30-15BPOZW2S |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME30 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 15mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Robust sensor with metal housing featuring an M30 x 1.5 threaded barrel design.
- Operates on a 30 V DC supply with a switching current of 200 mA.
- Provides a maximum detection range of 15 mm for metal objects.
- IP67 rated for protection against dust and water ingress.
- Wide operating temperature range from -25°C to 75°C.
- Features a PNP output type suitable for various automation applications.
- Shielded design reduces interference and ensures reliable switching at frequencies up to 500 Hz.
- Cable termination for easy and secure connection.
Product Description
SICK IME30-15BPOZW2S is a high-performance threaded barrel Inductive Proximity Sensor designed for industrial automation and control systems. It features a rugged metal housing with an M30 x 1.5 thread size and a plastic sensing face suitable for flush mounting. The sensor operates on a 30 V DC supply voltage and is capable of detecting metal objects up to 15 mm away, making it ideal for precise presence detection tasks.
This sensor is fully encapsulated with hotmelt molding, enhancing its shock and vibration resistance, thus ensuring high machine availability and long service life. Its IP67 enclosure rating guarantees protection against dust and water, enabling reliable operation in harsh industrial environments.
The integrated ASIC chip allows digital adjustment post-manufacturing for extremely precise switching points and repeatability, contributing to high positioning accuracy in applications such as positioning tool carriers, presence detection on conveyor systems, and end position monitoring.
Operating temperature ranges from -25°C to +75°C, making it suitable for various industrial settings. The sensor has a switching frequency up to 500 Hz and features a shielded design with a PNP output type and cable terminal.
Applications include presence detection for car body parts, positioning of dashboards and racks, non-contact height positioning in sheet metal storage, automated part feeding, and monitoring of moving parts in manufacturing.
Robust metal housing with threaded barrel design. Extended sensing range up to 15 mm for reliable metal detection. IP67 rated enclosure for dust and water protection. Wide temperature operating range enables versatile industrial use.
High switching frequency of 500 Hz for fast response. Shielded with PNP output type for interference reduction. Integrated ASIC ensures precise and repeatable switching. Suitable for automotive, manufacturing, and automation industries.
Manufactured under strict compliance with EN standards.
This sensor is part of SICK’s IME30 series known for combining compact design, high performance, and cost efficiency. It is an essential component for anyone requiring reliable, accurate, and durable inductive sensing technology.
Browse more sensors and automation products at EnvMart for advanced industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range for this model is 15 mm for metal objects.
This sensor operates on a supply voltage of 30 V DC.
It has a maximum switching frequency of 500 Hz.
The operating temperature range is from -25 °C to +75 °C.
It features a PNP output type, suitable for various automation applications.
The sensor is rated IP67, providing protection against dust and water ingress.
This model is designed to detect metal objects.
It features a robust metal housing.
The sensor has a length of 70 mm and a width of 30 mm.
It is designed for flush mounting.
It complies with EN 60529 and EN 60947-5-2 standards.
It uses a cable terminal for easy and secure connection.
