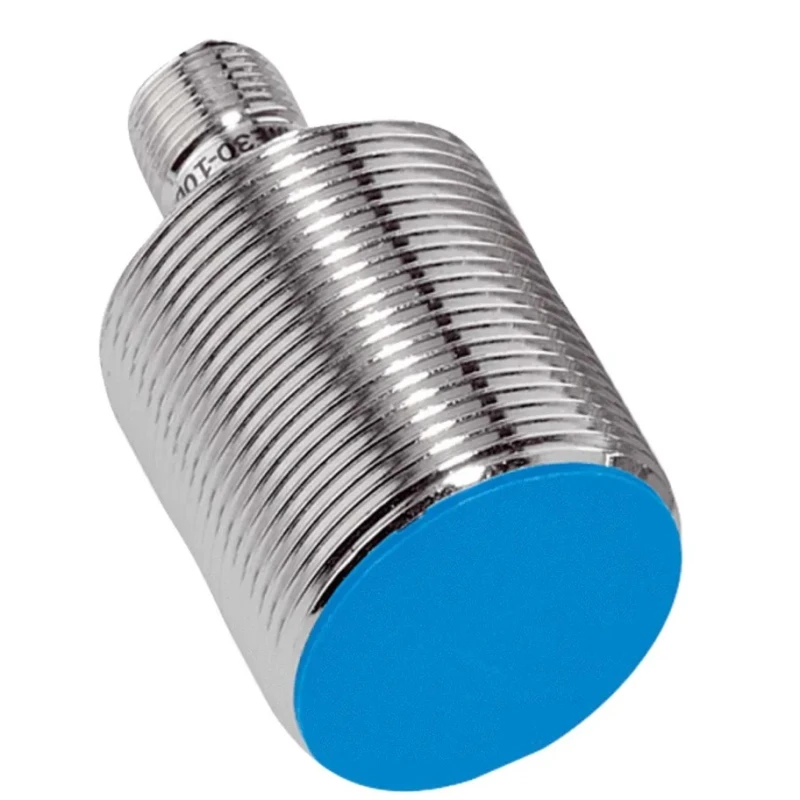

SICK Threaded Barrel Inductive Proximity Sensor, M30 x 1.5, 30 V DC, 15 mm Detection Range, NPN Output IME30-15BNSZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 52mm |
| Model | IME30-15BNSZC0K |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME30 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Steel, Copper, Brass, Aluminium, 304 V2A Stainless Steel |
| Maximum Detection | 15mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Thread size M30 x 1.5 with 52 mm body length for easy mounting.
- Robust metal housing rated IP67 and suitable for flush mounting applications.
- Operates reliably between -25°C and 75°C ambient temperature.
- Detects a variety of metals including steel, copper, brass, aluminium, and stainless steel.
- Supports maximum switching frequency of 500 Hz with a switching current of 200 mA.
- Compatible with 30 V dc maximum supply voltage for industrial automation use.
- Includes 4-pin terminal type with shielded output for noise immunity.
- Meets standards EN 60947-5-2 and EN 60529 for safety and ingress protection.
Product Description
SICK IME30-15BNSZC0K is a high-precision threaded barrel Inductive Proximity Sensor designed for industrial automation and control applications. Featuring a robust metal housing of size M30 x 1.5 and a body length of 52 mm, this sensor provides reliable proximity detection up to 15 mm distance with an NPN output type. It operates within a wide temperature range from -25 °C to +75 °C and is protected with IP67 ingress rating, making it suitable for harsh industrial environments.
The sensor's metal housing offers excellent resistance to mechanical stress, while the shielded design minimizes electrical noise, ensuring accurate switching behavior at a maximum frequency of 500 Hz. With a maximum supply voltage of 30 V dc and switching current rating of 200 mA, it integrates smoothly into standard automation systems.
Materials detected include steel, copper, brass, aluminium, and 304 V2A stainless steel, supporting diverse industrial applications such as presence detection, positioning, and end-of-travel monitoring. The sensor complies with EN 60947-5-2 and EN 60529 standards for safety and ingress protection.
This sensor series offers an integrated ASIC chip for digital adjustment and high repeatability of values, enhancing machine availability and reducing downtime. Applications encompass presence detection for car body parts, position monitoring in conveyor systems, and accurate detection in manufacturing, HVAC, and material handling processes.
Thread size M30 x 1.5 with 52 mm length for flush mounting. IP67 rated metal housing protects against dust and water ingress. Wide operating temperature range from -25 °C to +75 °C. Maximum switching frequency of 500 Hz for fast response.
Compatible with various metals including stainless steel and aluminium. 4-pin terminal type with shielded output minimizes signal interference. Maximum supply voltage 30 V dc and switching current 200 mA. Conforms to EN 60947-5-2 and EN 60529 standards.
This product is manufactured in Hungary and is ideal for industrial, manufacturing, and automation applications requiring rugged and precise proximity sensing. Explore more sensors in the Electronics & Electricals category at EnvMart for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 15 mm.
It operates reliably within a temperature range of -25 °C to +75 °C.
This sensor features an NPN output type.
The maximum switching frequency is 500 Hz.
It can detect various metals including steel, copper, brass, aluminium, and 304 V2A stainless steel.
The maximum supply voltage is 30 V DC.
The housing is made of metal, providing robustness for industrial applications.
This model has a thread size of M30 x 1.5 and a body length of 52 mm.
It is designed for flush mounting applications.
It complies with EN 60947-5-2 and EN 60529 standards for safety and ingress protection.
The switching current rating is 200 mA.
It includes a 4-pin terminal type with shielded output for noise immunity.
