RS PRO Insulated Red Vinyl Butt Splice Connector Tin Plated Copper 16 AWG Crimp 534-288

Free Delivery in India | Lowest Global Shipping Charges

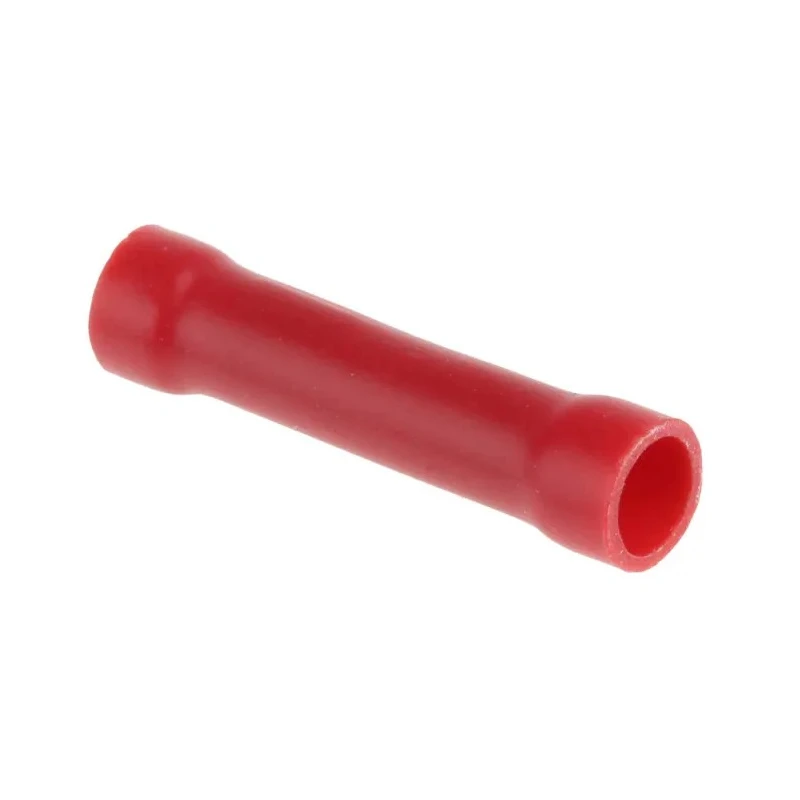

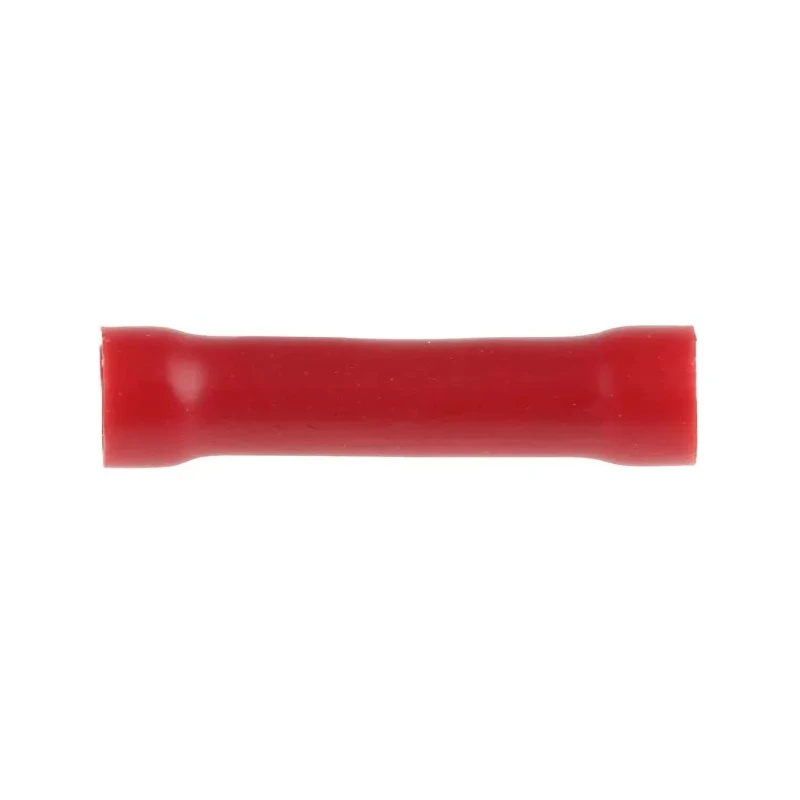

RS PRO Insulated Red Vinyl Butt Splice Connector Tin Plated Copper 16 AWG Crimp 534-288

Name: RS PRO Insulated Red Vinyl Butt Splice Connector Tin Plated Copper 16 AWG Crimp 534-288
Brand: RS PRO
SKU: 167343
Price: 18.48 USD
Availability: InStock



Category Splice Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Diameter	4mm
Brand	RS PRO
Colour	Red
Model	534-288
Insulation	Insulated
Overall Length	24.5mm
Contact Material	Copper
Series	RS PRO
Termination Type	Crimp
Insulation Material	Polyvinyl Chloride
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Splice Type	Butt
CRIMP CONNS-BUTTBrand	NEUTRAL
RS PRO Butt Splice Connector, Red, Insulated, Tin 16 AWGBrand	RS PRO

Key Features

Tin plated copper tube provides reliable conductivity and corrosion resistance.
Red vinyl insulation offers electrical safety and easy wire size identification.
Suitable for wire sizes 22AWG to 16AWG (0.5 to 1.5 mm² cross-sectional area).
Compact 24.5 mm overall length with 4 mm diameter for compact installations.
Crimp termination ensures secure and durable electrical connections.
Wide temperature range from -20°C to +105°C suitable for industrial and commercial applications.
Used in automotive, industrial control systems, and general electrical wiring repairs.
Easy to terminate with standard ratchet crimping tools.

Product Description

RS PRO 534-288 butt splice connector is an insulated electrical splice connector designed with a tin-plated copper tube to enable secure crimp connections of copper wires up to 16 AWG. The red vinyl insulation made from polyvinyl chloride enhances safety by providing electrical insulation and easy identification of wire gauge size.

The 24.5 mm overall length and 4 mm diameter make these connectors compact and suitable for tight or confined spaces often found in electrical control panels, automotive wiring looms, and industrial equipment wiring. The crimp style termination offers a robust mechanical and electrical connection without the need for soldering, ensuring reliability and efficiency in electrical circuits.

Constructed to operate within a broad temperature range of -20°C to +105°C, these connectors are built to withstand demanding environmental conditions encountered in automotive, industrial, HVAC, and manufacturing applications. The insulation is color-coded to match 22AWG to 16AWG wire sizes, facilitating fast and accurate wire selection for users.

Applications include repairs, extension, or changes to existing wiring, commonly found in automotive systems, industrial control equipment, electrical appliances, and commercial installations. These connectors are compatible with various ratchet crimping tools designed for insulated terminals, providing consistent and reliable crimps.

Tin plated copper tube for corrosion resistance and optimal conductivity. Polyvinyl chloride red insulation for electrical safety and wire size coding. Crimp termination type ensures secure mechanical and electrical connection.

Compact overall length and diameter suitable for constrained installations. Wide working temperature range from -20°C to +105°C. Suitable for wire sizes from 22AWG to 16AWG (0.5 to 1.5 mm²). Widely used in automotive, industrial, and commercial electrical wiring.

Compatible with standard ratchet crimping tools for ease of use.

Choose RS PRO Splice Connectors for dependable, industrial-grade wire splicing solutions with proven performance and ease of installation. Explore further RS PRO electrical components for comprehensive wiring and connectivity needs at EnvMart.
