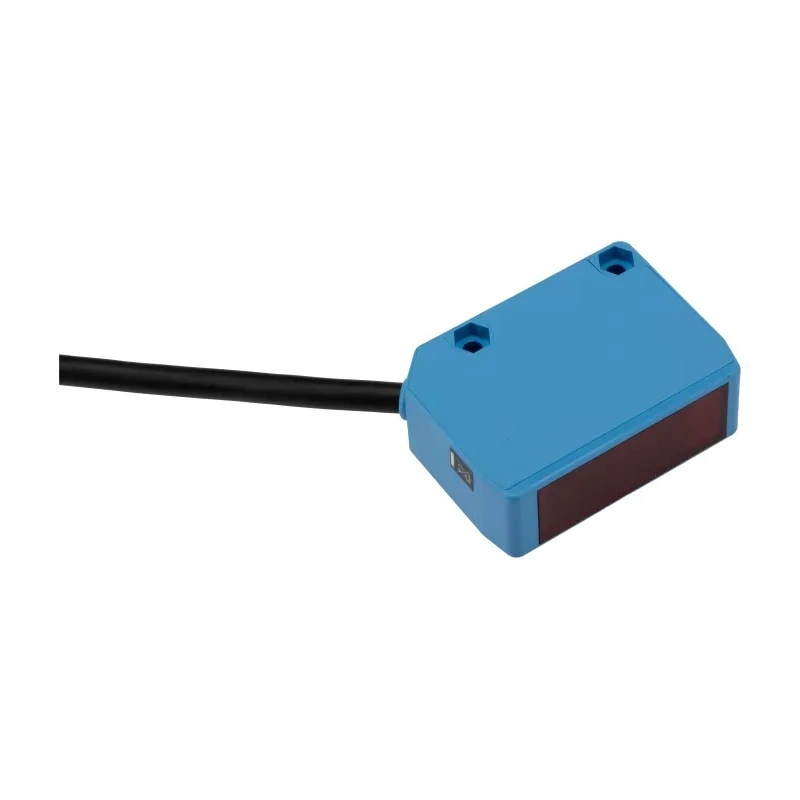

SICK Retroreflective Photoelectric Sensor Block Style, 12 m Detection Range, Relay Output, IP67, WL250-2R1631
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Response time | 15ms |
| Light Source | LED |
| Detection range | 12 m |
| Model | WL250-2R1631 |
| IP Rating | IP67 |
| Housing Material | ABS, Plastic |
| Output type | Relay |
| Series | W250-2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| DetectIon Type | Retroreflective |
| Maximum dc Voltage | 240V dc |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Block |
Key Features
- Offers a maximum AC/DC voltage rating of 240V for versatile power input options.
- Equipped with an LED light source for clear indication and alignment.
- Operating temperature range from -25°C to 55°C ensures reliable performance in varied environments.
- Features a response time of 15 milliseconds for swift detection.
- Constructed with durable ABS plastic housing for robust use.
- Includes a mounting bracket made of stainless steel for secure installation.
- Light/dark switching selectable via control cable simplifies configuration.
- Relay output capable of handling maximum current of 3A.
Product Description
The SICK WL250-2R1631 is a retroreflective photoelectric sensor of block style design offering a detection range of 12 meters and relay output. It is designed with a compact housing integrating both DC and AC/DC voltage variants, suitable for flexible system integration.
This sensor features a bright red LED light source known as BrightLight for easy alignment and positioning. Sensitivity and sensing distance can be adjusted via a potentiometer with a clear positioning indicator. Light/dark switching capability through a control cable reduces the need for multiple device variants, streamlining inventory.
The sensor operates reliably within a temperature range of -25°C to 55°C and provides a fast response time of 15 ms. The housing is made of ABS plastic, designed for industrial durability, and the product carries an IP67 rating ensuring protection against dust and water ingress.

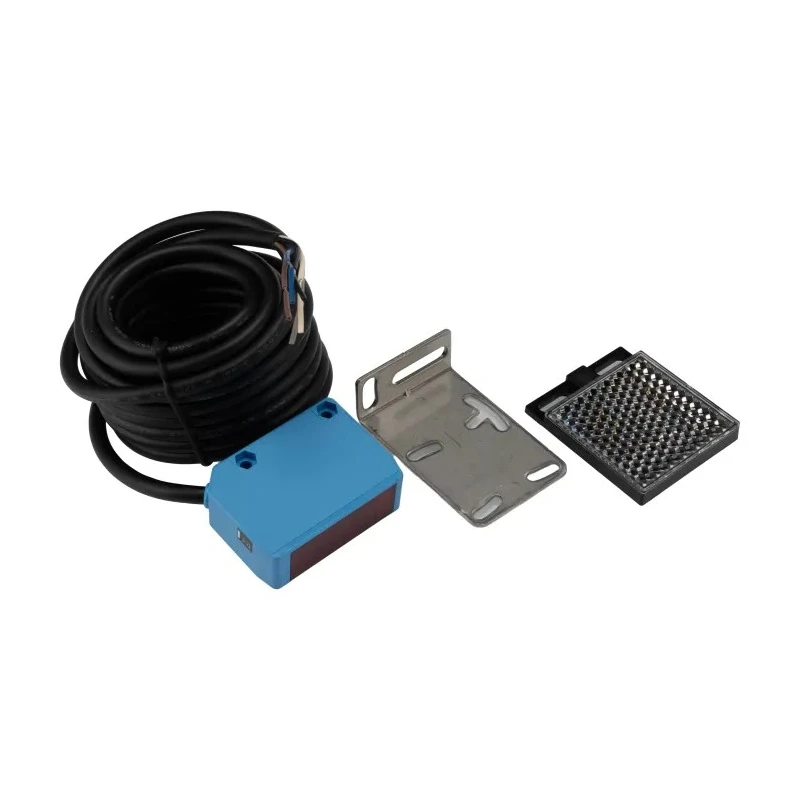

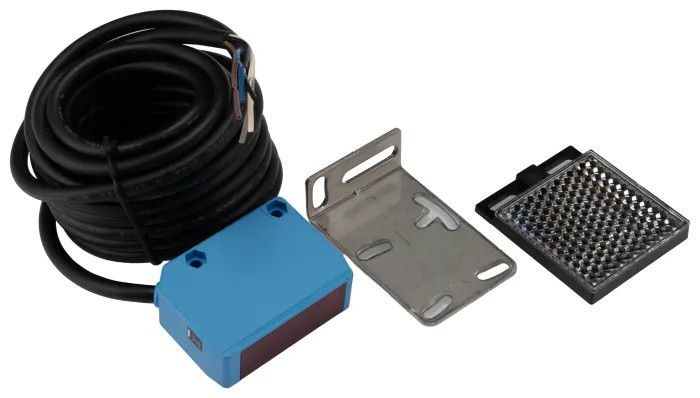

Included with the sensor is a BEF-W250 stainless steel mounting bracket (material 1.4301) that facilitates installation. Electrical characteristics accommodate a maximum AC/DC voltage of 240V and a maximum current of 3A, enabling operation within a wide range of industrial applications.
This sensor is compliant with standards EN 60947-1 and EN 60947-5-2, ensuring quality and safety. It does not have hazardous area certification. Maximum AC/DC voltage of 240V for versatile electrical compatibility. Durable ABS plastic housing with IP67 protection rating.
12 meters detection range with retroreflective sensing type. BrightLight LED facilitates easy sensor alignment. Light/dark switching available via control cable. Includes stainless steel BEF-W250 mounting bracket for ease of installation.
Relay output supports up to 3A current. Complies with EN 60947-1 and EN 60947-5-2 standards.
This sensor is ideal for industrial automation, manufacturing, material handling, and process control environments requiring reliable detection and compact sensor design. It is suitable for applications needing both AC and DC power supply configurations in a single device.
Explore the Sensors category at EnvMart for a wide range of Photoelectric Sensors and related automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 12 meters.
The response time of this model is 15 milliseconds.
This sensor has an IP67 rating, providing protection against dust and water ingress.
The sensor features a relay output type capable of handling a maximum current of 3A.
It operates reliably within a temperature range of -25°C to 55°C.
The housing is made of durable ABS plastic.
Yes, it includes a stainless steel mounting bracket (BEF-W250) for secure installation.
It is equipped with a bright red LED light source known as BrightLight for easy alignment.
Yes, it can operate with a maximum AC/DC voltage of 240V.
The detection type for this model is retroreflective.
It complies with the EN 60947-1 and EN 60947-5-2 standards.
Light/dark switching is selectable via a control cable, simplifying configuration.
