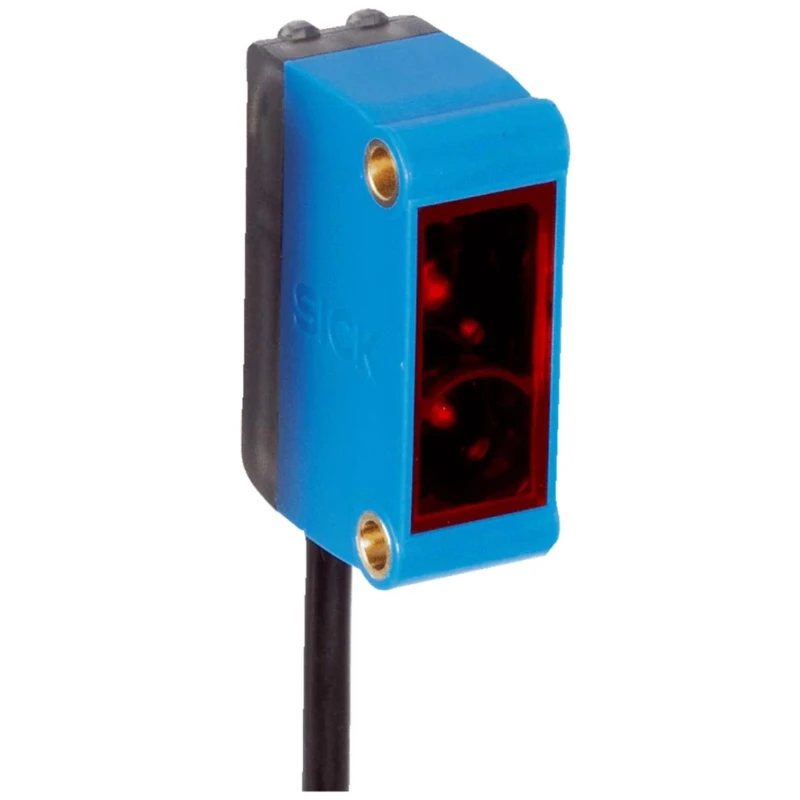

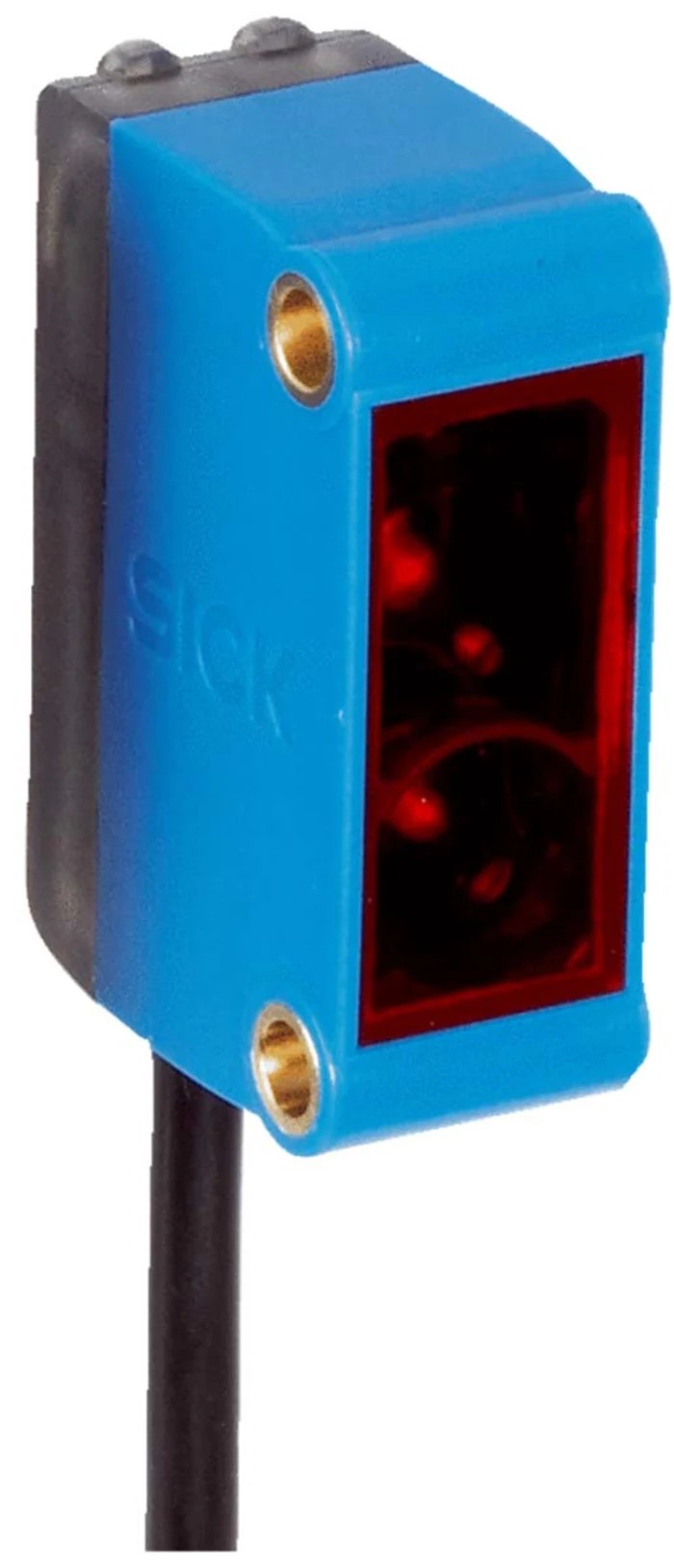

SICK Retroreflective Photoelectric Sensor Block Sensor 6 m Detection Range NPN Output IP67 GL6-N1112
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Response time | 650μs |
| Light Source | Pin Point LED |
| Detection range | 6 m |
| Model | GL6-N1112 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Plastic |
| Output type | NPN |
| Series | G6 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 3-Pin Connector |
| Interface Type | 3 Wire |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | UL File No. NRKH.E348498 & NRKH7.E348498 |
| Sensor Style | Block |
Key Features
- Equipped with PinPoint LED for an accurate and bright light spot.
- Durable plastic housing with metal threaded inserts ensures reliable mounting.
- User-friendly potentiometer allows easy adjustment of sensitivity.
- Large, bright indicator LEDs provide clear status monitoring.
- Operates within a temperature range of -25°C to 55°C.
- IP67 rated enclosure protects against dust and water ingress.
- Supports 3-Pin connector interface with a maximum DC voltage of 30V.
- Maximum current rating is 100 mA for safe electrical operation.
Product Description
SICK GL6-N1112 Retroreflective Photoelectric Sensor is a high-performance block sensor designed for precise object detection over a 6 meter range. Featuring an NPN output type and IP67 rated plastic housing, it is optimized for challenging industrial environments requiring reliable and durable sensors.
The sensor incorporates a bright PinPoint LED light source that enables accurate targeting and detection. Its rugged design includes metal threaded inserts for easy panel mounting, while large potentiometers and indicator LEDs allow straightforward adjustment and clear visual status feedback.
Operating reliably over a temperature range of -25°C to 55°C, this sensor supports up to 30V DC maximum voltage and a current rating of 100 mA, making it suitable for varied electrical setups. The integrated SICK ASIC technology enhances sensitivity, response time, and overall sensor reliability.
Common applications include component detection in robotic grippers, conveyor line transport control, access protection systems, package protrusion monitoring, automated barcode identification on totes, and level monitoring in chutes. Its robust IP67 protection ensures resistance against dust and water, suitable for industrial manufacturing, automation, material handling, and logistics environments.
Additional benefits include quick installation using standard SICK accessories, easy alignment due to visible PinPoint LED, and excellent repeatability for consistent process control. The GL6-N1112 model represents SICK's expertise in reliable sensor technology tailored to industrial automation demands.
Equipped with PinPoint LED for an accurate and bright light spot. Durable plastic housing with metal threaded inserts ensures reliable mounting. User-friendly potentiometer allows easy adjustment of sensitivity. Large, bright indicator LEDs provide clear status monitoring.
Operates within a temperature range of -25°C to 55°C. IP67 rated enclosure protects against dust and water ingress. Supports 3-Pin connector interface with a maximum DC voltage of 30V. Maximum current rating is 100 mA for safe electrical operation.
Includes advanced SICK ASIC technology for enhanced sensor performance and reliability. Ideal for industrial automation tasks such as object detection, transport control, and access protection. Discover more sensors and automation solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GL6-N1112 sensor has a detection range of 6 meters.
This model features an NPN output type.
The maximum operating temperature for this sensor is 55°C.
The sensor has an IP67 rating, which protects against dust and water ingress.
The response time of the GL6-N1112 is 650 microseconds.
It supports a 3-pin connector interface.
The maximum DC voltage for this sensor is 30V.
The housing is made of plastic with metal threaded inserts for reliable mounting.
The minimum operating temperature for this sensor is -25°C.
It uses a PinPoint LED light source for accurate targeting and detection.
Common applications include component detection in robotic grippers, conveyor line transport control, and access protection systems.
The maximum current rating for the GL6-N1112 is 100 mA.
