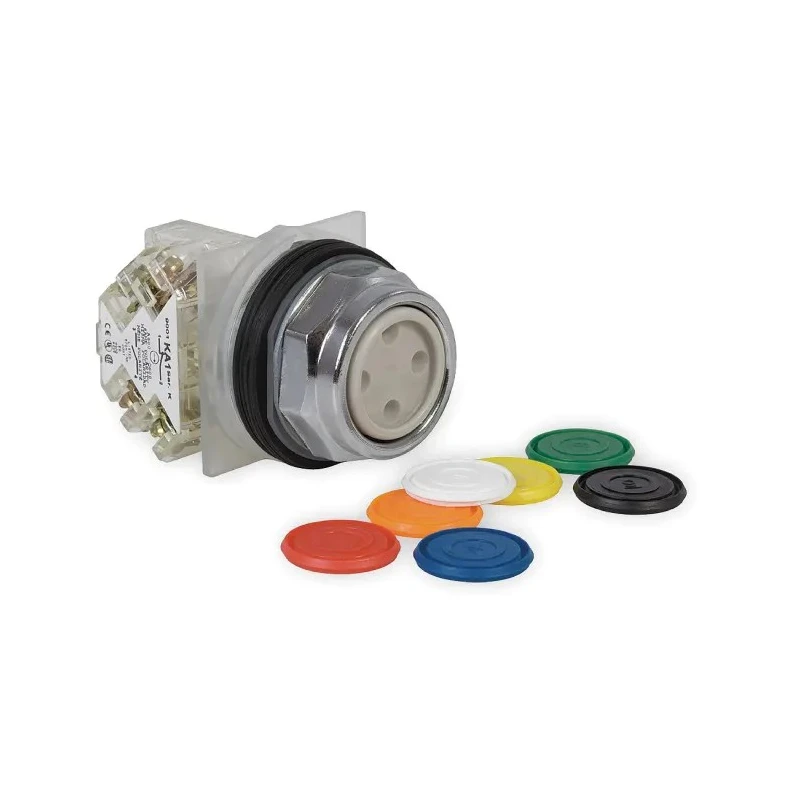

Schneider Electric Harmony 9001K Series Momentary Push Button Switch, SPDT Contact, 30 mm Cutout, IP66, 0.8Nm 9001KR1UH13

Schneider Electric 9001KR1UH13 Harmony 9001K Series momentary Push Button Switch features a robust design with a 30 mm panel cutout and SPDT contact configuration, delivering high reliability and safety for industrial control applications. This switch is engineered for harsh environments, meeting IP66 standards to resist dust ingress and powerful water jets, making it ideal for use in petrochemical, automobile, textile, metallurgy, mining industries, and airport environments.

The actuation mechanism delivers a return-to-original-state function, ensuring precise control and rapid reset. The switch is supplied with seven interchangeable coloured caps - black, blue, green, orange, red, white, and yellow - enabling clear function identification and customization per application needs. The octagonal actuator style and a mechanical lifespan rated at 5 million operations guarantee robustness under continuous use.

This push button is designed for versatile wiring with screw terminal connections, accommodating wire sizes from 0.22 to 1.5 mm². Its operational current rating is 3A, supporting contact voltages of up to 125V DC and 600V AC. Further protection is provided by its ability to withstand impulse voltages of 2.5 kV, enhancing safety against electrical surges.

Operating reliably within temperatures from -25°C to 70°C, the switch resists shock up to 50GN, which confirms its suitability for vibration-intensive environments. The recommended tightening torque for secure installation is 0.8 Nm. This product adheres to stringent international safety and environmental standards, including IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, EN 60947-5-1, JIS C 4520 and 852, UL 508, CSA C22-2 no. 14, as well as compliance with WEEE, EU RoHS, RoHS, and REACH directives.

The switch's flush design minimizes accidental activation risks. Wide range of LED cap colours supports application-specific needs. IP66 protection rating makes the switch suitable for dusty and wet industrial environments.

Shock resistance ensures durability in harsh, vibrating conditions. Spring return mechanism enables momentary control functions. Mechanical durability rated for millions of cycles for long-term use. Applications include medical equipment, doorbell systems, and consumer electronics.

Fit for usage in petrochemical, automobile, textile, metallurgy, mining, and airport environments. Explore the extensive range of Schneider Electric products for industrial automation and control solutions on EnvMart.
