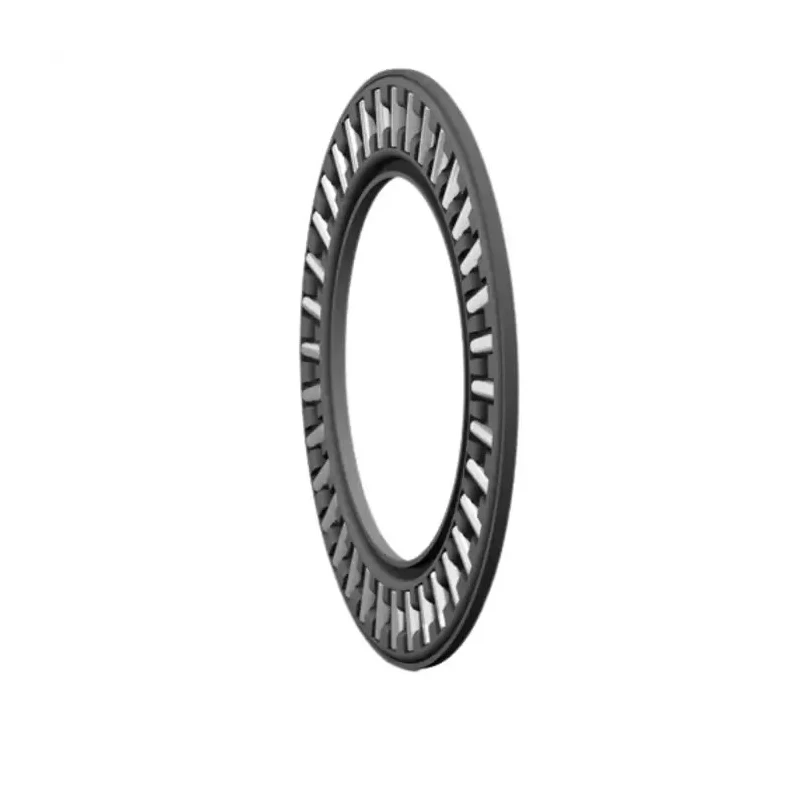

SKF Needle Roller Thrust Bearing 120 mm ID, 155 mm OD, Sheet Steel Cage AXK 120155

The SKF AXK 120155 needle roller thrust bearing features a 120 mm inside diameter and 155 mm outside diameter, designed specifically for axial load applications requiring compact, high-performance bearing solutions.

This bearing employs a sheet steel cage and a single row of needle rollers, allowing it to sustain high axial loads relative to its small cross-sectional area. The race width is just 4 mm, enabling minimal axial space usage in assembly.

It is heat-stabilized to operate reliably up to 120°C, making it suitable for challenging environments such as industrial gearboxes and heavy machinery where heat generation is significant. The lightweight design, at only 130 grams, contributes to easier handling and lower overall load on the equipment.

With a static load rating of 680 kN and a dynamic load rating of 86.5 kN, this bearing ensures robust performance under demanding conditions. It supports rotational speeds up to 2600 rpm limiting speed; however, speed ratings vary depending on lubrication type - 1100 rpm maximum with oil and 800 rpm with grease.

Applications include agricultural machinery, robotics systems, and HVAC components where axial thrust bearing capacity and compact dimensions are essential for efficient operation.

Heat-stabilized for +120°C use in industrial environments. Sheet steel cage provides durability and load support. Compact 4 mm race width ideal for space-constrained assemblies. High static and dynamic load ratings for robust operation.

Suitable for lubrication with oil or grease depending on operational speed requirements. Manufactured to stringent quality standards in Germany. Weight approximately 130 grams for easy handling and installation. Designed for heavy axial load applications in mechanical and fluid power systems.

Recommended for industrial gearboxes, robotics, agriculture, and HVAC systems. Explore EnvMart's comprehensive selection of Roller Bearings suitable for various industrial, laboratory, manufacturing, and heavy equipment needs.
