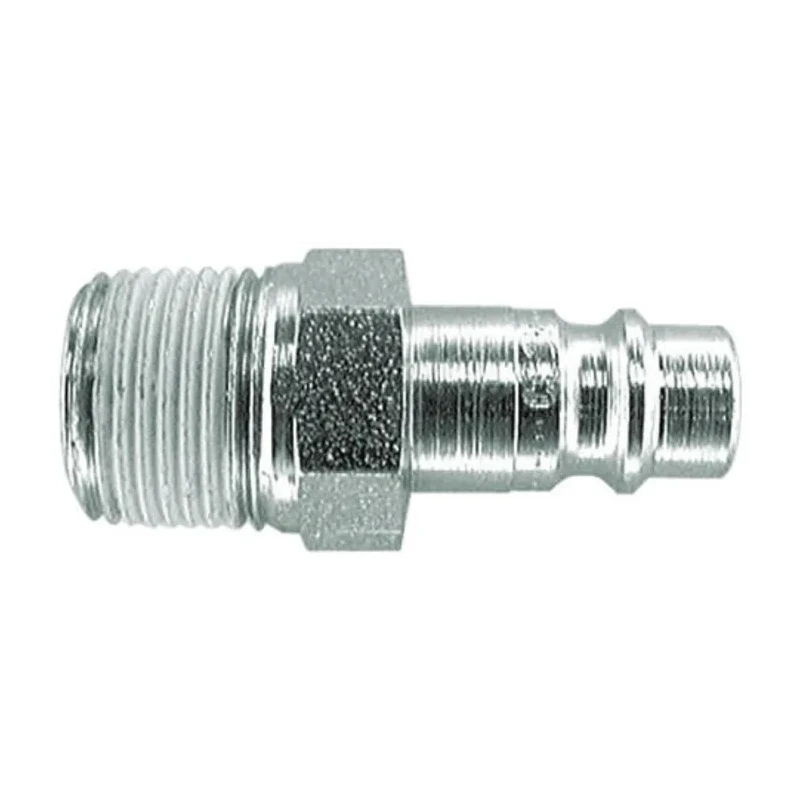

CEJN Steel Pneumatic Quick Connect Coupling 1/2 in Male R Vented Safety 320 Series 16 bar 100°C 103205155
Specifications
| Country of Origin | Sweden |
|---|---|
| Brand | CEJN |
| Material | Steel |
| Maximum Operating Pressure | 16 bar |
| Finish | Zinc Plated |
| Series | 320 |
| Maximum Operating Temperature | 100°C |
| Thread Size | 1/2 in |
| Sub Type | Vented Safety |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 4414EN 983ISO sCEJN Original Euro 7.6 (7.4) |
| Thread Standard | R |
| Thread Gender | Male |
| RS PRO Steel Pneumatic Quick Connect Coupling, 1/2 in Male GBrand | RS PRO |
Key Features
- The coupling features a 1/2 inch male R thread size with vented safety design.
- Constructed of zinc plated steel with NBR seals and brass shut off valves.
- Operates between -20°C to 100°C with a maximum pressure of 16 bar.
- Series 320 provides 7.6 mm nominal flow diameter ensuring efficient air flow up to 2100 l/min.
- Meets ISO 4414 and EN 983 standards for pneumatic safety couplings.
- Two-stage disconnection vents the coupling to minimize risk of sudden separation.
- Easy one-hand operation with long service life and reliable sealing.
- Compatible with Rectus 25/26 fittings and other Euro standard couplings.
Product Description
CEJN 103205155 Steel Pneumatic Quick Connect Coupling, Series 320, is engineered for robust and safe pneumatic system connections with a 1/2 inch Male R vented safety thread. It supports operating temperatures from -20°C to 100°C and withstands a maximum working pressure of 16 bar, making it suitable for demanding industrial pneumatic applications.
This coupling features a zinc plated steel body that provides excellent durability and corrosion resistance. The internal components include NBR seals and brass shut off valves ensuring a leak-proof and reliable operation. A hardened zinc-plated steel sleeve enhances long service life and smooth, easy operation.
The vented safety design allows a two-stage disconnection to vent the coupling, significantly reducing the risk of sudden and dangerous separation, thus protecting operators in industrial environments. It is certified to meet ISO 4414 and EN 983 standards, confirming compliance with strict pneumatic safety requirements.
The nominal flow diameter of 7.6 mm yields a high flow capacity of up to 2100 l/min, facilitating efficient airflow in pneumatic circuits. This model is compatible and interchangeable with Rectus 25/26 and other Euro standard couplings.
Ideal for industrial, manufacturing, construction, and fluid power tool applications, this coupling delivers secure and effortless pneumatic connections. The zinc plating finish offers extended protection against wear and external environmental factors.
The coupling has a 1/2 inch male R thread with vented safety two-stage disconnection. Constructed from durable zinc plated steel with brass valves and NBR seals. Operates safely from -20°C to 100°C with a maximum pressure rating of 16 bar.
Conforms to ISO 4414 and EN 983 standards for pneumatic safety components. Enables high flow with a 7.6 mm nominal flow diameter and up to 2100 l/min capacity. Provides long service life with hardened steel sleeves and corrosion resistance.
Designed for quick and easy one-hand operation and safe disconnection. Explore the range of CEJN pneumatic fittings and quick connect couplings at EnvMart for industrial-grade, reliable fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this coupling is 16 bar.
It features a 1/2 inch male R thread size.
This model operates safely within a temperature range of -20°C to 100°C.
The nominal flow diameter is 7.6 mm, allowing for a flow capacity of up to 2100 l/min.
It meets ISO 4414 and EN 983 standards for pneumatic safety couplings.
The coupling is constructed from zinc plated steel with NBR seals and brass shut off valves.
The vented safety design allows for a two-stage disconnection that vents the coupling, reducing the risk of sudden separation.
It supports easy one-hand operation for quick and efficient connections.
Yes, it is compatible with Rectus 25/26 fittings and other Euro standard couplings.
The coupling has a zinc plated finish, providing protection against corrosion.
The country of origin for this coupling is Sweden.
This coupling is classified as a vented safety type.
