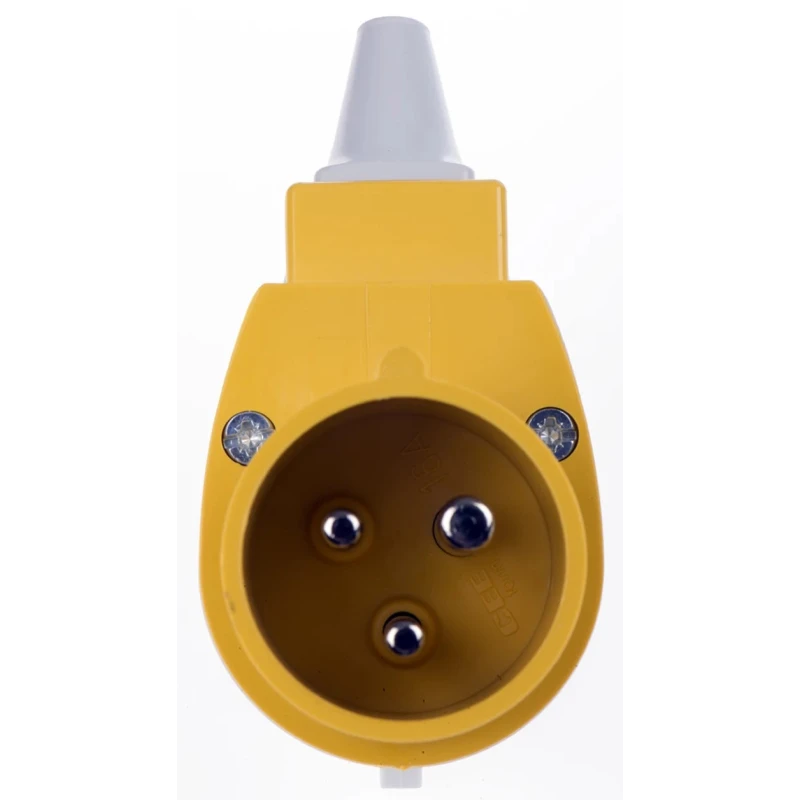

MENNEKES Yellow Industrial Power Connector Cable Mount 3P 16A 110V IP44 Straight Orientation IP44

MENNEKES IP44 Yellow Industrial Power Connector model IP44 is a robust cable mount 3-pole (3P) straight connector rated at 16A and 110V, designed for reliable industrial power distribution needs.

This connector features an ingress protection rating of IP44, making it resistant to water splashes and dust ingress, suitable for industrial environments requiring durable and safe connections.

The outer casing and internal components are made from Amaplast (nylon 6), providing excellent mechanical and electrical insulation performance between -25°C and +55°C operating temperatures.

Its design includes brass contact tubes and pins ensuring superior electrical conductivity and mechanical durability. To prevent mismating, the earth contact position varies relative to the safety key way for each voltage and the product is color coded yellow for voltage identification.

The connector can accept cables with conductors up to 2.5 mm² and maximum outer cable diameter of 17.35 mm, featuring large area terminals and screw termination type providing secure and reliable connections.

Additional features include an external conical cable grommet which allows water to run off the back of the plug and separate internal strain relief, enhancing cable protection and durability during industrial usage.

The MENNEKES AM-TOP IP44 connectors conform to current British and European industrial standards, being type-tested to VDE, ensuring quality and safety for electrical installations.

This connector is widely used in industrial, manufacturing, and commercial electrical setups requiring durable, safe, and high-quality power connection solutions. Explore a wide range of Industrial Power Connectors on EnvMart to find compatible components for your electrical system requirements.

This connector supports a current rating of 16 amperes for industrial applications. Designed with a 3-pole (3P) contact format suitable for power distribution. Its durable yellow housing provides color-coded voltage identification and ease of installation.

Features a straight cable mount orientation with screw termination for secure conductors connection. Equipped with large area terminals accepting conductors up to 2.5 mm² cross-sectional area. Constructed from robust Amaplast nylon 6 ensuring mechanical strength from -25°C to +55°C operating temperatures.

Contact pins and tubes are brass for optimal electrical conductivity and corrosion resistance. Complies with British and European standards, type-tested to VDE specifications. Includes an external conical cable grommet preventing water ingress by channeling water off the plug.

Maximum cable diameter accommodated is 17.35 mm, with separate internal strain relief for cable protection.
