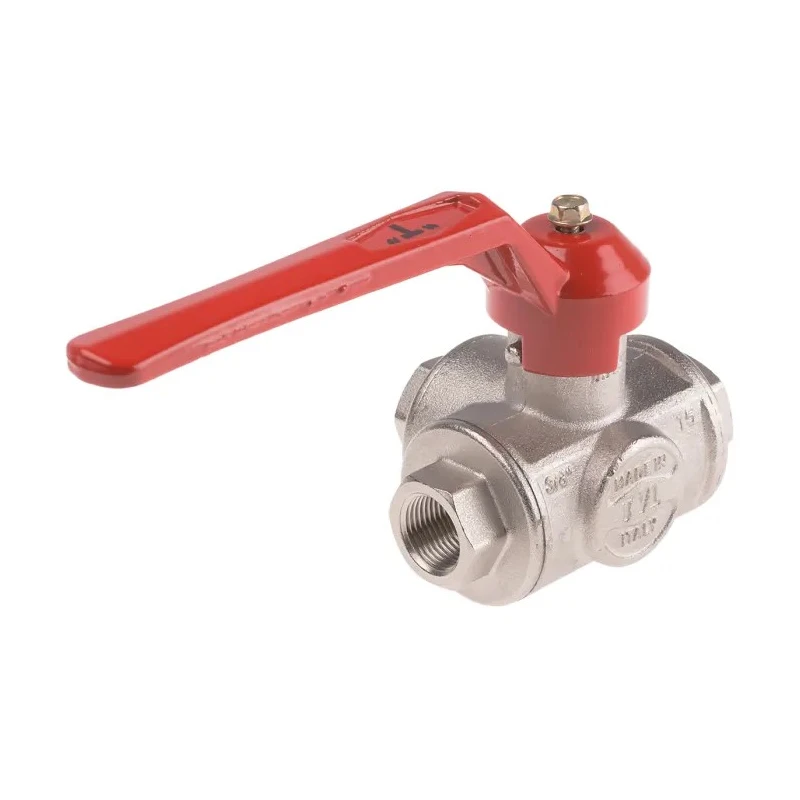

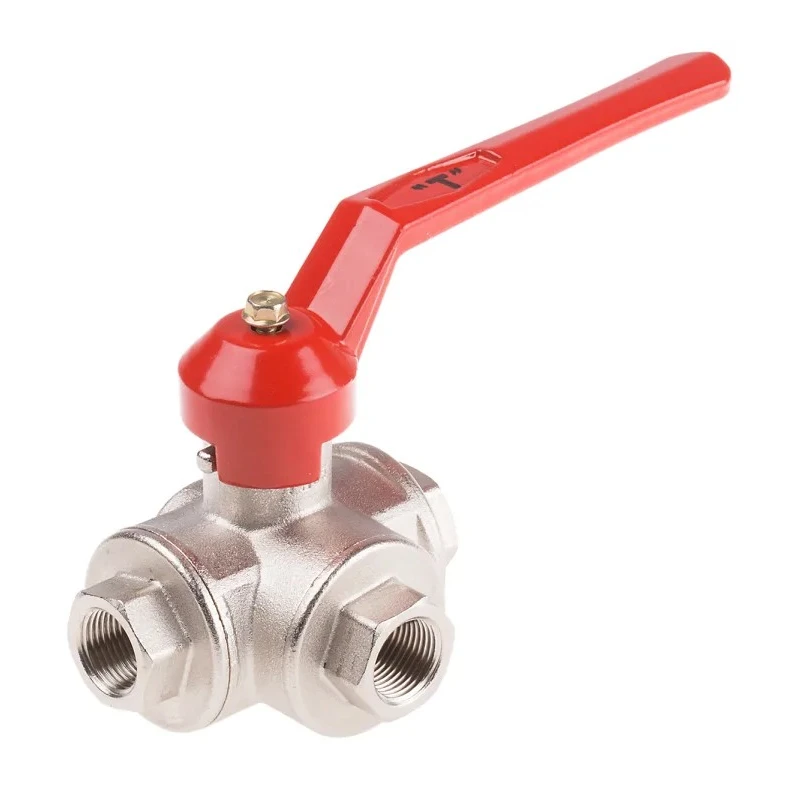

RS PRO Brass Threaded Ball Valve BSPP 40 bar, Aluminium Handle, 2 in Inlet Port, 3/8 in Outlet Port 486-255

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Brass Threaded Ball Valve BSPP 40 bar, Aluminium Handle, 2 in Inlet Port, 3/8 in Outlet Port 486-255

Name: RS PRO Brass Threaded Ball Valve BSPP 40 bar, Aluminium Handle, 2 in Inlet Port, 3/8 in Outlet Port 486-255
Brand: RS PRO
SKU: 162629
Price: 68.99 USD
Availability: InStock



Category Ball Valve Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Body Material	Brass
Maximum Operating Pressure	40 bar
Outlet Connection Type	Threaded
Model	486-255
Operating Pressure	see non-shock cold working pressure chart on data sheet
Handle Material	Aluminium
Valve Type	Ball
Series	RS PRO
Port	reduced
Threads	ISO 228 parallel female threads
Inlet Port Size	2 in
Inlet Thread Standard	BSPP
Outlet Port Size	3/8 in
Connections options	female
Stem Configuration	Blowout-proof nickel plated brass stem, with two NBR O-rings at the stem
Ball seats	Pure PTFE self-lubricating

Key Features

The valve body is made of high-quality brass for durability.
The ball is chrome plated brass ensuring long service life.
Operates with a maximum pressure of 40 bar under standard working conditions.
Features a nickel plated blowout-proof stem with two NBR O-rings for reliability.
Includes pure PTFE self-lubricating ball seats for smooth sealing.
Applicable for oil, air, water, saturated steam, and high-temperature hot water services.
Certified RoHS compliant and manufactured according to EN 12165 and EN 12164 brass standards.
Threaded inlet and outlet ports adhere to ISO 228 BSPP parallel female thread standards.

Product Description

RS PRO 486-255 is a high-quality brass threaded Ball Valve with BSPP standard threaded inlet and outlet connections, engineered for industrial, commercial, and domestic fluid control applications. Rated for a maximum operating pressure of 40 bar, this valve is robust enough for oil, air, water, saturated steam, and high-temperature hot water services.

The valve features a sturdy brass body manufactured to EN 12165 and EN 12164 standards, with a chrome plated brass ball that ensures durability and provides a longer service life. The blowout-proof nickel plated brass stem is equipped with two NBR O-rings providing excellent sealing performance and safety during operations.

Its ball seats are made of pure PTFE, delivering self-lubrication and reliable sealing, while the aluminium handle provides convenient quarter-turn operation to control fluid flow effectively.

Threaded connections follow ISO 228 parallel female BSPP standards and the valve ports have reduced bore configuration, supporting smooth flow control. The valve operates reliably within an operating temperature range of -10°C to +120°C.

Robust brass body offers resistance to corrosion and mechanical wear. Chrome plated brass ball improves wear resistance and durability. Quarter-turn aluminium handle ensures easy and precise operation. Blowout-proof nickel plated stem increases valve safety and longevity.

Pure PTFE ball seats provide low friction self-lubrication sealing. Suitable for a broad spectrum of fluids including oil, water, air, and steam. Manufactured in Italy maintaining high-quality standards. Meets RoHS compliance requirements ensuring environmental safety.

This valve is ideally suited for use in industrial plants, HVAC systems, water treatment, and pneumatic or hydraulic assemblies where high reliability and precise control are critical.
