Medical Inclined Microscope - Led Lamp

Name: Medical Inclined Microscope - Led Lamp
Brand: Geomatrix
SKU: AAXZH
Price: 32.22 USD
Availability: InStock



SKU AAXZH Category Microscopes Brand Geomatrix Condition New

Specifications

Model	VM-16
Packaging	Supplied in styrofoam case.
Optional Accessories	Wooden carrying case\| WF Eyepiece 15x\| LED Illuminator - variable intensity control battery operated.
Safety Device	Adjustable down stopper for preventing accidental damage to slides.
Condenser	Moveable Sub-stage abbe condenser N.A. 1.25 with iris diaphragm and filter holder on rack and pinion movement.
Illumination	Plano-concave mirror diameter 50mm mounted on a gimbal.
Magnification	100x to 1500x.
Objectives	Geooptics Series Parfocaled Coated Achromatic objectives10x & 40x(s) Anti-fungal & Anti-reflection coated.
Focusing	Separate coarse & fine focusing knobs. Coarse movement by rack & pinion and fine movement by screw lever mechanism.
Nosepiece	Triple revolving nose piece is provided with positive click stops for proper centering.
Eyepieces	Widefield 10x \| (optional)Huygenian 15x.
Observation	Monocularrotatable head 360\|inclined at 45 degree for easy viewing.
Stand Metal	Metal die-cast stand with heavy base for enhanced stability & Special rubber feet at microscope base for positive grip.
Stage Fixed	Fixed plain stage 120x120 mm with detachable graduated mechanical stage.

Key Features

Easy installation
High performance

Product Description

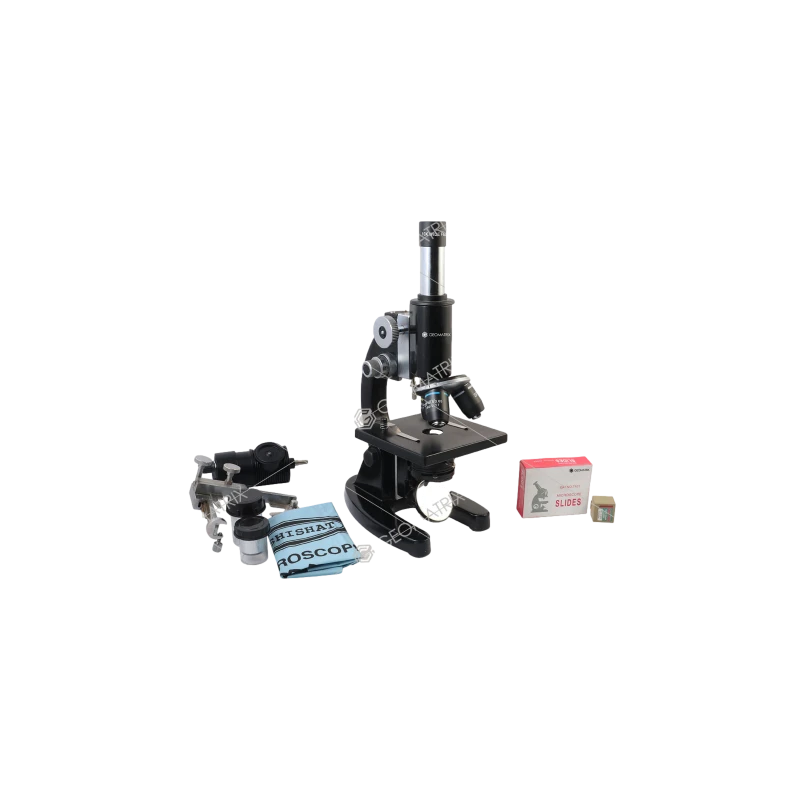

Medical Inclined Microscope - Led Lamp Monocular inclined head 45 degrees & 360 rotatable Coated Achromatic Objectives 10x , 40x (s)& 100x (s)Eyepiece WF 10x & H15xA detachable Mechanical stage microscope is an instrument that is used to magnify small objects. Some microscopes can even be used to observe an object at the cellular level, allowing scientists to see the shape of a cell, its nucleus, mitochondria, and other organelles

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The magnification range of this model is from 100x to 1500x.

It features a plano-concave mirror with a diameter of 50mm, mounted on a gimbal for illumination.

This unit includes Geooptics Series Parfocaled Coated Achromatic objectives of 10x and 40x, which are anti-fungal and anti-reflection coated.

The microscope features a monocular rotatable head that is inclined at 45 degrees, allowing for easy viewing.

The fixed plain stage measures 120x120 mm and includes a detachable graduated mechanical stage.

It has a metal die-cast stand with a heavy base for enhanced stability, along with special rubber feet for a positive grip.

This microscope includes an adjustable down stopper to prevent accidental damage to slides.

Optional accessories include a wooden carrying case, a WF eyepiece 15x, and an LED illuminator with variable intensity control that is battery operated.

It is equipped with a triple revolving nosepiece that features positive click stops for proper centering.

The microscope features a moveable sub-stage Abbe condenser with a numerical aperture of 1.25, equipped with an iris diaphragm and filter holder on rack and pinion movement.

It is supplied in a styrofoam case for protection during transport and storage.
