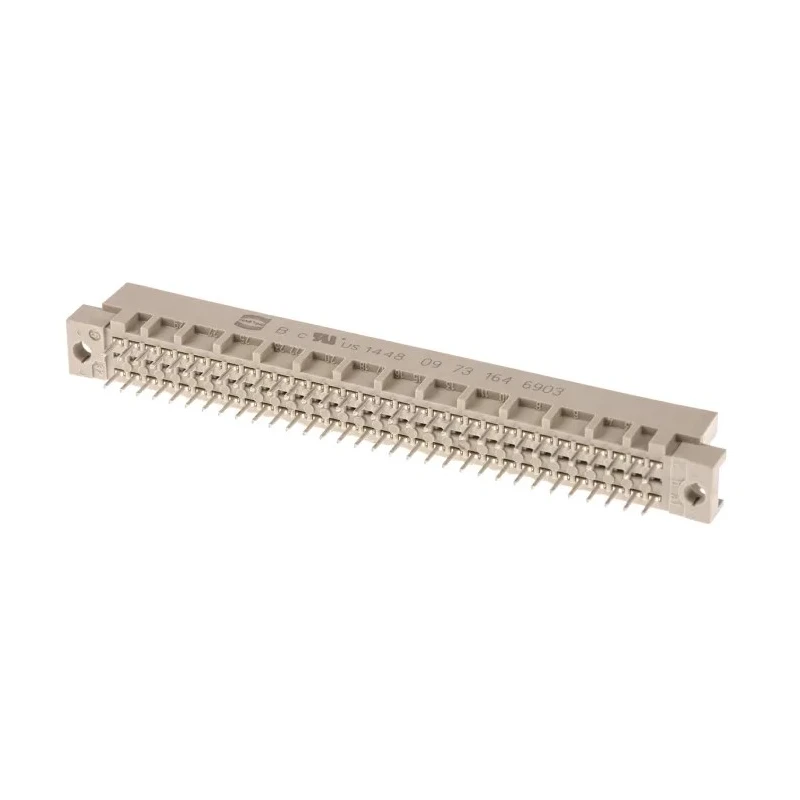

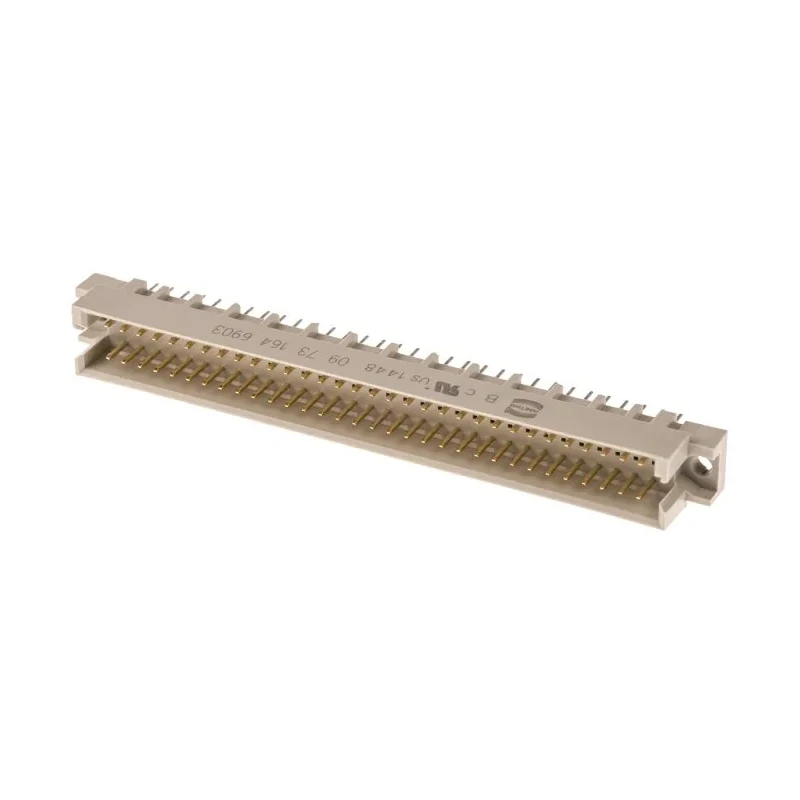

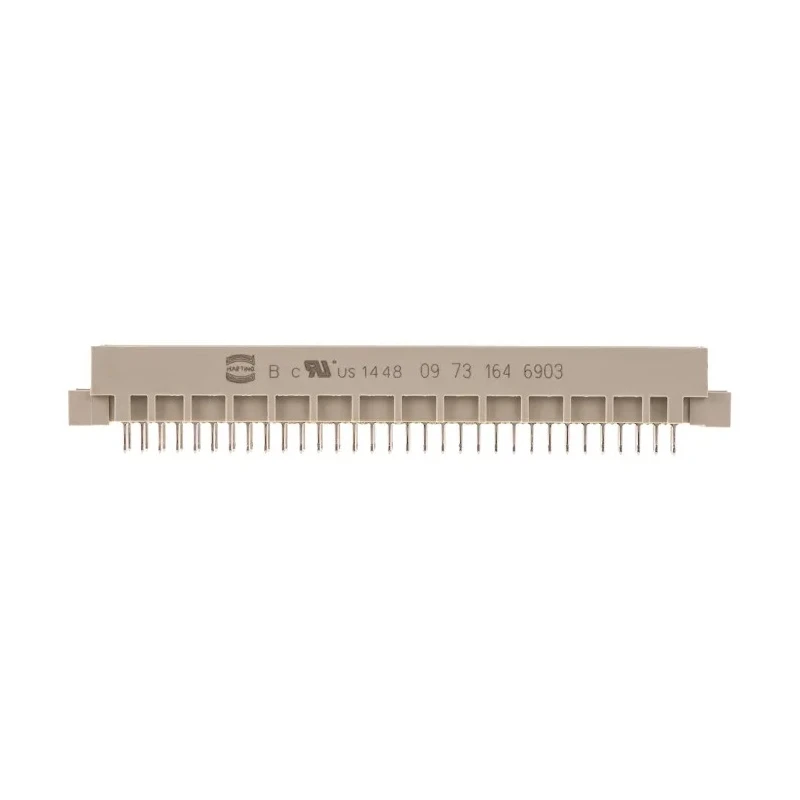

HARTING DIN 41612 64 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 2 Row Male Straight 09731646903
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- This connector features a pitch of 2.54 mm ensuring precise spacing between contacts.
- Type C/2 configuration with class C2 solder termination allows secure and stable mounting.
- The male straight orientation enables straightforward integration into through hole mounting assemblies.
- Constructed with copper alloy contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
- Operating temperature ranges from -55°C to 125°C, suitable for diverse industrial environments.
- Housing made of durable polybutylene terephthalate ensures mechanical robustness.
- Rated for a current of 2 amperes per contact to support moderate electrical loads.
- Maximum contact resistance is 20 milliohms, minimizing electrical loss.
Product Description
HARTING 09731646903 DIN 41612 connector is a 64-way, 2-row male straight connector with a pitch of 2.54 mm designed for through hole mounting. This connector follows the widely adopted DIN 41612 standard, making it ideal for use in electronic components, power connectors, and backplane rack systems.
The Type C/2 sub-type with class C2 solder termination ensures reliable solder joints, supporting industrial assembly processes. The copper alloy contacts plated with gold over nickel offer long-lasting electrical performance and robust corrosion resistance, critical for demanding electrical applications.
The housing is manufactured from polybutylene terephthalate, providing excellent mechanical strength and electrical insulation. The connector operates reliably within a wide temperature range from -55°C to 125°C, suitable for HVAC, laboratory instrumentation, telecommunications, manufacturing, and other industrial environments.
This product supports a current rating of 2A per contact with a maximum contact resistance of 20 milliohms, ensuring efficient signal and power transmission. Its straight male connector design and through hole mount type facilitate easy installation on printed circuit boards and equipment backplanes.
HARTING DIN 41612 Connectors are compatible with all 19-inch Eurocard racking systems, favored for electronic and power distribution applications. Produced in Switzerland, this connector stands for precision engineering and quality materials.
This connector features a pitch of 2.54 mm ensuring precise contact spacing. Type C/2 configuration with solder class C2 termination for secure mounting. Male straight orientation suitable for through hole PCB mounting. Copper alloy contacts plated with gold over nickel for enhanced conductivity.
Operating temperature range from -55°C up to 125°C. 2A current rating per contact with low contact resistance of 20 mΩ. Durable housing material made from polybutylene terephthalate. Compliance with DIN 41612 series standard for backplane connectors.
Manufactured in Switzerland ensuring consistent quality and reliability. Suitable for industrial, laboratory, electrical and communication equipment. Explore the extensive range of high-quality DIN connectors by HARTING at EnvMart for your electronic and industrial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a pitch of 2.54 mm, ensuring precise spacing between contacts.
It has a current rating of 2 amperes per contact, suitable for moderate electrical loads.
This model uses a Type C/2 configuration with class C2 solder termination for secure mounting.
The housing is constructed from polybutylene terephthalate, providing mechanical strength and electrical insulation.
It has a total of 64 contacts, arranged in 2 rows.
The maximum contact resistance is 20 milliohms, which helps minimize electrical loss.
Yes, this connector is designed for through hole mounting, facilitating easy installation on printed circuit boards.
The contacts are made from copper alloy and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
This connector is suitable for applications in HVAC, laboratory instrumentation, telecommunications, and manufacturing.
It is manufactured in Switzerland, ensuring consistent quality and reliability.
The connector has a male straight orientation, which is ideal for straightforward integration into mounting assemblies.
