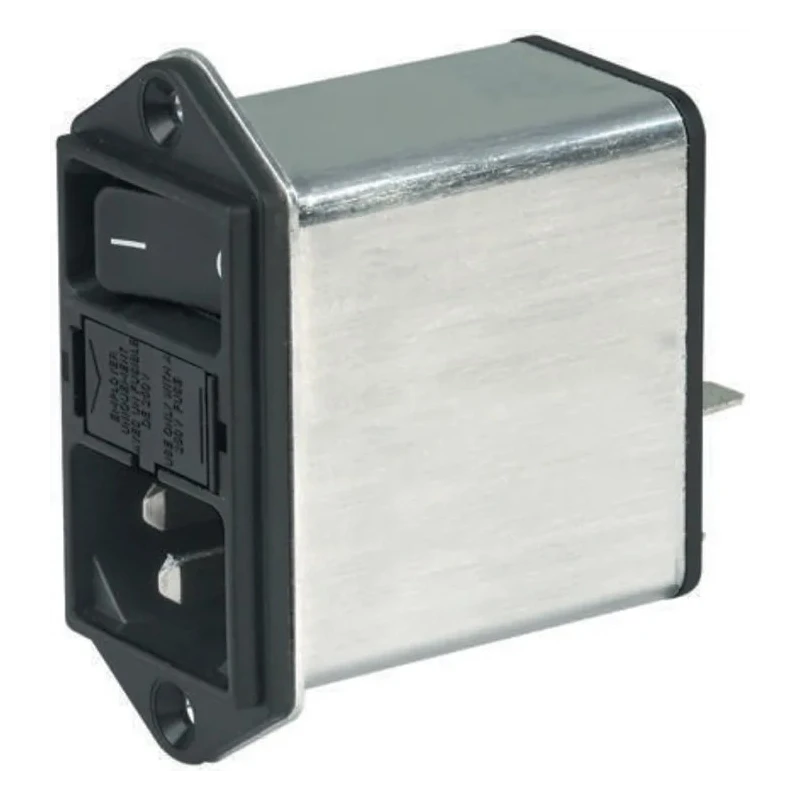

Schurter 250V ac 6A Panel Mount IEC Connector Male Quick Connect DD12.6121.111

Schurter DD12.6121.111 is a high-quality 250V ac, 6A panel mount IEC connector male featuring quick connect termination designed for industrial, medical, and standard power applications requiring reliable and compact connector solutions. The DD12 series offers an ultra compact design with a robust aluminum case that provides superior electromagnetic shielding, making it suitable for environments with high transient loads.

This panel mount IEC inlet plug is secured by screws from the front side and is equipped with quick connect terminals measuring 6.3x0.8mm for fast and secure wiring. The connector accommodates Ø5x20mm fuses via a fuse drawer which complies with IEC/EN 60601-1 medical safety standards; note that the fuse drawer must be ordered separately.

Operating within a wide temperature range of -25°C to 85°C and at a frequency of 60Hz, this compliant IEC C14 connector is designed to meet demanding industrial and medical equipment requirements. Its panel mount configuration simplifies integration into equipment housings.

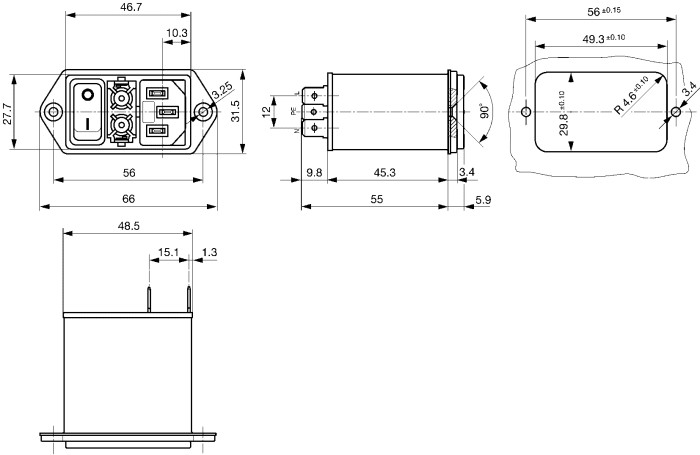

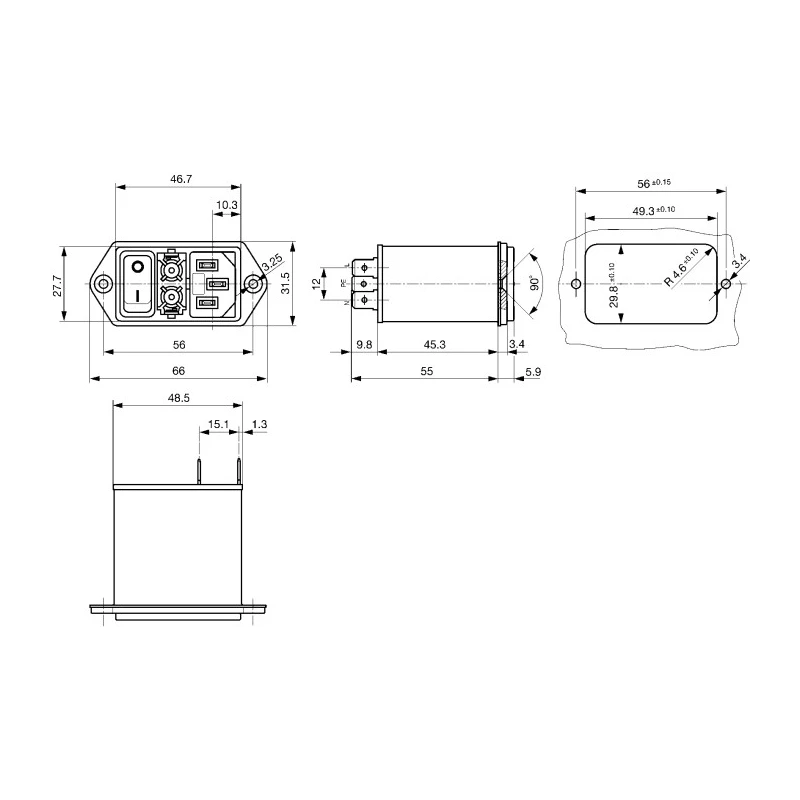

The connector features male contacts with a C14 form factor, measuring 31.5mm in height, 66mm in width, and 60.9mm in depth, ensuring a compact footprint for space-constrained applications. It has no standards/approval markings beyond its medical fuse drawer compliance, but its design adheres to recognized industrial norms.

Compact aluminum case offers efficient shielding against electromagnetic interference. Panel mount type with front-side screw fixation ensures secure mounting. Quick connect terminals sized 6.3x0.8mm allow for rapid installation.

Compatible with Ø5x20mm fuses via a separate fuse drawer compliant to IEC/EN 60601-1. Rated for 6A current and 250V ac voltage at 60Hz operation frequency. Suitable for industrial, laboratory, medical, and electronic equipment power connection.

Male gender connector with IEC C14 type interface. Wide operating temperature range from -25°C to 85°C ensures durability in harsh environments. Dimensions: Height 31.5mm, Width 66mm, Depth 60.9mm for compact installation.

Schurter offers a reliable lineup of IEC connectors engineered to withstand demanding conditions while providing safety and ease of use. This product is ideal for applications in industrial machinery, medical devices, laboratory instruments, and power distribution systems.

Explore more high-quality power and IEC Connectors in the Schurter product range on EnvMart for your next equipment integration project.
