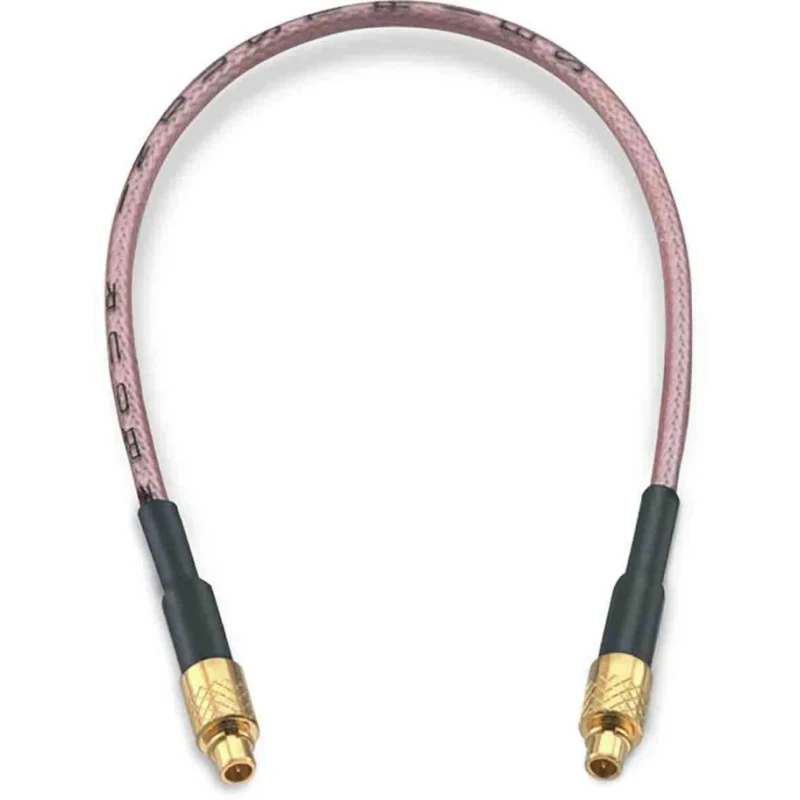

Wurth Elektronik MMCX Series Flexible RG178 Coaxial Cable 152.4 mm Length, 50 Ω, 170 Vrms, Black, Terminated RG178
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | RG178 |
| Cable Length | 152.4mm |
| Series | MMCX |
| Outside diameter | 1.8mm |
| Maximum Operating Temperature | 155°C |
| Conductor Material | Brass |
| Minimum Operating Temperature | -55°C |
| Jacket Material | Polytetrafluoroethylene |
| Attenuation | 0.83 dB |
| Standards/Approvals | IEC, RoHS |
| Characteristic Impedance | 50Ω |
| Jacket Colour | Black |
| Conductor Type | Solid |
| Terminated/Unterminated | Terminated |
| Coaxial Type | RG178 |
Key Features
- The cable has a flexible RG-178/U construction, suitable for frequent movement.
- It features MMCX straight plugs at both ends for easy connectivity.
- The outer diameter is 1.8 mm with a polytetrafluoroethylene jacket material providing durability.
- Operating temperature ranges from -55°C to 155°C, enabling use in harsh environments.
- The conductor is solid brass, ensuring good electrical conductivity.
- The cable supports frequency signals up to 3 GHz with a maximum insertion loss of 0.83 dB.
- Designed with a minimum bend radius of 10.2 mm for flexibility in installation.
- It complies with IEC and RoHS standards, guaranteeing quality and environmental safety.
Product Description
Wurth Elektronik RG178 MMCX Series coaxial cable measuring 152.4 mm in length is a high-performance cable engineered for electronics and electrical applications requiring precise signal integrity. The cable has a characteristic impedance of 50 ohms and a voltage rating of 170 Vrms, making it suitable for RF and communication systems. Its flexible RG-178/U cable construction combined with MMCX straight plug connectors at both ends offers reliable and straightforward connectivity in densely packed installations.
The cable's outer diameter is 1.8 mm, protected by a black polytetrafluoroethylene jacket which provides excellent insulation and mechanical strength. The conductor is made of solid brass, contributing to low signal loss and effective conductivity. This cable performs optimally in temperatures ranging from -55°C up to 155°C, allowing usage in demanding industrial and laboratory settings.
With an attenuation of 0.83 dB maximum and a frequency capability up to 3 GHz, this coaxial cable is ideal for high-frequency data transmission and networking applications. It features a minimum bend radius of 10.2 mm, ensuring installation flexibility without compromising cable longevity.
The product adheres to IEC and RoHS standards, ensuring compliance with industry norms and environmental regulations. This termination variant facilitates immediate use in projects requiring terminated coaxial cables with MMCX connectors.
The cable length is precisely 152.4 mm, enabling compact cable runs. The black polytetrafluoroethylene jacket shields against environmental wear and tear. Solid brass conductors offer superior electrical performance. Operating temperature ratings allow deployment in industrial, laboratory, and telecommunication sectors.
Flexible construction with minimum bend radius enhances usability in complex routing. Compliance with IEC and RoHS certifies quality assurance and environmental safety. Suitable for applications up to 3 GHz frequency for RF and data transmission systems.
Terminated with MMCX straight plugs for easy connector integration.
This product is part of the Coaxial Cable category at EnvMart, supporting various industrial, laboratory, and communication use cases. Explore the wide selection of Wurth Elektronik products and other high-quality Coaxial Cable solutions to meet your technical specifications and project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The characteristic impedance of this coaxial cable is 50 ohms, making it suitable for RF and communication systems.
This model can operate at a maximum temperature of 155°C, allowing it to be used in demanding environments.
It supports frequency signals up to 3 GHz, making it ideal for high-frequency data transmission and networking applications.
The cable features a solid brass conductor and a polytetrafluoroethylene jacket, providing good electrical conductivity and mechanical strength.
The cable measures 152.4 mm in length, suitable for compact installations.
This model has a minimum bend radius of 10.2 mm, allowing for flexibility during installation without compromising performance.
The outer diameter of this coaxial cable is 1.8 mm, which contributes to its flexibility in various applications.
It complies with IEC and RoHS standards, ensuring quality and environmental safety.
This cable is terminated with MMCX straight plugs at both ends for easy connectivity.
The maximum insertion loss is 0.83 dB, which indicates low signal loss during transmission.
The operating temperature range for this coaxial cable is from -55°C to 155°C, making it suitable for various industrial and laboratory settings.
This coaxial cable is manufactured in Taiwan.
