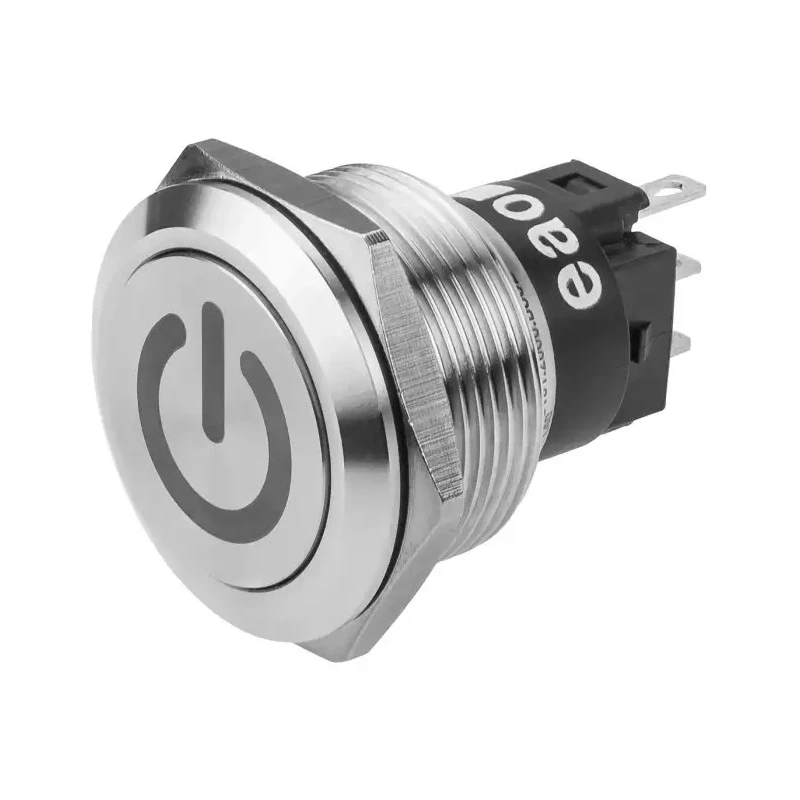

EAO 82 Series Push Button Switch Latching Panel Mount 22.3 mm Cutout SPDT IP65 IP67 240 V dc 240 V ac 82-6151.2000.B002



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
Model	82-6151.2000.B002
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Latching
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	Standby Symbol
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

The switch operates on a latching mechanism, providing reliable control.
Designed without illumination for clear operation in various environments.
Durable panel mount with 22.3 mm cutout size suitable for industrial installations.
IP65 and IP67 rated for superior dust and water resistance.
SPDT contact configuration supports single-pole double-throw switching requirements.
Gold-plated silver contacts deliver low voltage, low current performance.
Capable of 3 A switch contact current for various industrial uses.
Operating temperature range from -30°C to 70°C allows for diverse applications.

Product Description

The EAO 82-6151.2000.B002 push button switch is a robust industrial-grade latching switch designed for panel mounting with a 22.3 mm cutout. It features a single-pole double-throw (SPDT) contact configuration and supports both 240 V dc and 240 V ac, making it adaptable for various electrical control systems. Its rugged construction includes vandal resistance and an impact-resistant design, ensuring reliable operation in harsh environments.

This switch is rated IP65 and IP67 for excellent dust and water ingress protection, suitable for exposed public applications such as ticketing and vending machines, industrial factory machinery, and building management access control systems. It is not illuminated, providing a clear tactile feedback with a round actuator style, engineered for long service life exceeding one million operational cycles.

The contacts are gold-plated silver, providing superior low voltage and low current performance. This product operates efficiently within temperatures ranging from -30°C to 70°C, catering to demanding industrial, medical, food industry, and audio-video equipment environments.

With a compact length of 35.5 mm and a CO switch configuration, it is compatible with multiple mounting and safety standards including CB, CCC, cUL, and UL certifications, further confirming its quality and compliance.

The switch uses a latching mechanism for reliable on/off control. Panel mounting with a 22.3 mm cutout for standardized installation. IP65 and IP67 ratings protect against dust and water ingress. SPDT contact configuration supports diverse circuit requirements.

Gold-plated silver contacts ensure stable electrical performance. Vandal- and impact-resistant for harsh environmental usage. Long operational life exceeding one million cycles provides durability. Wide operating temperature range from -30°C to 70°C.

Applicable across sectors: industrial machinery, public access control, medical, food industry, and audio/video equipment. Meets CB, CCC, cUL, and UL standards for safety and quality assurance.

This EAO push button switch offers industrial reliability and versatility suitable for control systems in industrial automation, building security, and public equipment installations. For more industrial electrical components and switches, explore EnvMart's comprehensive range of Push Button Switches and control hardware.
