STMicroelectronics Sensor Development Tool LSM6DSRX Evaluation Board Adapter Italy

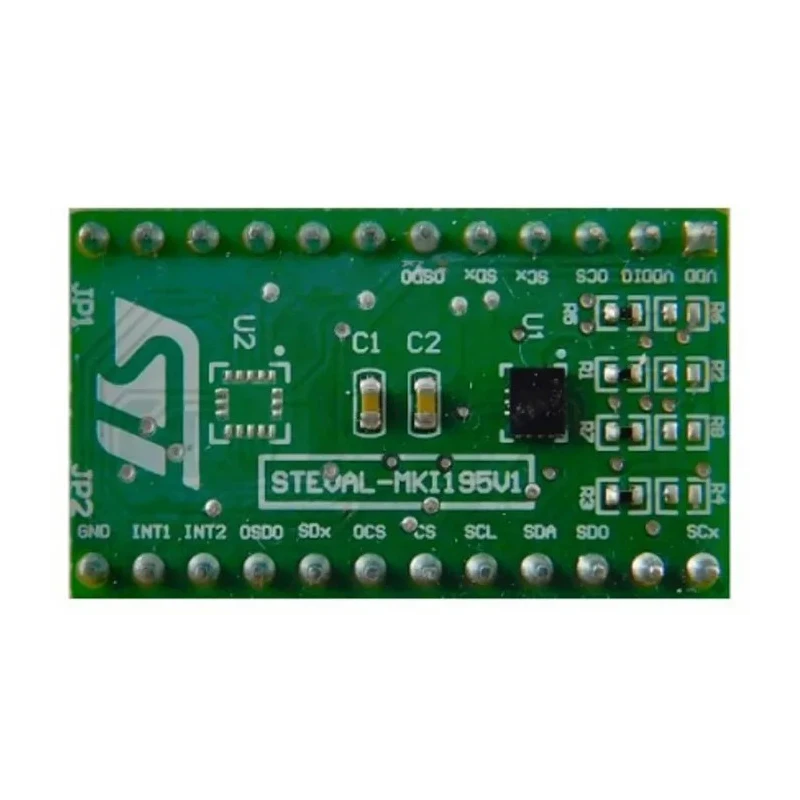

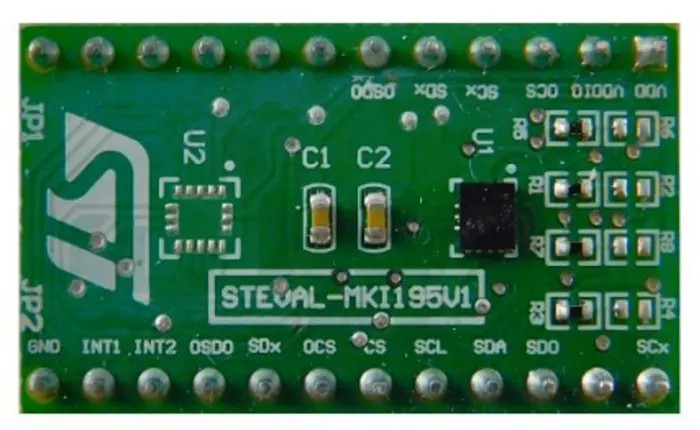

STMicroelectronics STEVAL-MKI195V1 is a dedicated sensor development tool designed as an adapter board facilitating evaluation of MEMS devices in the LSM6DSRX product family. This evaluation board provides the full pinout of the LSM6DSRX sensor in a standard DIL 24 socket footprint, enabling fast prototyping and direct device assessment within end-user applications.

The board includes critical hardware components like required decoupling capacitors on the VDD power supply line, ensuring stable operation. The STEVAL-MKI195V1 can be easily plugged into compatible motherboards such as the STEVAL-MKI109V3, which features a high-performance 32-bit microcontroller acting as a bridge between the sensor and a PC. This facilitates seamless data acquisition and control through a downloadable graphical user interface (Unico GUI) or via dedicated software routines that support customized application development.

This adapter also supports resistor setting changes for compatibility with the STEVAL-MKI109V2 motherboard, expanding its usability in development environments. The evaluation board is RoHS compliant and manufactured in Italy, aligning with industry quality standards.

Compatible with LSM6DSRX MEMS inertial sensors for high precision detection. Standard DIL 24 socket form factor allows straightforward integration. Power supply equipped with necessary decoupling capacitors for signal integrity.

Supported by microcontroller-based STEVAL-MKI109V3 motherboard for PC connectivity. Facilitates software interfacing through graphical user interface and custom routines. Resistor settings adaptable to STEVAL-MKI109V2 V2 motherboard compatibility.

RoHS certified and manufactured in Italy ensuring environmental compliance.

This development tool is suitable for industrial, laboratory, educational, and prototyping applications involving MEMS sensors and inertial measurement units. It provides engineers and system designers with a robust platform to quickly evaluate sensor performance, integrate designs, and develop customized sensing applications.
