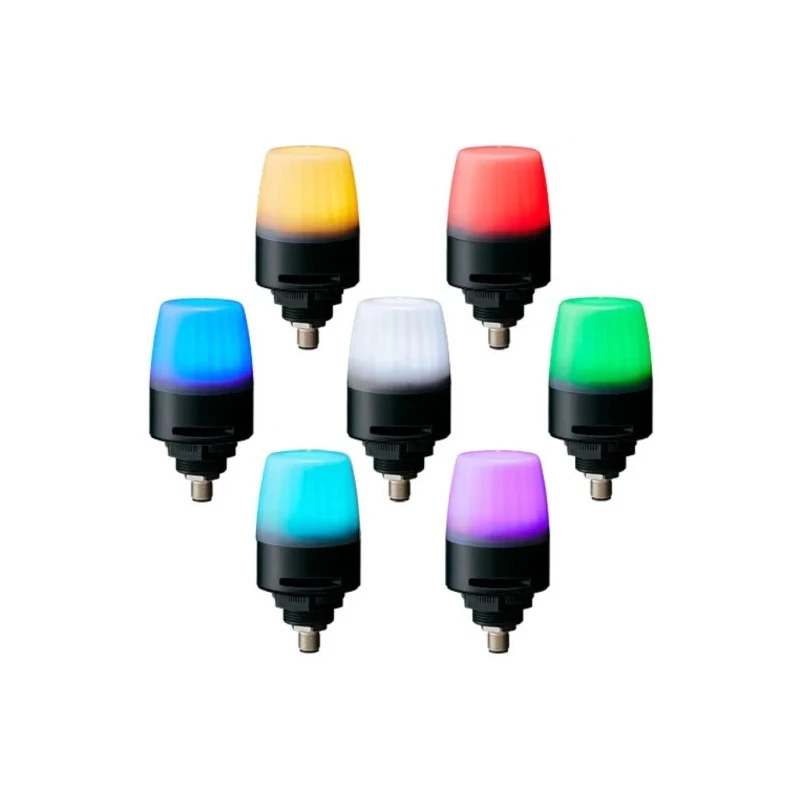

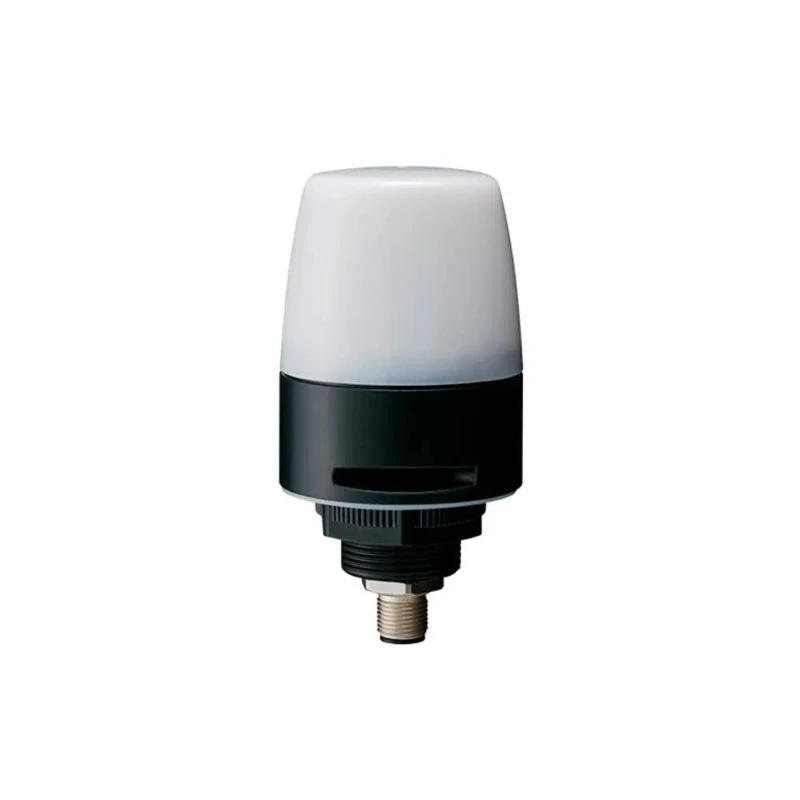

Patlite NE-I Series IO-Link Signal Beacon with Buzzer, Cyan Green Purple Red White Amber Blue LED Flashing, IP65 NE-ILXB-M

Patlite NE-ILXB-M IO-Link Signal Beacon with Buzzer provides a comprehensive multi-color LED signaling and audible alarm solution for industrial automation applications operating on 24V dc power supply. The device is part of the NE-I series and is designed to deliver reliable visual and audio alerts with high sound levels up to 88 dB at 1 meter.

The signal beacon includes seven LED lens colors: cyan, green, purple, red, white, amber, and blue, allowing clear and distinct status identification in manufacturing, HVAC, water treatment, and other industrial environments. The flashing light effect and buzzer sounder type provide simultaneous visual and audible warnings, enhancing safety and operational awareness on factory floors and machinery control panels.

Compact and robust, the IP65 rated polycarbonate housing protects the unit from dust and water ingress, making it suitable for harsh industrial conditions. The device mounts directly with an M12 terminal connection which facilitates secure and straightforward installation.

The beacon is operable between -25°C and 60°C temperatures, accommodating diverse indoor/outdoor and industrial environments. It supports eight selectable sound tones with a maximum sound level of 88 dB, yet lacks hazardous area certification, indicating it is intended for non-explosive atmospheres.

Patlite ensures the quality and compliance of this beacon with certifications including CSA-C22.2 No.14, EN61000-6-2, EN61000-6-4, FCC, ICES-003, KN series, and UL 508, reinforcing its suitability for industrial automation signalling applications globally.

Additional features include a touch sensor for real-time status confirmations, improving operational monitoring and safety. The advanced reflector design emits an evenly distributed light that prevents ambiguous indicators, making status recognition easier and more reliable.

This Patlite IO-Link Signal Beacon is ideal for industrial automation, manufacturing facilities, building automation, and process control systems requiring dependable multi-signal alerts.

The beacon features cyan, green, purple, red, white, amber, and blue LED lens colors for multi-status indication. It offers flashing light effects with a buzzer sounder type delivering up to 88 dB at 1 meter. Designed for direct mounting with an M12 terminal connection and polycarbonate housing rated to IP65 for harsh environments.

Operating temperature ranges from -25°C to +60°C, ensuring reliable performance in diverse conditions. The unit includes eight selectable tones with no hazardous area certification, suitable for general industrial use. Compliance with multiple standards including CSA-C22.2 No.14, EN61000-6-2, EN61000-6-4, FCC Part15 SubpartB ClassA, ICES-003, KN61000-6-2, KN61000-6-4, and UL 508.

A touch sensor feature allows real-time status confirmation enhancing operational safety and monitoring. The newly developed reflector ensures even light distribution, preventing ambiguous signal indications. Explore further Patlite automation signalling products at EnvMart for quality and reliability in your industrial signaling needs.
