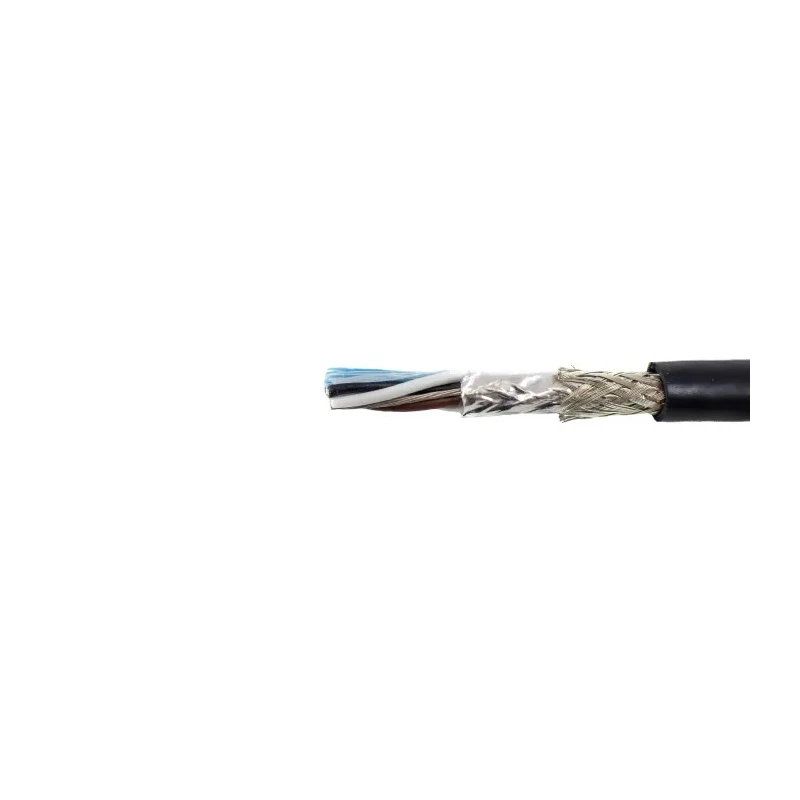

Alpha Wire XTRA-GUARD 2 Series Data Cable 4 Pairs 8 Cores 0.23 mm² 30 m 300V Polyvinyl Chloride Jacket 25274 BK005

Alpha Wire 25274 BK005 XTRA-GUARD 2 Series Data Cable is a specially engineered multi-pair communication cable that provides reliable signal transmission in demanding industrial and commercial settings. The cable contains four twisted pairs, totaling eight cores, each with a cross-sectional area of 0.23 mm². It is constructed with 7-strand tinned copper conductors to enhance flexibility and durability for repeated movement.

This cable features a black polyvinyl chloride (PVC) outer jacket that offers mechanical protection and resistance to harsh environmental conditions. Its nominal outside diameter is 6.88 mm, and it is rated for 300 volts, making it suitable for medium-voltage control panel signals.

The operating temperature range from -30°C to +90°C allows for versatile deployment in varied thermal environments. Additionally, the cable meets the VW-1 flame test, reducing flame propagation and enhancing fire safety compliance for installations in confined spaces.

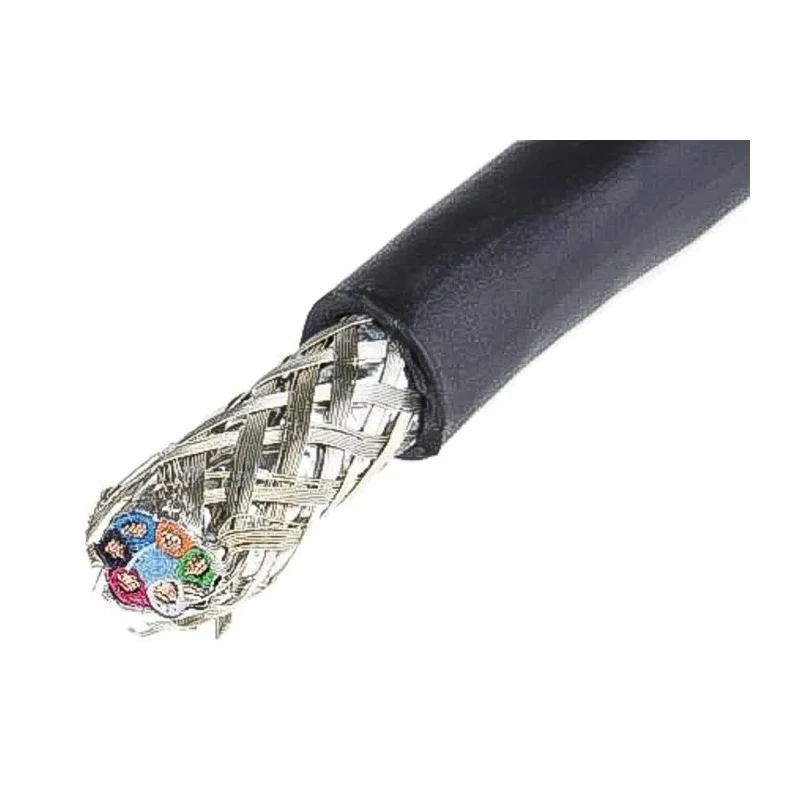

Signal integrity is maintained through an aluminium/polyester/aluminium tape shield combined with a braided tinned copper screen, which ensures excellent noise suppression and low-impedance return paths. The core includes a non-woven polyester wrap that provides structural stability, and a ripcord beneath the jacket assists technicians in controlled jacket removal during termination.

This data cable is suitable for factory automation communication links, industrial Ethernet networks, fieldbus segments that require shielding, as well as sensor cabling applications where repeated flexing occurs. It is also compliant with CSA, UL, and CE standards, making it a reliable choice for industrial and commercial installations.

The cable length is 30 meters with a durable black polyvinyl chloride jacket. Rated for 300V with copper conductor type and tinned copper wire for enhanced conductivity. Features a 6.88 mm outside diameter and operates between -30°C to +90°C.

Flammability performance meets VW-1 standards for flame resistance. Includes comprehensive shielding with aluminium/polyester/aluminium tape and a braided tinned copper screen. Ideal for factory automation, industrial Ethernet, fieldbus segments, and sensor cabling requiring shielding and flexibility.

Core assembly stability is ensured by a non-woven polyester wrap with a ripcord for easy sheath removal. Explore more high-quality Data Cables and wire solutions at EnvMart, including industrial, automation, and control cable options.
