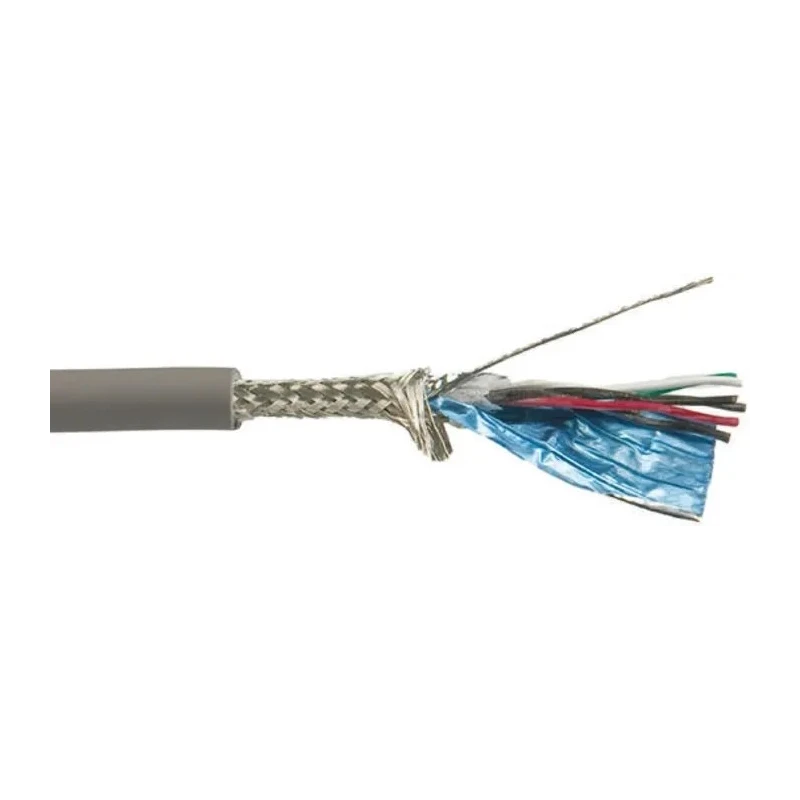

Alpha Wire XTRA-GUARD FLEX Series Data Cable 3 Pairs 6 Cores 30 m Grey Sheath Polyvinyl Chloride 86403CY SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 86403CY SL005 |
| Cable Length | 30m |
| Series | XTRA-GUARD FLEX |
| Outside diameter | 6.1mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -10°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE |
| Jacket Colour | Grey |
| Fire Behaviour | FT4 |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.13mm |
| Size of Strands | 0.13mm |
| Number of Pairs | 3 |
Key Features
- Features a durable Polyvinyl Chloride jacket for chemical, oil, and solvent resistance.
- Rated for operation between -10°C and 105°C to withstand harsh environments.
- Stranded tin copper conductor strands provide excellent conductivity and flexibility.
- Supra-Shield design offers precise EMI interference resistance for reliable data transmission.
- Suitable for continuous flex, high torsion, and high flex cycle applications up to 14 million cycles.
- Complies with CE standards and FT4 fire behavior rating.
- Cable has 3 twisted pairs (6 cores) with 7 strands per conductor of 0.13 mm diameter.
- Grey sheath with 6.1 mm outside diameter for easy identification and installation.
Product Description
Alpha Wire 86403CY SL005 XTRA-GUARD FLEX Series Data Cable is a flexible, high-performance cable designed for industrial and automation applications requiring continuous flex and torsion. Rated for up to 14 million flex cycles, this cable provides exceptional durability and chemical resistance due to its Polyvinyl Chloride jacket.
The cable features stranded tin copper conductors with 3 pairs (6 cores), each conductor composed of 7 strands of 0.13 mm diameter, ensuring excellent electrical conductivity and flexibility. Its supreme EMI interference resistance is achieved through the Supra-Shield design, making it ideal for precision data transmission in challenging industrial environments.
Designed for a voltage rating of 300V, this cable supports operating temperatures from -10°C up to 105°C and meets CE standards with FT4 fire behavior classification. The cable's grey sheath and 6.1 mm outer diameter facilitate easy handling and installation.
Its robust design resists oils, solvents, and chemicals, making it suited for applications in industrial machinery, automation systems, and other high-flex continuous movement situations. The cable is compatible with liquid-tight installations conforming to IP67 or NEMA 6 standards.
Durable Polyvinyl Chloride jacket provides chemical and oil resistance. Exceptional flexibility with stranded tin copper conductors. Supra-Shield offers precise EMI interference protection. 3 pairs (6 cores) of stranded conductors sized 0.13 mm.
Rated for continuous flex applications up to 14 million cycles. Operating temperature range: -10°C to 105°C. Voltage rating: 300V suitable for industrial environments. Complies with CE standards and features FT4 fire behavior rating.
This Alpha Wire XTRA-GUARD FLEX Series Cable is well-suited for electrical, automation, manufacturing, and industrial control applications demanding reliable data transmission and high durability under mechanical stress.
Explore more high-quality Data Cables and wiring solutions in the Electronics & Electricals section at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this cable is 105°C.
This model has a voltage rating of 300V.
The cable features 6 cores, organized in 3 twisted pairs.
The cable is constructed with a Polyvinyl Chloride jacket and stranded tin copper conductors.
The outside diameter of this cable is 6.1 mm.
The minimum operating temperature is -10°C.
Each conductor is composed of 7 strands, each with a diameter of 0.13 mm.
This cable is suitable for industrial machinery, automation systems, and high-flex continuous movement applications.
The cable features an FT4 fire behavior rating.
Yes, it complies with CE standards.
This cable is rated for up to 14 million flex cycles.
The Supra-Shield design provides precise EMI interference resistance for reliable data transmission.
