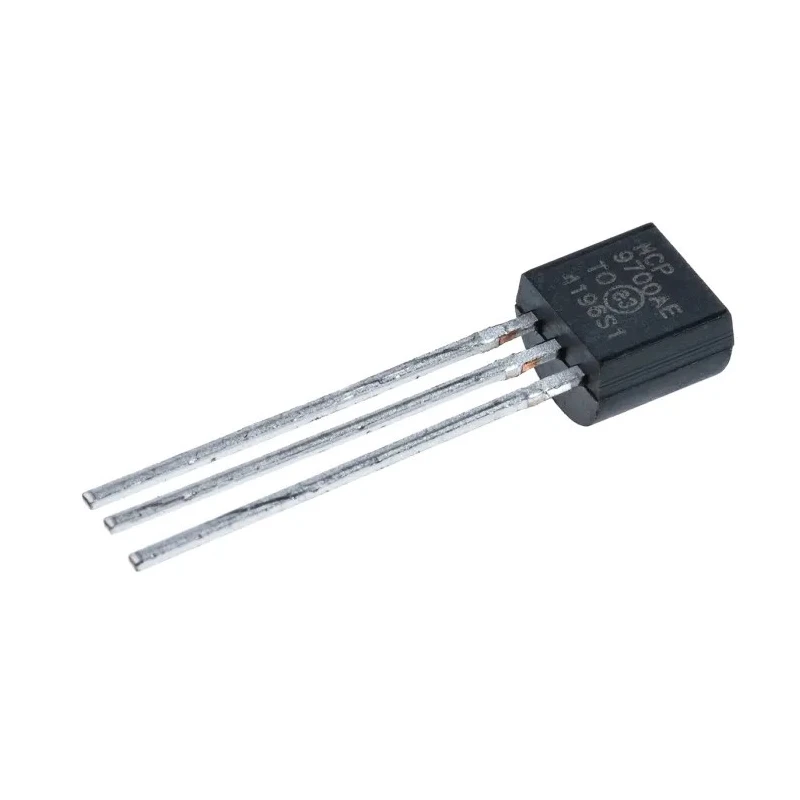

Microchip Voltage Output Temperature Sensor MCP9700A, Analogue, Through Hole Mount, ±1°C Accuracy, 3-Pin TO-92 MCP9700A
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP9700A |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9700A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- Operates over a wide supply voltage range from 2.3V to 5.5V.
- Supports operating temperatures from -40°C to 125°C for versatile environmental sensing.
- Through hole mount package type TO-92 with 3-pin configuration for easy PCB integration.
- Designed to drive large capacitive loads and resistant to parasitic capacitance interference.
- Compact dimensions of approximately 4.71mm length, 4.62mm height, and 3.62mm width.
- Ideal for applications including office equipment, home appliances, battery packs, and industrial temperature monitoring.
Product Description
Microchip MCP9700A voltage output temperature sensor MCP9700A is an analogue sensor designed for precision temperature measurement with ±1°C accuracy. Encapsulated in a 3-pin TO-92 through-hole package, it operates reliably between -40°C and 125°C and uses a supply voltage range of 2.3V to 5.5V. The sensor provides a linear voltage output corresponding to temperature changes at 10mV/°C sensor gain, facilitating straightforward integration into electronic designs.
Designed for industrial, laboratory, HVAC, and commercial applications, the MCP9700A sensor excels in temperature monitoring solutions for office equipment, home appliances, entertainment systems, hard disk drives, and battery management systems. Its robustness against parasitic capacitance and ability to drive large capacitive loads make it suitable for challenging environments.
The compact TO-92 plastic package ensures easy installation with PCB through-hole mounting using its three pins. Dimensions include a length of 4.71mm, height of 4.62mm, and width of 3.62mm, maintaining a small footprint.
Operates at supply voltages from 2.3V to 5.5V. Temperature range from -40°C to 125°C suits diverse environments. Provides accurate analogue voltage output at 10mV/°C sensor gain. Through hole mount TO-92 package with 3 pins for ease of integration.
Resistant to parasitic capacitance and capable of driving large capacitive loads.
This Microchip MCP9700A sensor series is ideal for developers seeking reliable and precise temperature measurement ICs for electronic equipment and industrial controls. Explore EnvMart for more advanced sensor solutions and Microchip product selections.
Explore more products in our Temperature Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9700A operates within a temperature range of -40°C to 125°C, making it suitable for various environmental conditions.
This model has an accuracy of ±1°C, ensuring reliable temperature measurements.
The MCP9700A provides an analogue voltage output, which corresponds to temperature changes at a gain of 10mV/°C.
The sensor has compact dimensions of approximately 4.71mm in length, 4.62mm in height, and 3.62mm in width.
This model features a through-hole mount package type TO-92, facilitating easy installation on PCBs.
The MCP9700A is designed for applications including industrial temperature monitoring, office equipment, home appliances, and battery management systems.
It has a 3-pin configuration, which simplifies its integration into various electronic circuits.
The sensor gain of this model is 10mV/°C, providing a linear output that is easy to interpret.
Yes, this model is designed to be resistant to parasitic capacitance interference, which enhances its performance in challenging environments.
The country of origin for the MCP9700A is India.
The MCP9700A comes in a TO-92 package type, which is common for through-hole mounting applications.
