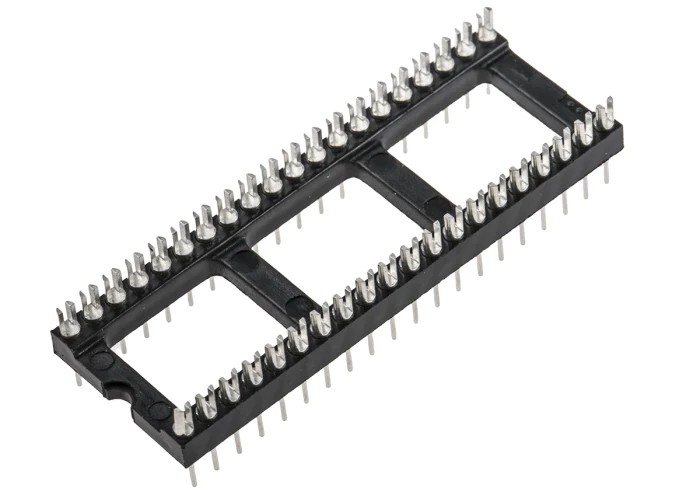

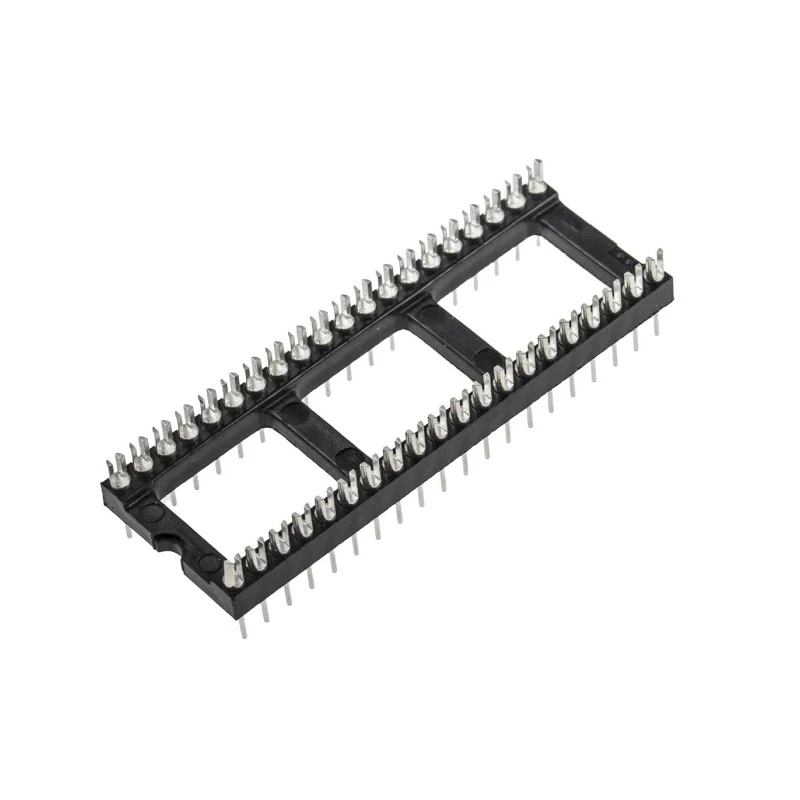

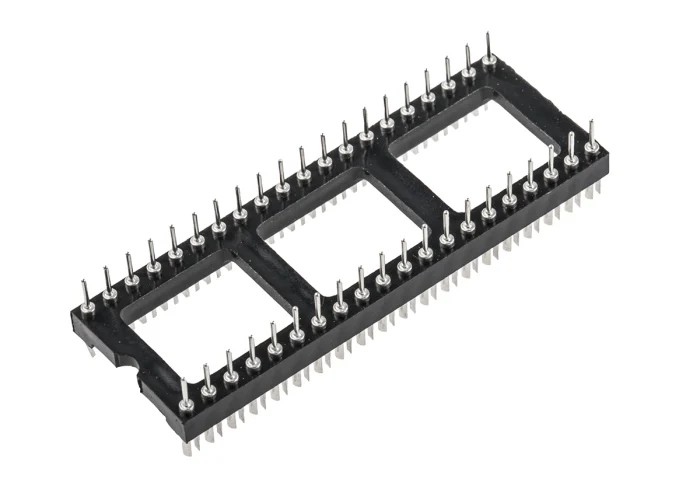

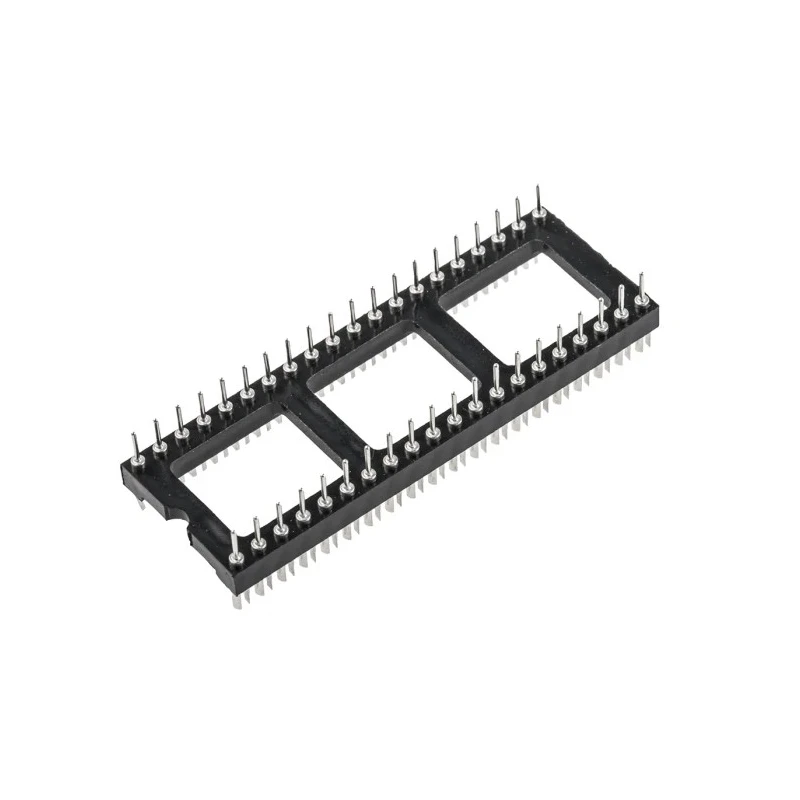

RS PRO 2.54 mm Pitch 40 Way Through Hole Mount DIL Header Tin over Nickel Contact 1A 402-692
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Current | 1A |
| Length | 50.27mm |
| Model | 402-692 |
| Depth | 17.66mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 40 |
| Pin Type | Slotted Pin |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features 40 brass contacts ensuring a 1A current rating.
- Contact plating is tin over nickel for corrosion resistance.
- Unshrouded dual in-line header with 2 rows of slotted pins.
- Pitch between pins is 2.54 mm suitable for standard connectors.
- Housing material is Polybutylene Terephthalate offering robustness.
- Designed for through-hole mounting on PCB.
- Operating temperature range from -65°C to 150°C ensures wide environmental tolerance.
- Compliance with UL 94 V-0 flammability standard for safety.
Product Description
RS PRO 402-692 DIL Header is a high-quality, 2.54 mm pitch, 40-way through hole mount connector designed for versatile electronic applications.
This dual in-line (DIL) header features brass contacts with tin over nickel plating, delivering excellent electrical conductivity and corrosion resistance, suitable for reliable and durable PCB connections.
The unshrouded, slotted pin design and the 2-row configuration offer convenient integration with matching sockets or direct soldering onto printed circuit boards, supporting up to 1 ampere of current per contact.
The housing is made from Polybutylene Terephthalate which provides mechanical strength and thermal resistance, functioning within an operating temperature range from -65°C up to 150°C, making it suitable for demanding environments.
This product complies with the UL 94 V-0 flammability standard, enhancing safety in electrical system designs. Manufactured in the United Kingdom, the RS PRO header guarantees high manufacturing quality and reliability. Features 40 brass contacts ensuring a 1A current rating.
Contact plating is tin over nickel for corrosion resistance. Unshrouded dual in-line header with 2 rows of slotted pins. Pitch between pins is 2.54 mm suitable for standard connectors. Housing material is Polybutylene Terephthalate offering robustness.
Designed for through-hole mounting on PCB. Operating temperature range from -65°C to 150°C ensures wide environmental tolerance. Compliance with UL 94 V-0 flammability standard for safety. Produced in the United Kingdom maintaining high quality standards.
This DIL header is ideal for industrial, electronics manufacturing, prototyping, and complex PCB assembly applications where dependable connector performance is essential. Explore more Connectors and electronic components at EnvMart for comprehensive solutions tailored to your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a current rating of 1 ampere per contact.
The pitch between the pins is 2.54 mm, making it suitable for standard connectors.
The maximum operating temperature is 150°C, allowing it to function in demanding environments.
The housing material is Polybutylene Terephthalate, which provides mechanical strength and thermal resistance.
It has 40 brass contacts, ensuring reliable electrical connections.
This model uses a solder termination type for secure connections to PCBs.
Yes, it complies with the UL 94 V-0 flammability standard, enhancing safety in electrical applications.
The depth of this DIL header is 17.66 mm.
It features slotted pins in an unshrouded design, facilitating easy integration with sockets or direct soldering.
This product is manufactured in the United Kingdom, ensuring high manufacturing quality.
The length of this model is 50.27 mm.
It is ideal for industrial, electronics manufacturing, prototyping, and complex PCB assembly applications.
