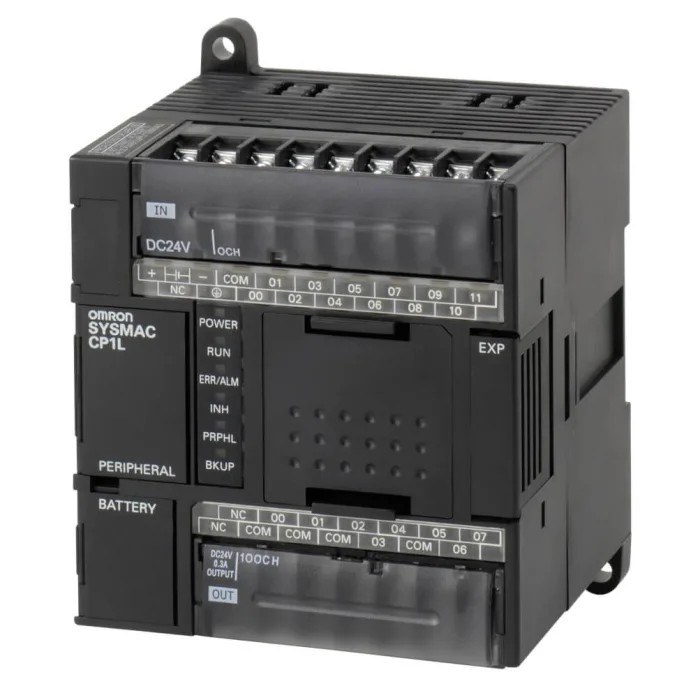

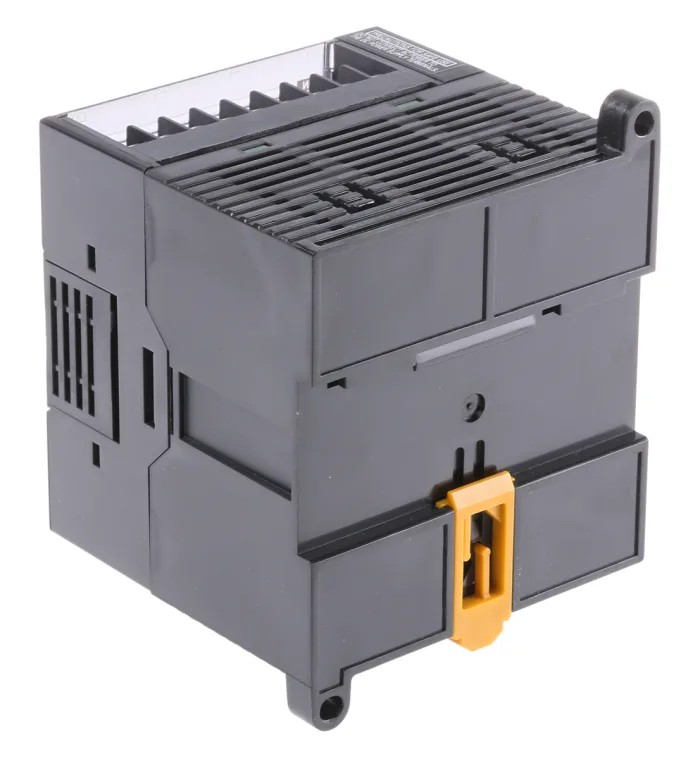

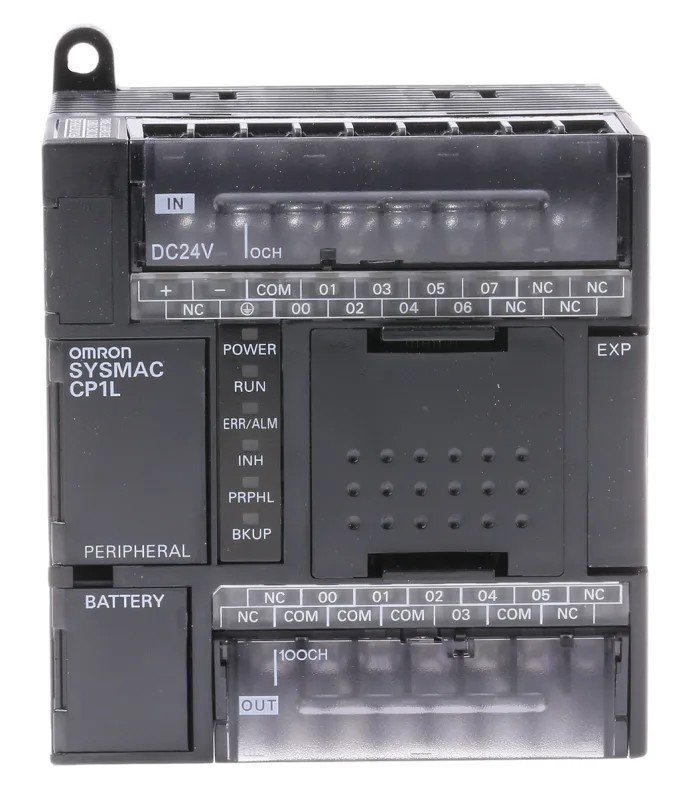

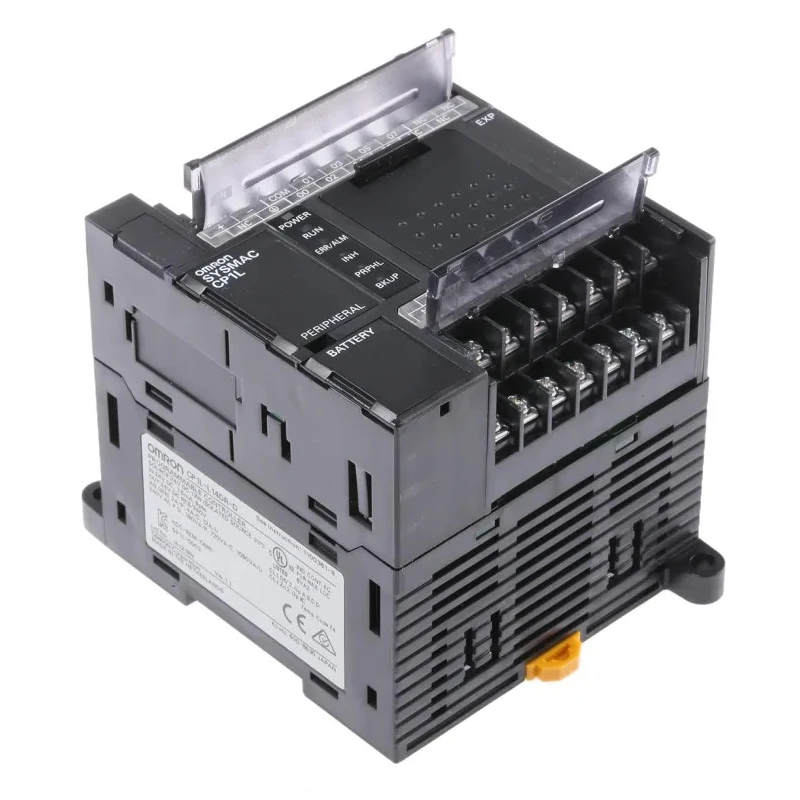

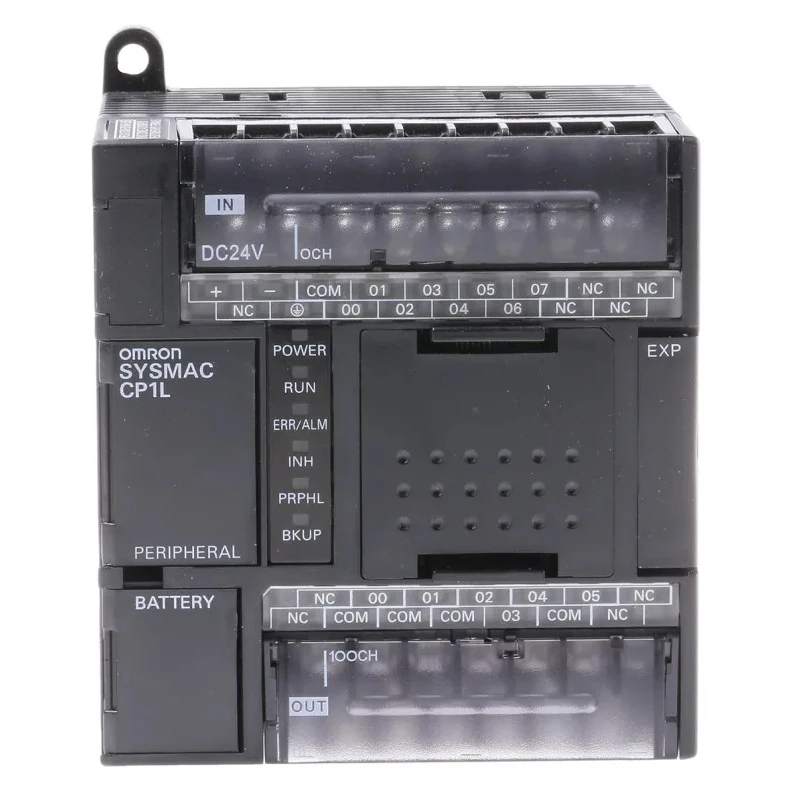

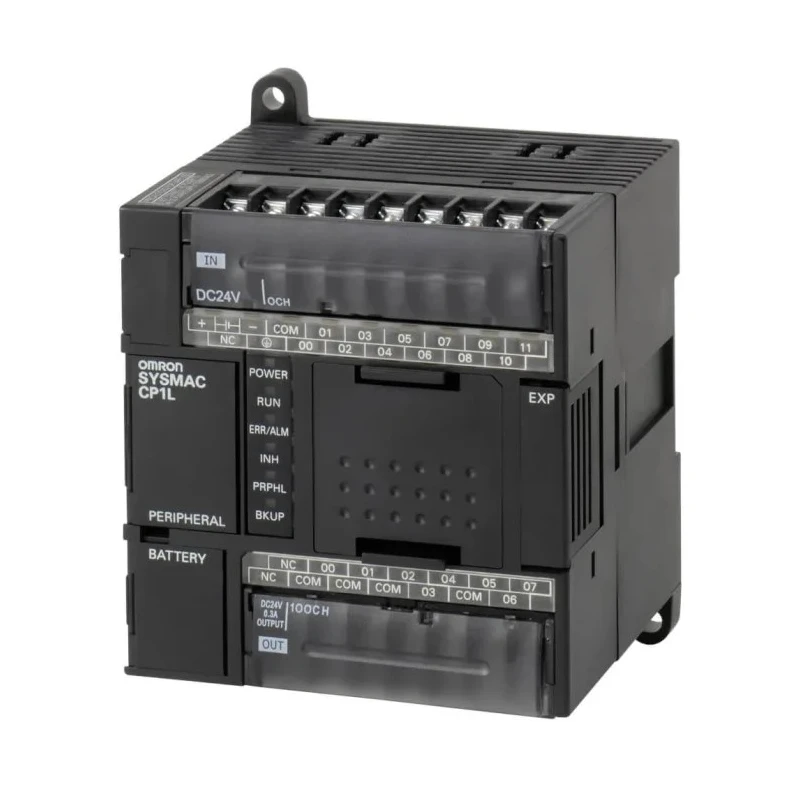

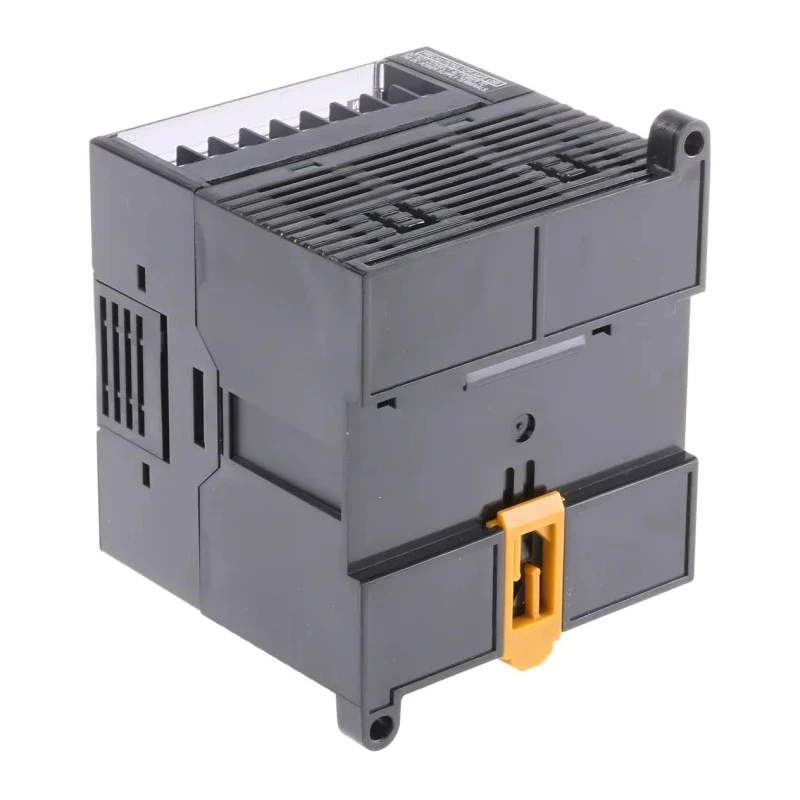

Omron CP1L Series PLC CPU, 8-Input DC Input, 6 Outputs Relay Output, USB Communication, Ladder Logic, DIN Rail Mount

Free Delivery in India | Lowest Global Shipping Charges

Omron CP1L Series PLC CPU, 8-Input DC Input, 6 Outputs Relay Output, USB Communication, Ladder Logic, DIN Rail Mount

Name: Omron CP1L Series PLC CPU, 8-Input DC Input, 6 Outputs Relay Output, USB Communication, Ladder Logic, DIN Rail Mount
Brand: Omron
SKU: 160220
Price: 522.57 USD
Availability: InStock



Category PLC - Programmable Logic Controllers Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Length	86mm
Model	CP1L
Depth	85mm
Width	110mm
Mount Type	DIN Rail
Number of inputs	8
Output type	Relay
Series	CP1L
Output Current	2A
Input Type	DC
Maximum Operating Temperature	55°C
Minimum Operating Temperature	0°C
Interfaces	USB communication simplifies data transfer and programming
Number of outputs	6
Program Capacity	5000Steps
Standards/Approvals	CE
Number of Communication Ports	1
Communication Port Type	USB 1.1
Programming Language Used	Ladder Logic

Key Features

Supports USB 1.1 communication for easy programming and data transfer.
Programmable with ladder logic for flexible control algorithms.
Compact DIN rail mount design for efficient space utilization.
Operates reliably between 0°C and 55°C ambient temperature.
Includes battery backup to retain data during power interruptions.
Program capacity allows up to 5000 steps for complex automation tasks.
Supports one communication port and includes a display for status monitoring.
Output current rating of 2A ensures adequate load control via relay outputs.

Product Description

Omron CP1L-L14DR-D is a high-performance PLC CPU from the CP1L Series, featuring 8 DC inputs and 6 relay outputs designed for versatile industrial automation applications. It supports USB 1.1 communication allowing seamless programming and fast data transfer, easing integration with existing control software systems.

This PLC supports ladder logic programming, enabling developers to implement complex control algorithms for precise process management. Its compact DIN rail mountable design facilitates efficient installation within electrical control panels, optimizing space usage.

Designed to operate reliably in ambient temperatures from 0°C up to 55°C, it is suitable for various industrial environments. The included battery backup ensures that critical data and settings are preserved during unexpected power outages, enhancing system reliability.

The device supports a program capacity of 5000 steps, making it capable of handling sophisticated automation tasks. It features one communication port and a display for easy system monitoring and configuration.

The relay output type supports dependable switching with a maximum output current of 2A, suitable for controlling different load types effectively. Its overall dimensions are 86mm (length) x 110mm (width) x 85mm (depth) and it conforms to CE standards, ensuring compliance with safety and quality norms.

This PLC CPU is ideal for machine automation, assembly lines, high-precision positioning control, and monitoring systems requiring robust input/output configurations and versatile connectivity options. It is part of the SYSMAC CP1L series and can interface with up to three CP-series expansion units for enhanced input/output capacity.

Supports USB 1.1 communication for programming ease. Ladder logic programming for flexible control development. Compact DIN rail mount design saves panel space. Operating temperature range from 0°C to 55°C for reliability.

Battery backup preserves critical data during outages. Program capacity supports up to 5000 steps. Includes display for monitoring and configuration. Relay outputs rated at 2A ensure dependable load control. Explore more Omron industrial automation solutions and PLC CPUs in the Electronics & Electricals category at EnvMart.
