RS PRO External Horizontal Float Switch 100 cm Cable NO/NC 300 V AC/DC Max 500 mA 5 bar 191-9512

Free Delivery in India | Lowest Global Shipping Charges

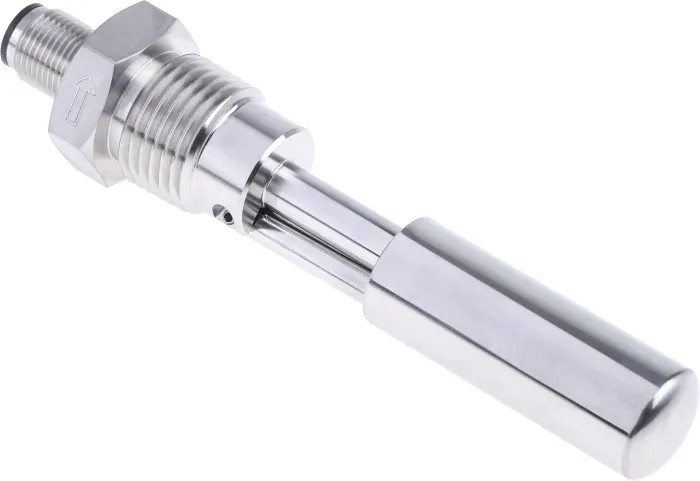

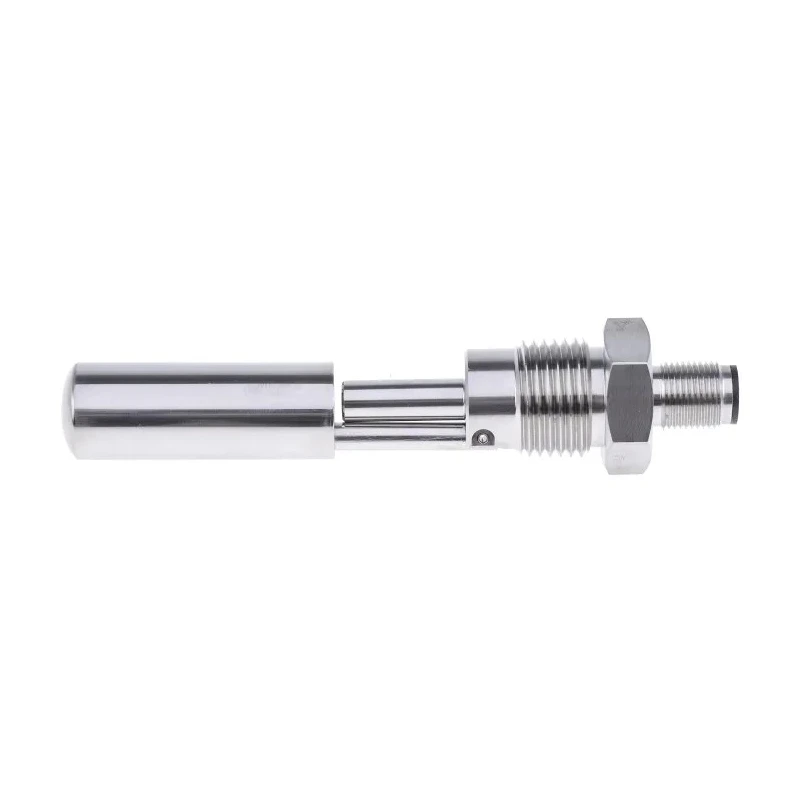

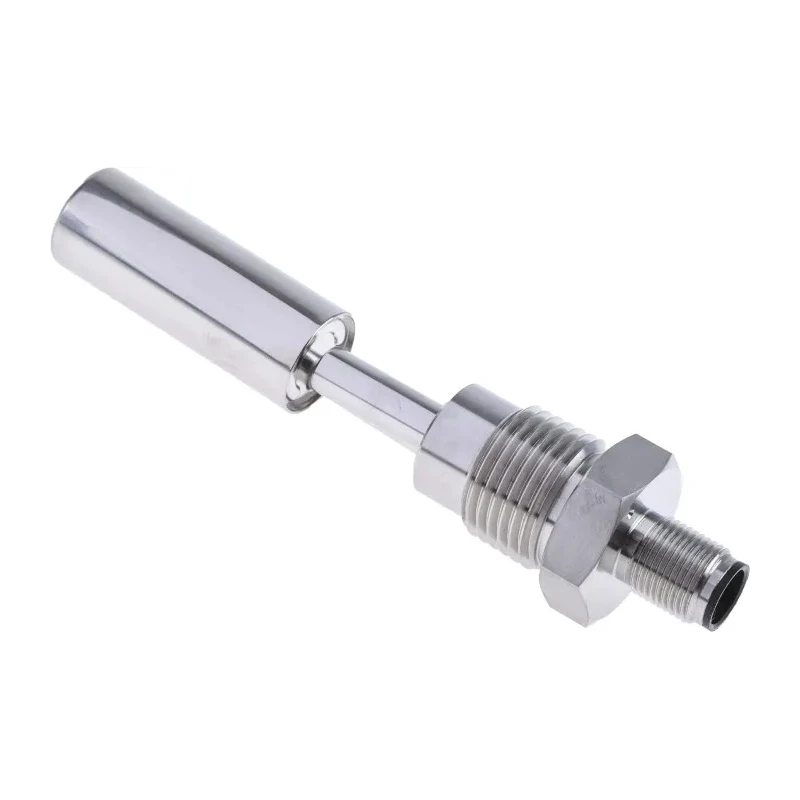

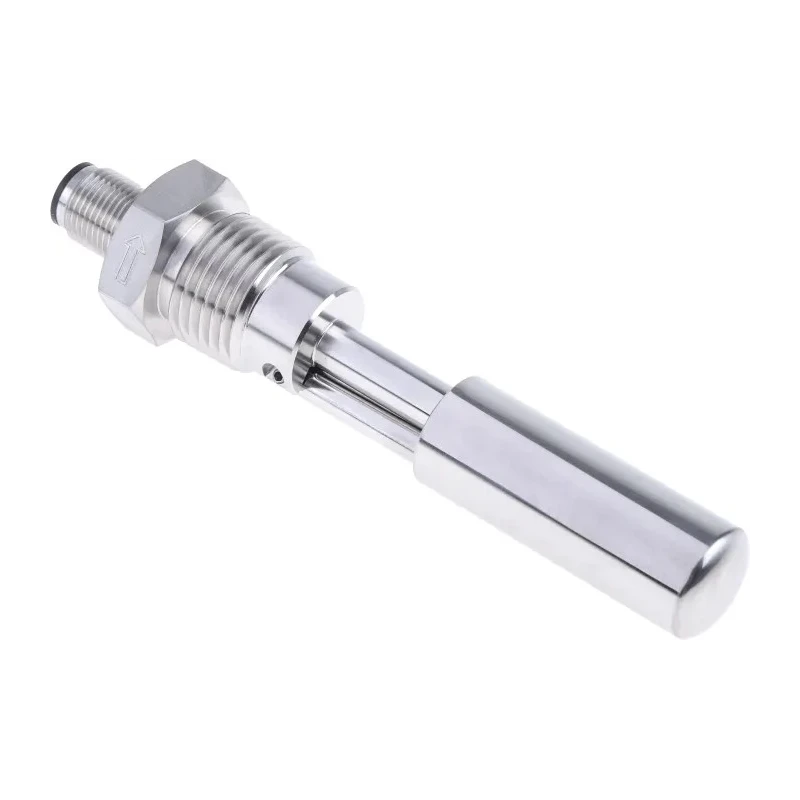

RS PRO External Horizontal Float Switch 100 cm Cable NO/NC 300 V AC/DC Max 500 mA 5 bar 191-9512

Name: RS PRO External Horizontal Float Switch 100 cm Cable NO/NC 300 V AC/DC Max 500 mA 5 bar 191-9512
Brand: RS PRO
SKU: 159724
Price: 175.6 USD
Availability: InStock



Category Float Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	191-9512
Cable Length	100cm
Mount Type	External, Horizontal
Housing Material	304 Stainless Steel
Series	RS PRO
Maximum Pressure	5bar
Switch output	NO/NC
Minimum Operating Temperature	120°C
Maximum Current	500mA
Maximum dc Voltage	300V dc
Maximum AC Voltage	300V ac

Key Features

The float switch is constructed with 304 stainless steel stem and 316 stainless steel float for corrosion resistance.
It supports a maximum current rating of 500 mA and pressure rating up to 5 bar.
Designed for external horizontal mounting suitable for restricted spaces and hazardous environment isolation.
Can operate at temperatures up to 120°C, ideal for hygienic and chemical tank applications.
The switch output is normally-open/normally-closed (NO/NC), allowing flexible liquid level monitoring configurations.
The 100 cm cable length provides convenient installation access from outside tanks.
Compliant with Restriction of Hazardous Substances (RoHS) standards for safety and environmental compliance.

Product Description

RS PRO 191-9512 External Horizontal Float Switch provides robust liquid level monitoring with a durable 304 stainless steel stem and 316 stainless steel float. It features NO/NC switch output designed to operate safely up to 300 V AC/DC and handle a maximum current of 500 mA.

The switch is externally mounted in a horizontal orientation with a 100 cm cable, allowing easy installation outside tanks to reduce exposure to harmful substances. Its compact design is ideal for use where installation space is limited.

With a maximum operating temperature of 120°C and pressure resistance up to 5 bar, this float switch is suitable for demanding industrial, chemical, medical, and food industry liquid level control applications.

This product is compliant with Restriction of Hazardous Substances (RoHS), meeting environmental safety requirements. The switch output can be reversed by mounting in an opposite direction to monitor either high or low liquid levels.

The float device uses 316 stainless steel for enhanced corrosion resistance. The stem is constructed from 304 stainless steel for durability. The device supports a maximum voltage of 300 V AC/DC, making it versatile for various control systems.

The float switch offers 500 mA maximum current capacity. It is designed for external, horizontal mounting to fit space-constrained environments. The cable length of 100 cm provides flexibility in installation configurations.

It can sustain pressures up to 5 bar, suitable for industrial tanks and vessels. The operating temperature can reach up to 120°C, accommodating high-temperature liquids. The NO/NC switch output allows flexible control integration.

This float switch is ideal for industrial automation, water treatment, chemical processing, HVAC systems, and hygienic monitoring in the food and medical industries. It combines robust stainless steel construction with precise and safe liquid detection capabilities.

Explore more products in the Float Switches category on EnvMart for comprehensive sensor and automation control solutions.
