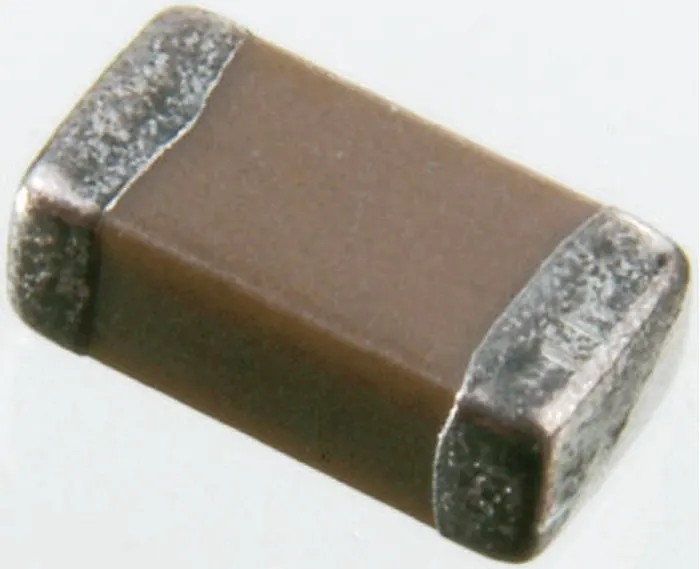

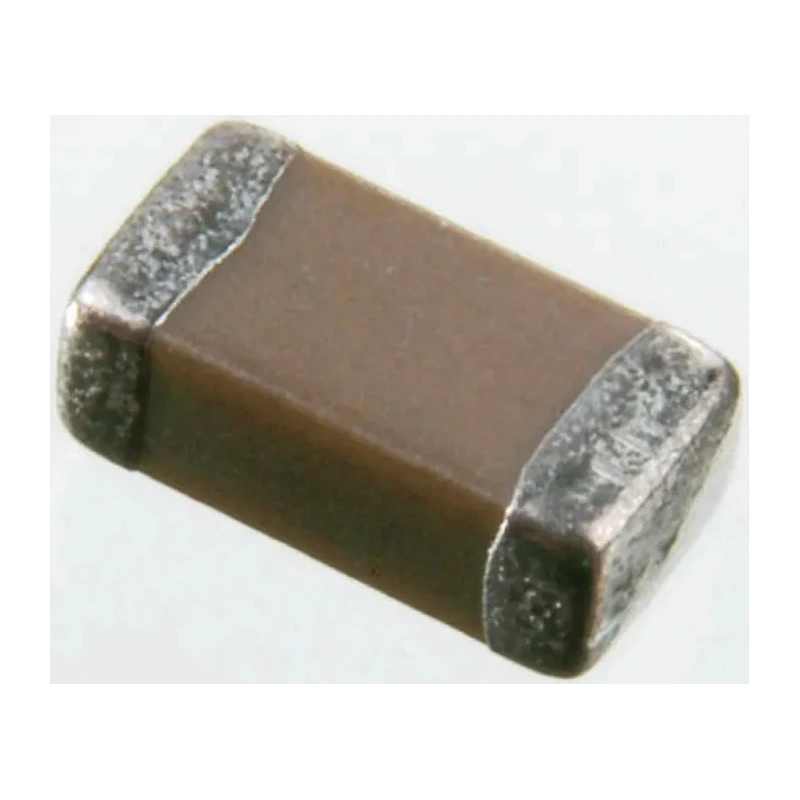

KYOCERA AVX 220 pF Multilayer Ceramic Capacitor, 500V dc, ±5 %, Surface Mount 12067A221JAT2A

KYOCERA AVX 12067A221JAT2A is a multilayer ceramic capacitor designed for surface mount applications with a capacitance of 220 pF and a voltage rating of 500V dc. This capacitor uses a C0G dielectric, known for excellent temperature stability and minimal capacitance change over temperature extremes from -55°C to 125°C. Featuring a ±5 % tolerance, the component ensures precise capacitance control for sensitive circuits.

The 1206 case size offers compactness with dimensions of 3.2 mm length, 1.6 mm width, and 1.27 mm height, making it ideal for high-density PCB layouts. Packaged on a reel, it supports automated component handling and efficient manufacturing processes.

These MLCCs exhibit a low equivalent series resistance (ESR) and high reliability, suited for critical applications requiring high voltage and stable capacitance. Common uses include high frequency power converters, resonators in switched-mode power supplies (SMPS), and DC blocking in electronic circuits.

The capacitor's temperature variation lies within ±15% from -55°C to +125°C, with the C0G type classified as an EIA Class I material, offering the best stability among ceramic dielectrics. This makes it well suited for industrial, automotive, communication, and consumer electronics sectors.

Capacitance value of 220 pF ensures stable performance. Voltage rating of 500V dc for high voltage applications. Surface mount package type with 1206 case size. Dielectric type C0G (NPO) for temperature stability. Operating temperature range from -55°C to 125°C.

Tolerance of ±5% for precise capacitance control. Termination type is surface mount for PCB assembly. Compact dimensions: 3.2 mm length, 1.6 mm width, and 1.27 mm height. Reel packaging supports automated production processes.

Standard series suitable for various industrial electronics applications.

This KYOCERA AVX capacitor is a new product from a trusted brand, widely used in electronics manufacturing and repairs. Browse the Electronics Components category at EnvMart for more Multilayer Ceramic Capacitors and related passive components.
