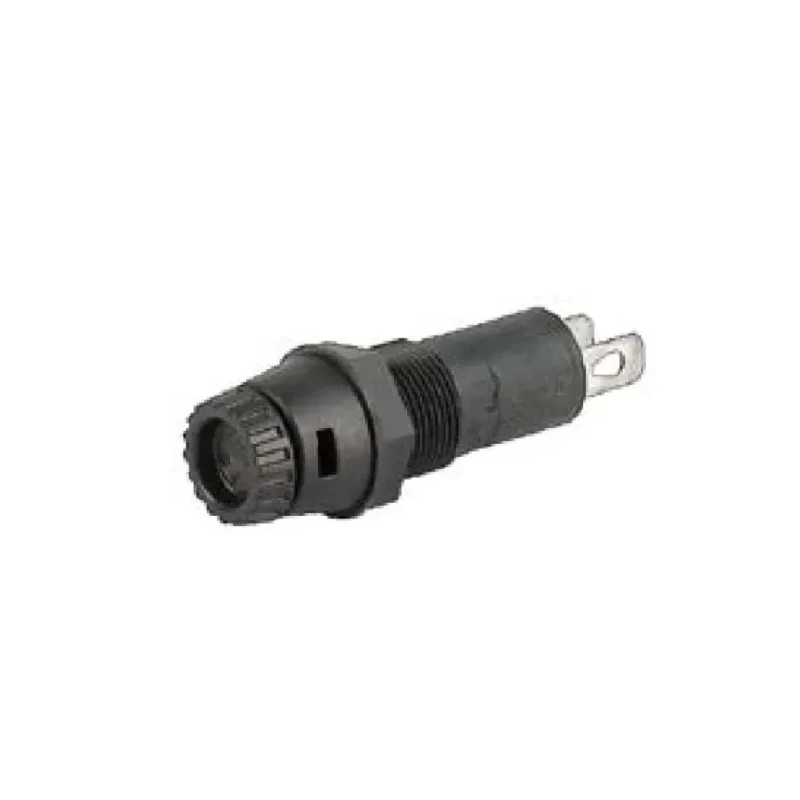

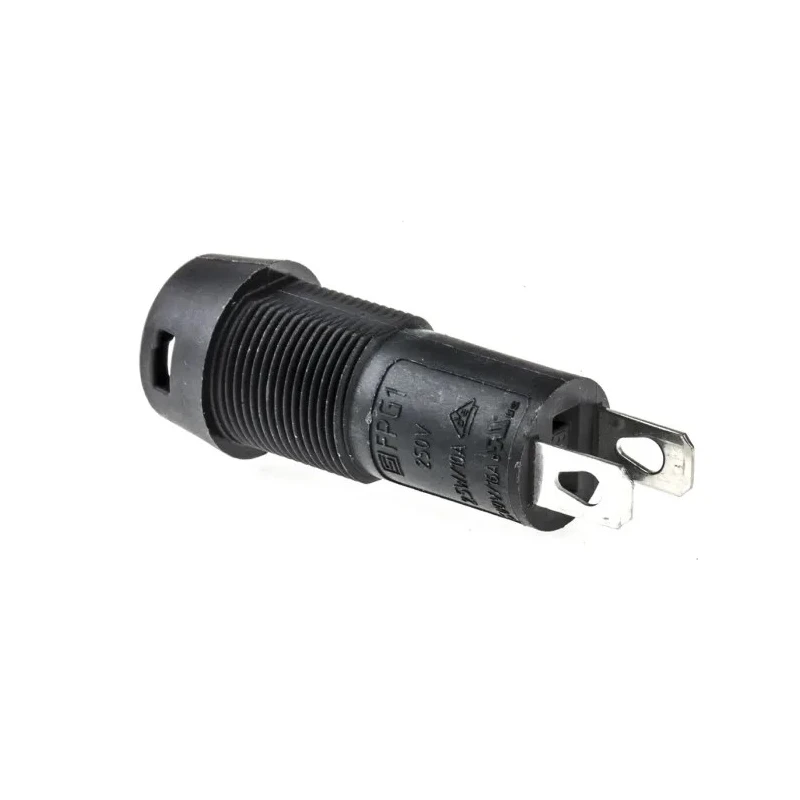

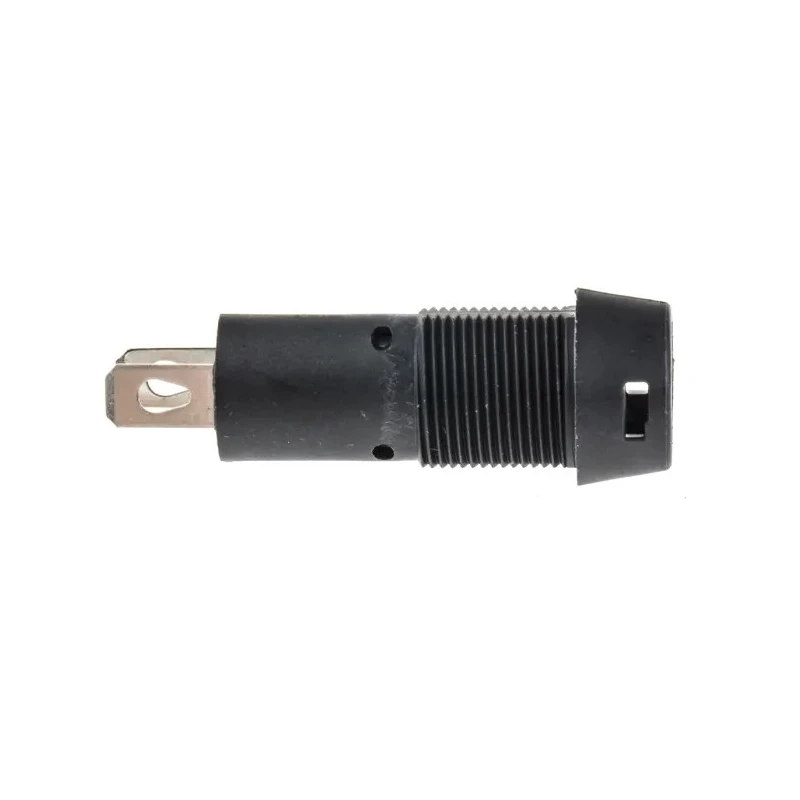

Schurter 16A Panel Mount Fuse Holder, 1P-Pole for 5 x 20 mm Fuses, 250V AC 3101.0015

Schurter 3101.0015 Panel Mount Fuse Holder is engineered for industrial, electrical automation, and control panel applications, designed to safely house 5 x 20 mm fuses with a 16A current rating and 250V AC voltage capacity. The single-pole fuse holder features a thermoplastic body ensuring insulation and durability under normal operating conditions.

The device employs a manual cap style with a bayonet front mount system facilitating secure and easy fuse replacement, while the contact points utilize tin plated copper alloy contacts that provide low insertion resistance and excellent corrosion resistance for reliable electrical connections.

This fuse holder meets stringent international standards including IEC, CE, UL, CSA, VDE, and RoHS certifications, ensuring high safety and quality compliance. The IP40 rating offers protection against solid ingress but does not provide water resistance, making it suitable for indoor panel applications where moisture exposure is limited.

Designed with protection category PC2, it ensures integral protection against electric shock by making live parts inaccessible per IEC529 standards, increasing operator safety during fuse replacement or panel maintenance. The product is sealed from the rear, making it fully inaccessible as defined in BS EN 60127-6 standards.

The fuse holder is ideal for use in industrial electrical panels, automation systems, and other electrical equipment requiring reliable fuse installation and replacement. The thermoplastic construction also ensures lightweight handling without compromising mechanical strength.

Supports single pole operation with 16A current rating. Constructed with thermoplastic body for durability and insulation. Features manual cap style for ease of fuse replacement. Suitable for panel mounting with bayonet cap and front mount design.

Contact material is tin plated copper for low insertion resistance and corrosion resistance. Protection category PC2 offers integral protection against electric shock. Rated IP40 for protection against solid objects but not liquids.

Compatible with 5 x 20 mm fuses, suitable for industrial applications. Certified and compliant with IEC, CE, UL, CSA, VDE, and RoHS standards. Manufactured in Switzerland ensuring high quality and reliability. Explore quality Fuse Holders suitable for circuit protection and panel mounting applications with Schurter products at EnvMart.
