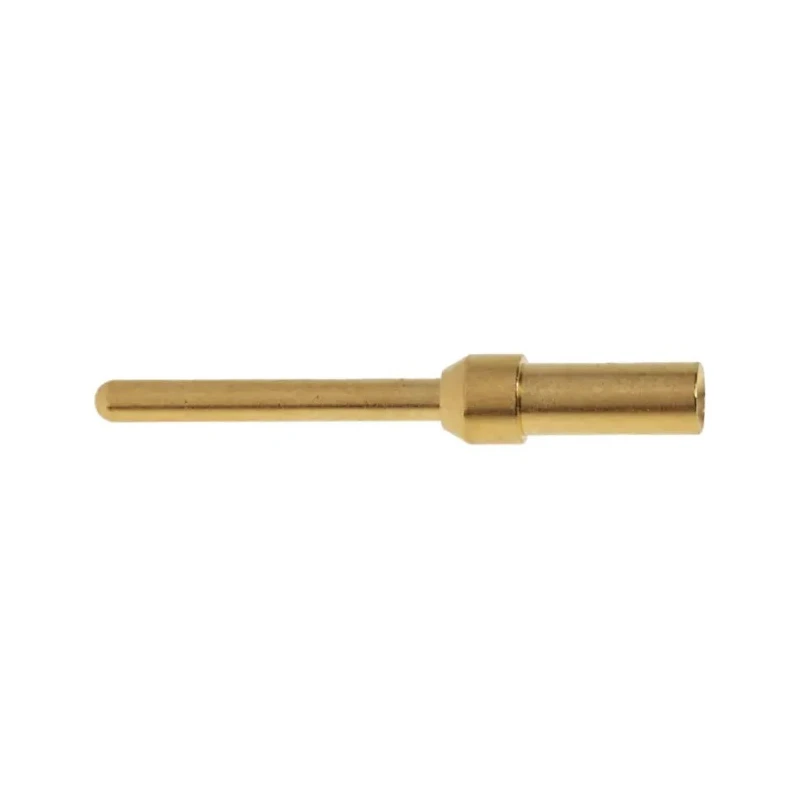

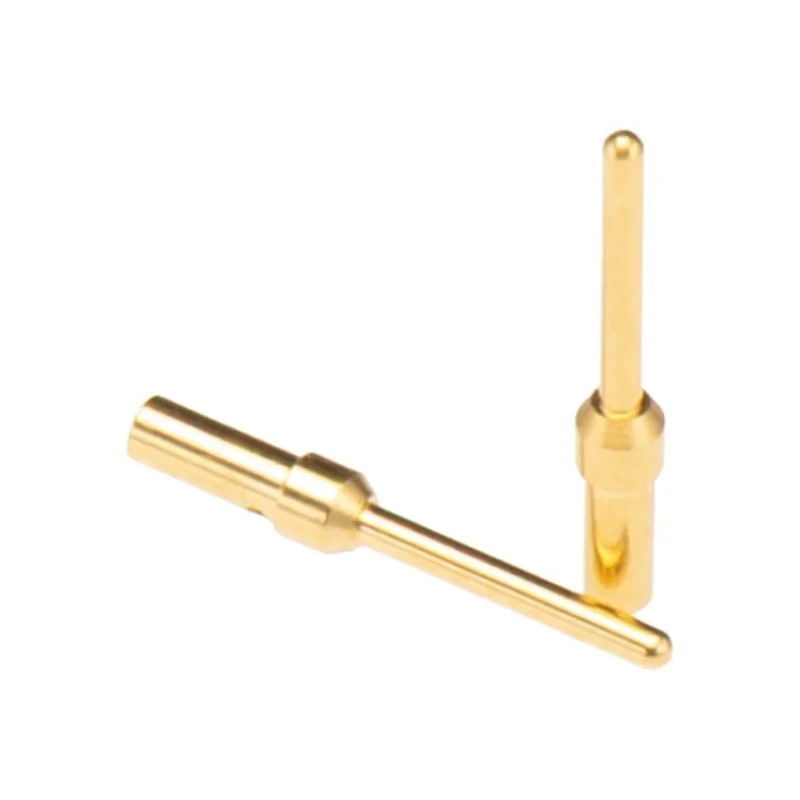

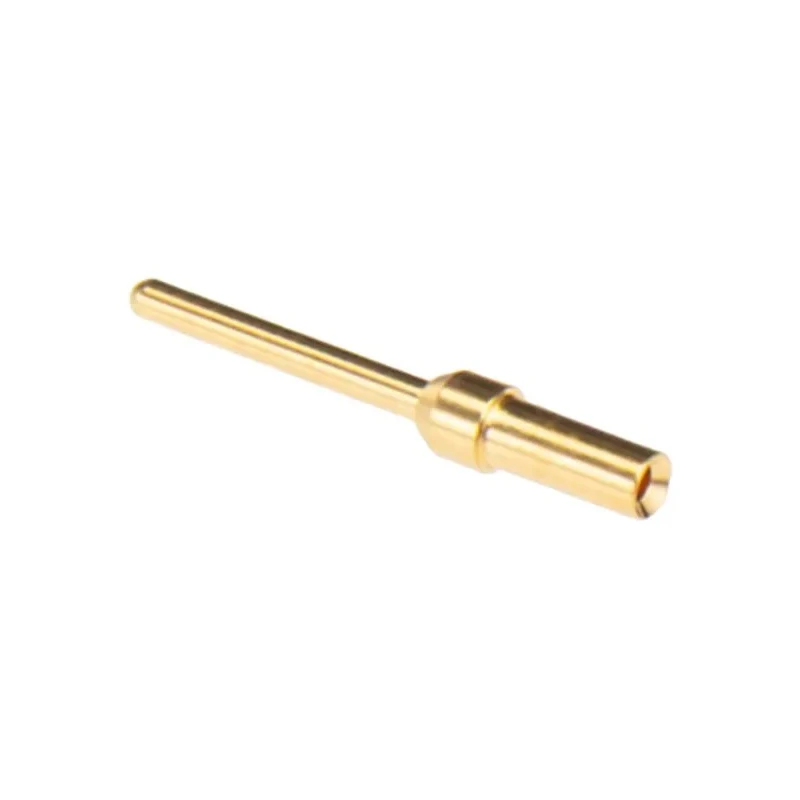

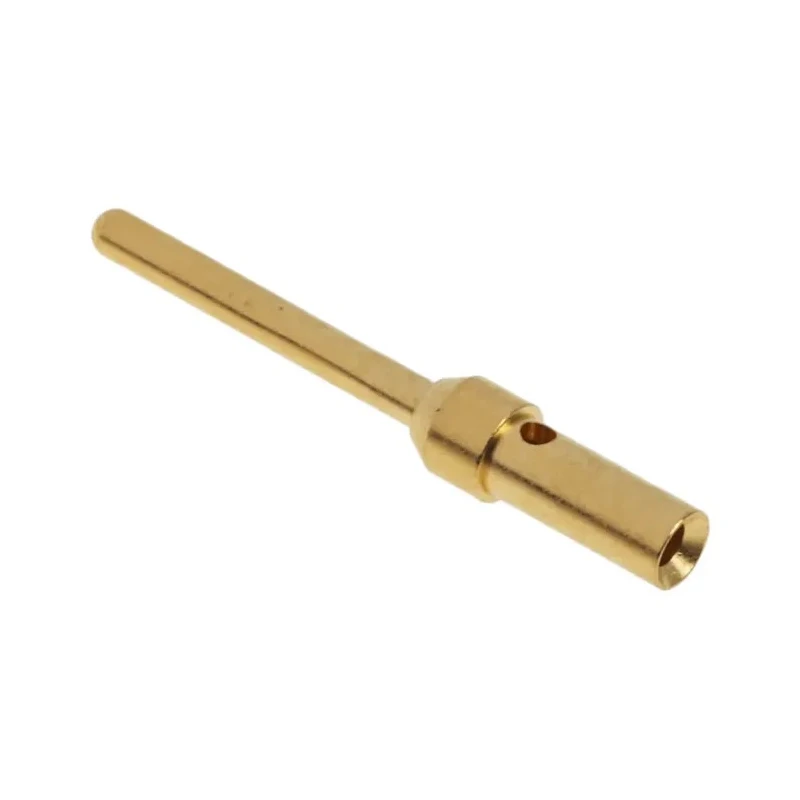

HARTING Male Crimp Circular Connector Contact 1.04 mm Contact Size, 22-26 AWG Wire Size 09670005576
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Length | 14.2mm |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Contact Type | Signal |
| Minimum Operating Temperature | -40°C |
| Wire size | 22, 26AWG |
| For Use With | D-Sub Connector |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Contact Size | 1.04 mm |
| Maximum Contact Resistance | 10mΩ |
Key Features
- This male crimp contact features gold over nickel plating for enhanced electrical conductivity and corrosion resistance.
- Suitable for signal contacts in industrial environments requiring reliable D-Sub mating.
- The contact has a length of 14.2 mm to ensure proper engagement within connector housings.
- It facilitates secure crimp termination for 22 to 26 AWG stranded wire conductors.
- Engineered to operate in a wide temperature range from -40°C to 85°C for versatile industrial applications.
- Copper alloy core provides robust mechanical resilience and excellent conductivity.
- Designed for electrical signal connections in automation control, industrial electronics racks, test equipment, and panel signal extensions.
- Gold plating minimizes oxidation, maintaining stable contact resistance during repeated matings.
Product Description
HARTING 09670005576 is a male crimp circular connector contact specifically designed for use with D-Sub connectors. It features a contact size of 1.04 mm and accommodates stranded wire sizes ranging from 22 to 26 AWG, making it suitable for precise and secure signal connections in demanding industrial environments.
The core is crafted from a copper alloy that offers excellent electrical conductivity alongside mechanical durability. A gold over nickel plating ensures minimal oxidation and consistent low contact resistance of 10 mΩ, enhancing long-term performance reliability. With a length of 14.2 mm, this contact guarantees proper insertion and engagement within D-Sub connector housings.
Its crimp termination enables secure conductor retention, supporting quick and efficient installation using standard crimp tools appropriate for 22 to 26 AWG wires. The wide operating temperature range from -40°C to 85°C ensures functional stability in diverse thermal conditions encountered in industrial, automation, manufacturing, and electrical panel applications.
This circular connector contact is ideal for automation control cabinet signal wiring, industrial electronics rack interconnections, test and measurement rig setups, electrical panel signal extensions, and retrofitting signal contacts during maintenance tasks. It supports reliable D-Sub mating, making it a robust choice for industrial signal transmission needs.
This male crimp contact features gold over nickel plating for enhanced electrical conductivity and corrosion resistance. Suitable for signal contacts in industrial environments requiring reliable D-Sub mating. The contact has a length of 14.2 mm to ensure proper engagement within connector housings.
It facilitates secure crimp termination for 22 to 26 AWG stranded wire conductors. Engineered to operate in a wide temperature range from -40°C to 85°C for versatile industrial applications. Copper alloy core provides robust mechanical resilience and excellent conductivity.
Designed for electrical signal connections in automation control, industrial electronics racks, test equipment, and panel signal extensions. Gold plating minimizes oxidation, maintaining stable contact resistance during repeated matings.
Explore the HARTING brand and browse Circular Connector Contacts at EnvMart for quality electronic connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact size of this model is 1.04 mm.
It accommodates stranded wire sizes ranging from 22 to 26 AWG.
The maximum operating temperature is 85°C.
This contact features a crimp termination type, allowing for secure conductor retention.
The core is made from a copper alloy, and it features gold over nickel plating for enhanced electrical conductivity and corrosion resistance.
The length of this contact is 14.2 mm, ensuring proper engagement within connector housings.
The minimum operating temperature is -40°C.
The maximum contact resistance is 10 mΩ, ensuring stable electrical connections.
This model is compliant with RoHS standards.
It is designed for electrical signal connections in automation control, industrial electronics racks, test equipment, and panel signal extensions.
This contact is specifically designed for use with D-Sub connectors.
The country of origin for this model is Switzerland.
