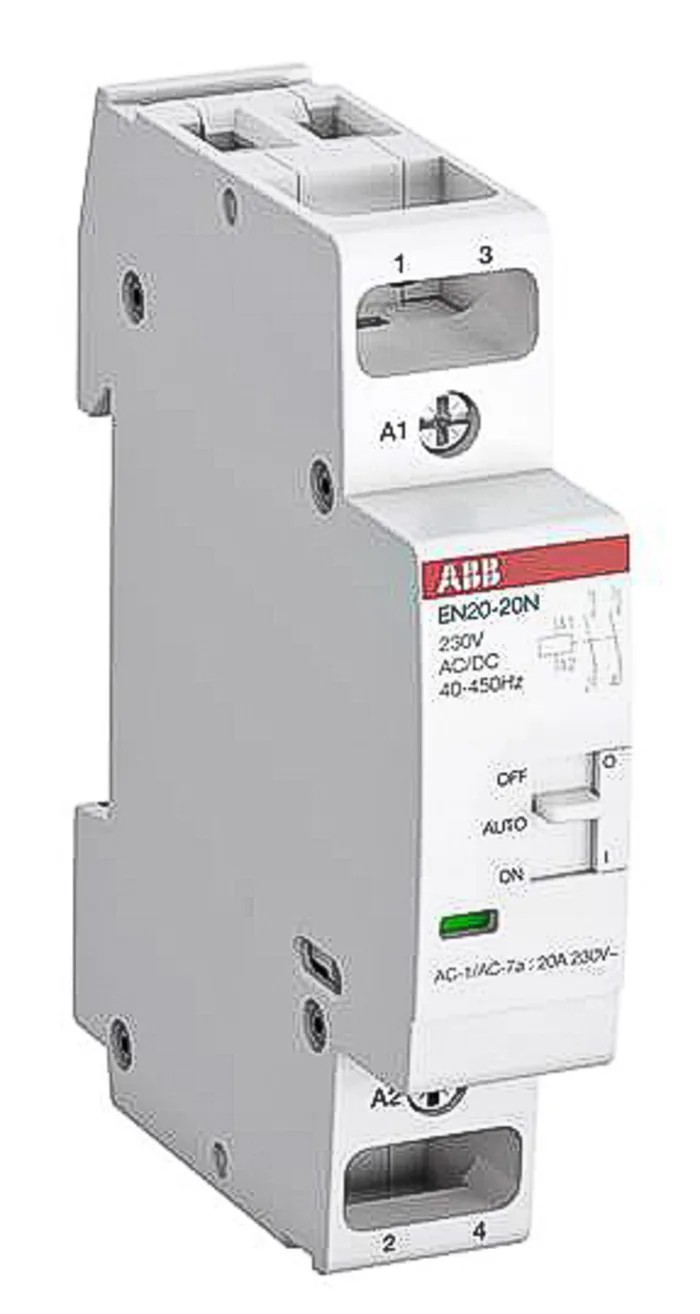

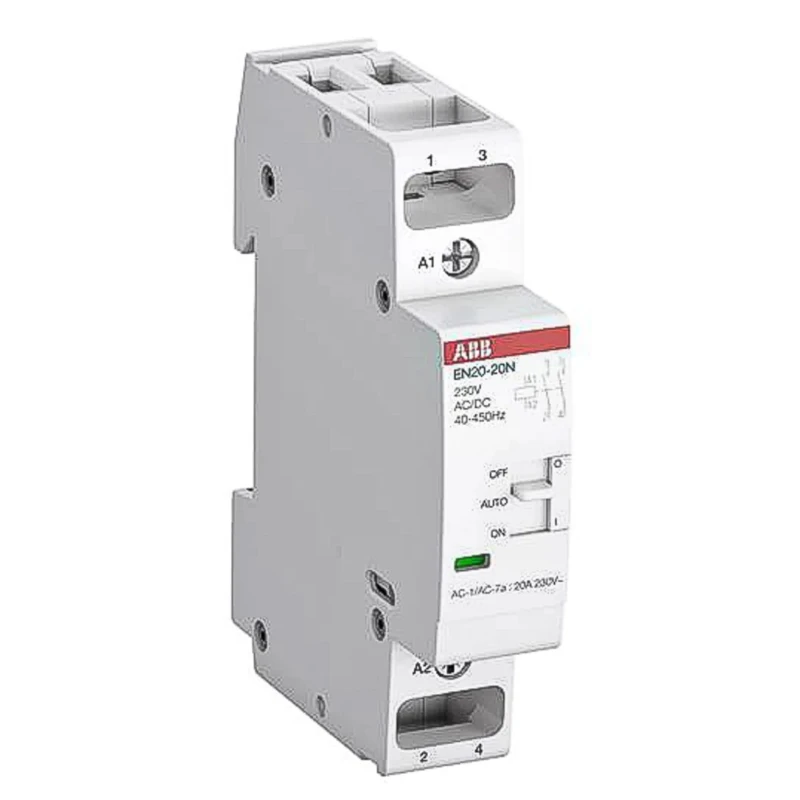

ABB EN20 Contactor, 230V AC Coil, 2-Pole, 20A, 4.6 kW, DIN Rail Mount 1SBE122111R0620

Free Delivery in India | Lowest Global Shipping Charges

ABB EN20 Contactor, 230V AC Coil, 2-Pole, 20A, 4.6 kW, DIN Rail Mount 1SBE122111R0620



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Load Control
Length	65mm
Model	1SBE122111R0620
Depth	85mm
Width	18mm
Mount Type	DIN Rail
Series	EN20
Power Rating	4.6kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	2
Standards/Approvals	UL, IEC, EN
Contact Voltage	230V ac
Coil Voltage	230V ac
Normal State Configuration	2 NO
Contact Current	20A
Operational Current Ie	9A
Control Circuit Voltage Uc	230V ac
Contactor Application	Safety
Pole and Throw Configuration	2

Key Features

Operates at 230V AC coil voltage with 2 poles for dual circuit control.
Rated contact current of 20A supports up to 4.6 kW power load at 230V AC.
Compact DIN rail mount design enables simple installation in control panels.
Includes screw-type terminals for secure wiring connections.
Built for safety applications with integrated overvoltage protection.
Wide operating temperature range from -25°C to 55°C for use in harsh environments.
Durable mechanical lifespan with 10 million cycles ensures long-term reliability.
Front-facing manual switch provides easy manual operation in three modes.

Product Description

ABB 1SBE122111R0620 EN20 series Contactor is designed for load control in industrial and domestic electrical systems, operating at 230V AC coil voltage with a current rating of 20A and power capacity of 4.6 kW.

This 2-pole contactor features a compact 65mm length, 18mm width, and 85mm depth housing that mounts easily on DIN rails, optimizing space in electrical cabinets. It is equipped with screw terminals for reliable electrical connections and supports a control circuit voltage of 230V AC.

The device includes integrated overvoltage protection and enables manual operation with 'On', 'Off', and 'Auto' states, enhancing control flexibility.

With a robust mechanical life of 10 million cycles and an operating temperature range from -25°C to +55°C, this contactor is suitable for demanding industrial environments including robotics, construction, and household appliances.

Its IP20 rating provides necessary protection against accidental contact and penetration of solid objects sized over 12mm. Operates at 230V AC coil voltage with 2 poles for dual circuit control. Rated contact current of 20A supports up to 4.6 kW power load at 230V AC.

Compact DIN rail mount design with screw terminals for secure wiring. Integrated overvoltage protection and manual override functionality. Suitable for harsh environments with operational temperature from -25°C to 55°C. Mechanical endurance of 10 million cycles guarantees longevity.

IP20 rated for protection against touch and solid objects over 12mm. Meets UL, IEC, and EN industrial standards for safety and reliability. This ABB EN20 contactor model 1SBE122111R0620 is ideal for precise load control in industrial automation, electrical panels, and commercial safety systems.
