Oetiker Stainless Steel Stepless O Clip Hose & Jubilee Clip 8mm Width, 12.8mm-15.3mm ID OET16700015

Free Delivery in India | Lowest Global Shipping Charges

Oetiker Stainless Steel Stepless O Clip Hose & Jubilee Clip 8mm Width, 12.8mm-15.3mm ID OET16700015

Name: Oetiker Stainless Steel Stepless O Clip Hose & Jubilee Clip 8mm Width, 12.8mm-15.3mm ID OET16700015
Brand: Oetiker
SKU: 158762
Price: 9.39 USD
Availability: InStock



Category Hose Clips & Jubilee Clips Brand Oetiker Condition New

Specifications

Country of Origin	Germany
Brand	Oetiker
Material	Stainless Steel
Model	OET16700015
Finish	Zinc Plated
Width	8mm
Standards/Approvals	RoHS, DIN EN ISO 9227
Minimum Inside Diameter	12.8mm
Maximum Inside Diameter	15.3mm
Clip Type	Stepless O Clip
Narrow band	concentrates transmission of clamping force, less weight
Stepless over 360°	uniform compression or uniform surface pressure
Clamp ear	compensates for component tolerances, adjustable surface pressure
Dimple	increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion
Burr-free strip edges	reduced risk of damage to parts being clamped

Key Features

Constructed from corrosion-resistant stainless steel.
Provides uniform compression with stepless design over 360 degrees.
Narrow band design concentrates clamping force while reducing weight.
Clamp ear allows adjustment to component tolerances and surface pressure.
Dimple enhances clamping force and compensates for thermal expansion changes.
Burr-free strip edges minimize risk of damage to clamped parts.

Product Description

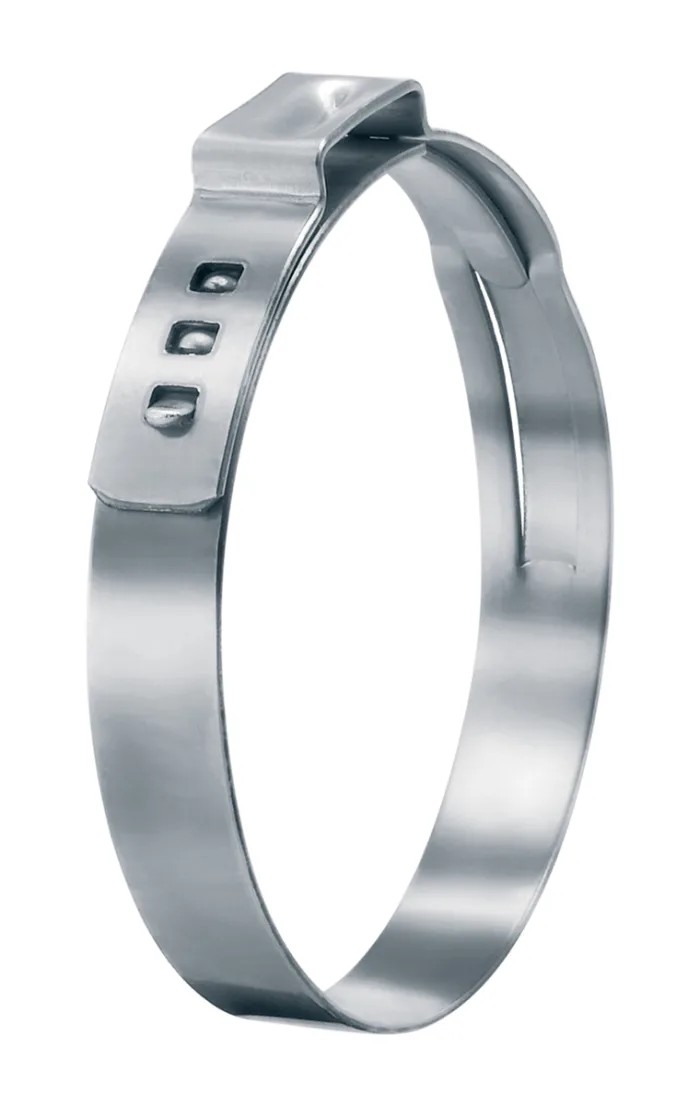

Oetiker OET16700015 is a high-quality stainless steel stepless O clip designed for hose and jubilee clip applications requiring reliable clamping performance. The clip features an 8mm band width and an inside diameter ranging from 12.8mm minimum to 15.3mm maximum, suitable for securing hoses and tubing with precision fit.

Manufactured with corrosion-resistant stainless steel and zinc plating, this clip delivers durability and resistance to harsh environments. Its stepless design allows for uniform compression around 360 degrees, ensuring consistent pressure distribution and secure fastening.

The narrow band construction contributes to effective clamping force transmission while reducing the overall weight of the clip, optimizing handling and installation ease. The clamp ear provides adjustability to accommodate component tolerances and offers controlled surface pressure to prevent damage.

Oetiker's characteristic dimple design enhances clamping force by introducing a spring-effect to compensate for diameter changes caused by thermal expansion. Additionally, burr-free strip edges protect the parts being clamped from possible damage during installation and use.

This product meets RoHS and DIN EN ISO 9227 standards, demonstrating compliance with environmental and corrosion resistance requirements. Originating from Germany, the clip is engineered for industrial, mechanical, fluid power, automotive, and manufacturing applications demanding reliable, high-performance hose clamps.

Constructed from corrosion-resistant stainless steel. Provides uniform compression with stepless design over 360 degrees. Narrow band design concentrates clamping force while reducing weight. Clamp ear allows adjustment to component tolerances and surface pressure.

Dimple enhances clamping force and compensates for thermal expansion changes. Burr-free strip edges minimize risk of damage to clamped parts. Explore the extensive range of Oetiker hose and jubilee clips on EnvMart for industrial fastening solutions.
