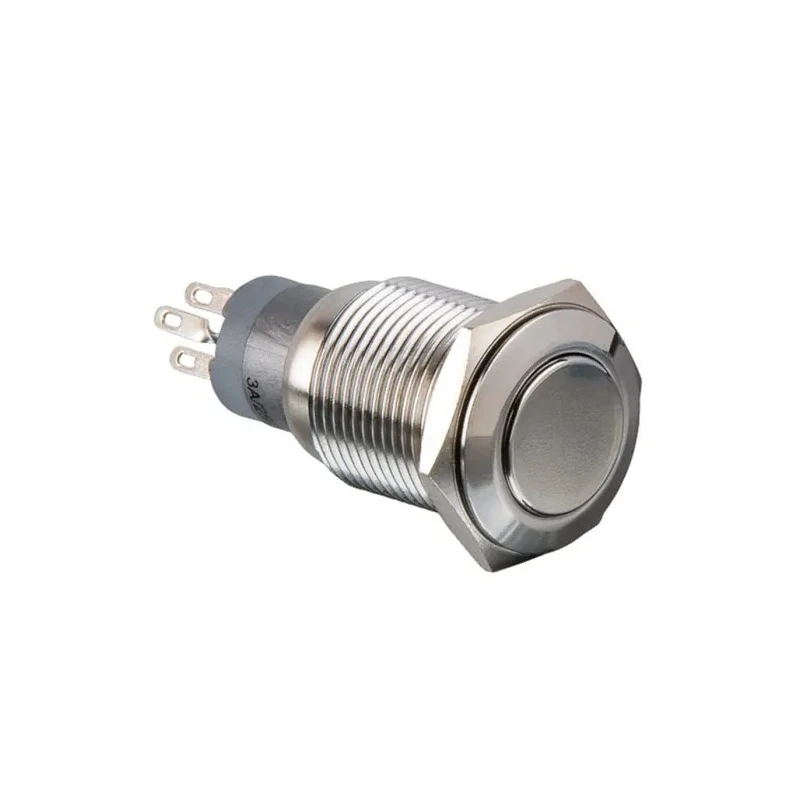

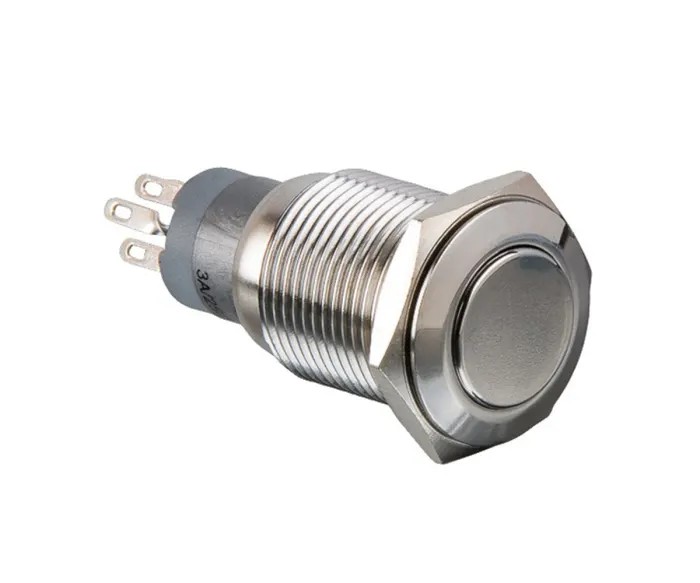

Arcolectric (Bulgin) Ltd MP0045 Series Push Button Switch Momentary Panel Mount 16.2 mm Cutout DPDT IP67 250 V AC MP0045
Specifications
| Country of Origin | China |
|---|---|
| Brand | Arcolectric (Bulgin) Ltd |
| Model | MP0045 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MP0045 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPCO |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Solder Tag |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 1A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a 16.2 mm panel cutout for easy installation.
- It has a Double Pole Double Throw (DPDT) contact configuration.
- This model is rated IP67, ensuring dust tightness and protection against immersion in water.
- The switch operates at 250 V AC and 250 V DC contact voltage ratings.
- The solder tag terminal type enables secure connections.
- It has a round actuator style with momentary operation.
- Operating temperature ranges from -20°C to 55°C.
- The switch is RoHS compliant, supporting safe and eco-friendly use.
Product Description
Arcolectric (Bulgin) Ltd MP0045 Series Push Button Switch is a high-quality momentary action switch designed for panel mounting in industrial and electrical automation systems. This DPDT (Double Pole Double Throw) switch features a 16.2 mm panel cutout making it compatible with various control panels and instrumentation enclosures.
The switch body is constructed from polished stainless steel, with anodised versions available, providing excellent durability and corrosion resistance suitable for demanding environments.
With an IP67 rating, the MP0045 switch offers reliable protection against dust ingress and temporary immersion in water, ensuring robust performance in harsh industrial, manufacturing, or outdoor conditions.
It operates safely at contact voltages of up to 250 V AC and 250 V DC, with a switch contact current rated at 1 A. The solder tag terminals facilitate secure and efficient wiring during installation.
The round actuator style provides a smooth momentary switch operation, appropriate for control functions that require temporary input signals such as start/stop commands or reset functions.
The switch features a 16.2 mm cutout size for panel mount installation. DPDT contact configuration allows switching of two circuits simultaneously. The IP67 rating ensures excellent protection against dust and water ingress.
Operates at 250 V AC/DC with 1 A contact current rating. Constructed with polished stainless steel body for enhanced durability. Momentary switch operation for temporary circuit activation. Solder tag terminals facilitate reliable wiring.
RoHS compliant for environmentally safe operation. Operating temperature range from -20°C to 55°C.
This Push Button Switch is ideal for electrical panels, industrial automation, machine controls, and laboratory instrumentation requiring durable and reliable switch operation. It supports use cases in manufacturing, HVAC control, and commercial electrical systems.
Explore the comprehensive range of industrial switches and components at EnvMart for optimized automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing it to switch two circuits simultaneously.
The switch requires a panel cutout size of 16.2 mm for proper installation.
It operates within a temperature range of -20°C to 55°C, making it suitable for various environments.
The switch is rated IP67, providing protection against dust ingress and temporary immersion in water.
It features solder tag terminals, which facilitate secure and efficient wiring during installation.
This model operates safely at contact voltages of up to 250 V AC and 250 V DC.
The switch has a contact current rating of 1 A, suitable for various applications.
It features a round actuator style, designed for smooth momentary operation.
Yes, this model is RoHS compliant, supporting environmentally safe operation.
The switch body is constructed from polished stainless steel, providing durability and corrosion resistance.
It is ideal for use in electrical panels, industrial automation, machine controls, and laboratory instrumentation.
This model operates as a momentary switch, allowing temporary circuit activation.
