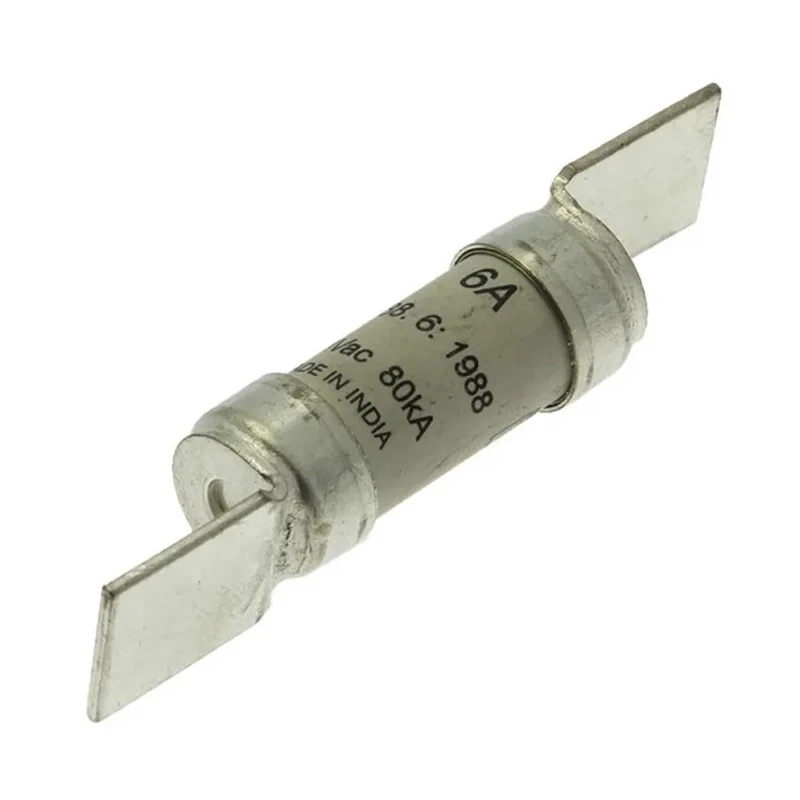

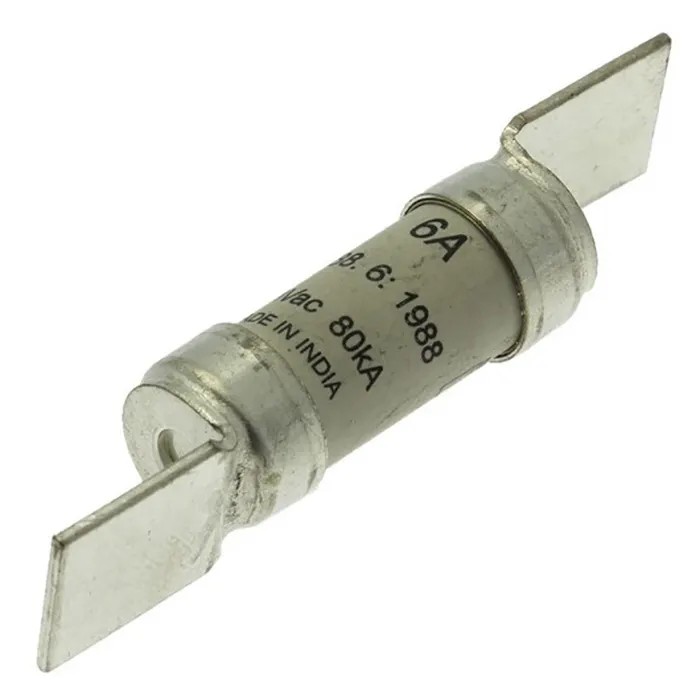

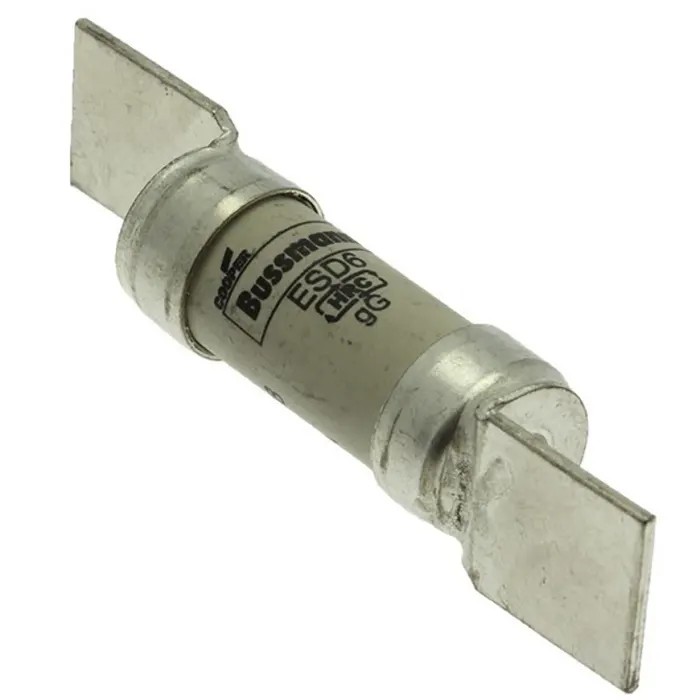

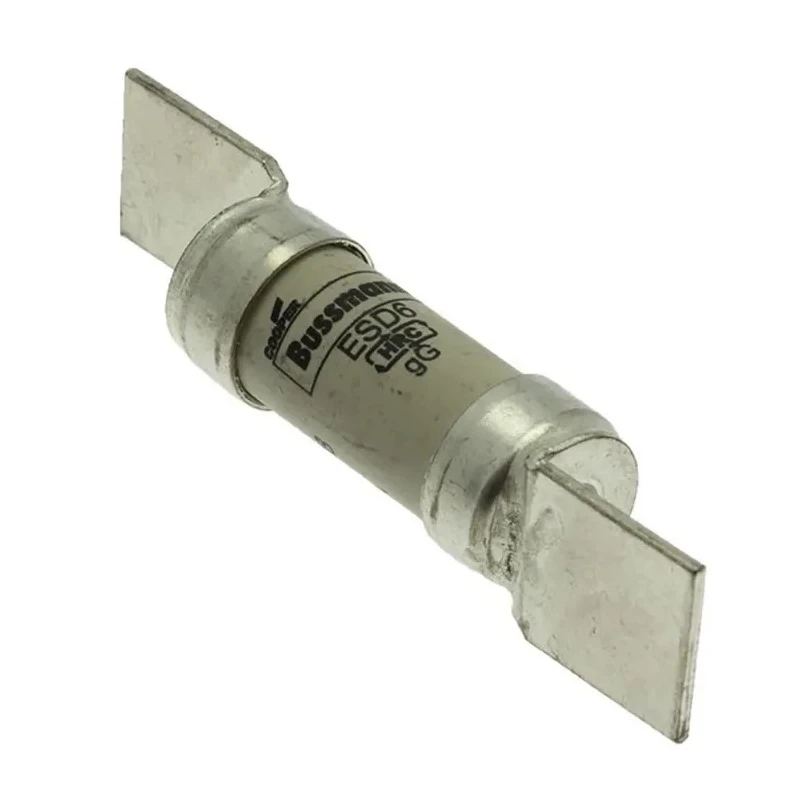

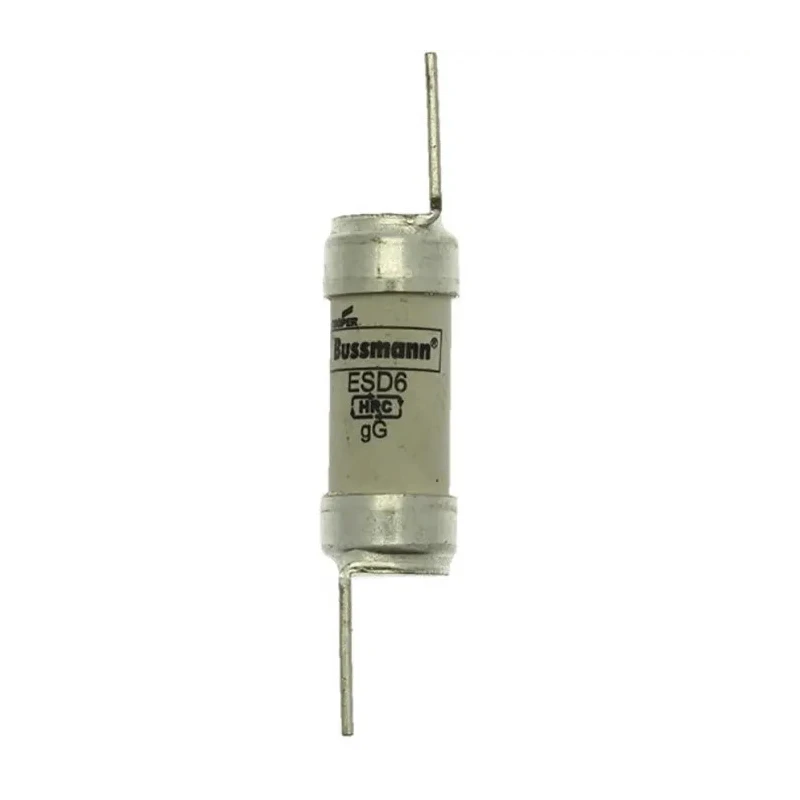

Eaton 6A Bolted Tag Fuse F2 550V ac High Rupture Capacity Offset Tag ESD6

Eaton ESD6 Bolted Tag Fuse F2 is a 6A, 550V ac fuse link engineered for effective protection of general industrial electrical systems, specifically targeting power distribution and cable safeguarding. This fuse is part of the Eaton Bussmann series and complies with IEC 60269-2, CE, and RoHS directives, ensuring reliability and international standards adherence.

The fuse includes a bolted offset tag design enabling secure mounting with fixing centres spaced at 68 mm. The physical construction measures overall length of 67 mm, 13.8 mm diameter, and 14 mm in both height and width, offering a compact yet robust form factor.

Designed for low voltage applications, it features a fuse size F2, suitable for industrial environments requiring high rupture capacity and selective coordination, protecting systems from power surges and faults efficiently. The fuse speed rating 'F' denotes a high let-through current limitation characteristic, ensuring optimum circuit protection performance.

Its tag width is 15 mm, providing compatibility with standard fuse holders designed for this series. Eaton fuse links have been trusted for years in manufacturing, water treatment, HVAC, commercial, and agricultural electrical installations requiring dependable circuit protection.

This product is manufactured in India, maintaining Eaton's quality standards. The fuse delivers good peak let-through current limitation and specific selectivity rates to coordinate with major and minor fuse elements, enhancing system safety.

The fuse features a high rupture capacity for safe interruption of fault currents. Offset tag design allows secure bolted fixing at 68 mm centers. Fuse size is F2 with a tag width of 15 mm for compatibility with Eaton Bussmann series.

Constructed to IEC 60269-2 standards with CE and RoHS compliance. Physical dimensions include overall length 67 mm, diameter 13.8 mm, height and width 14 mm each. Fuse speed is classified as 'F' for high let-through current limitation.

It offers a selective coordination ratio of 1:1:6 between minor and major fuses. Applicable in general industrial use cases including power distribution units and cable protection. Explore the Eaton fuse range for robust and reliable electrical protection solutions at EnvMart.
