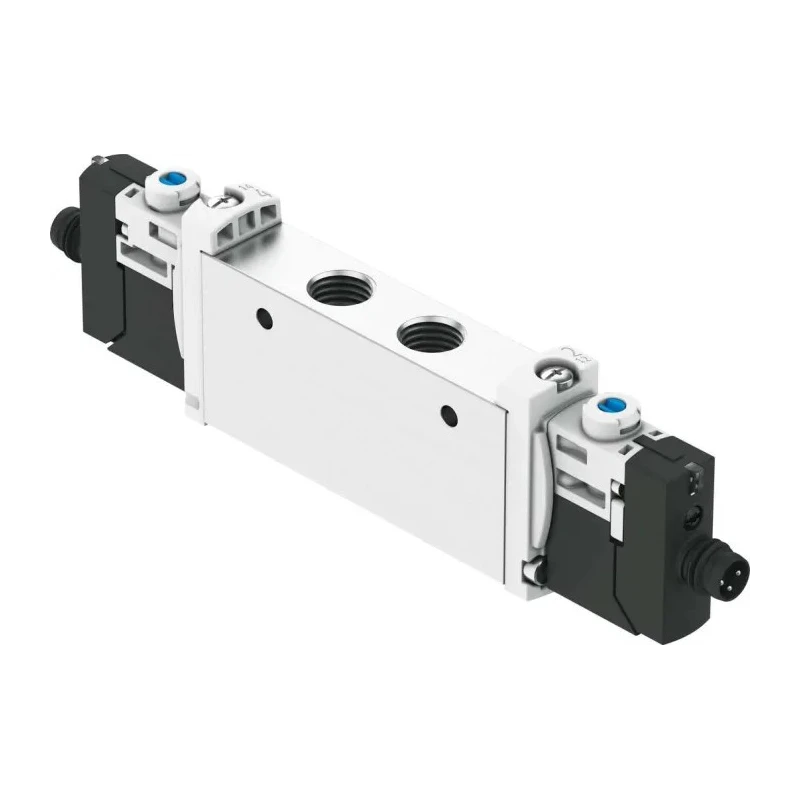

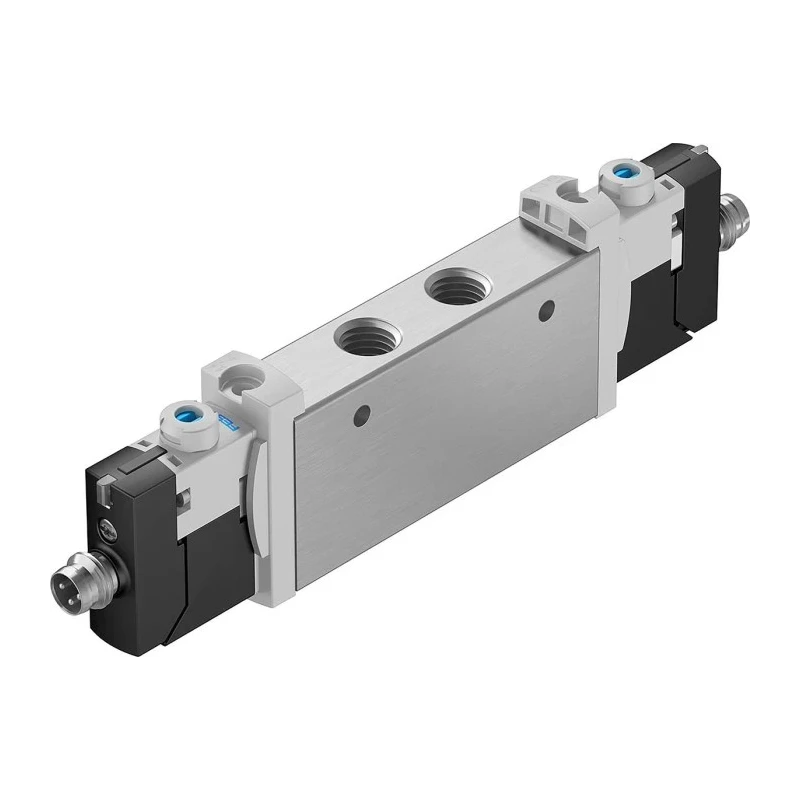

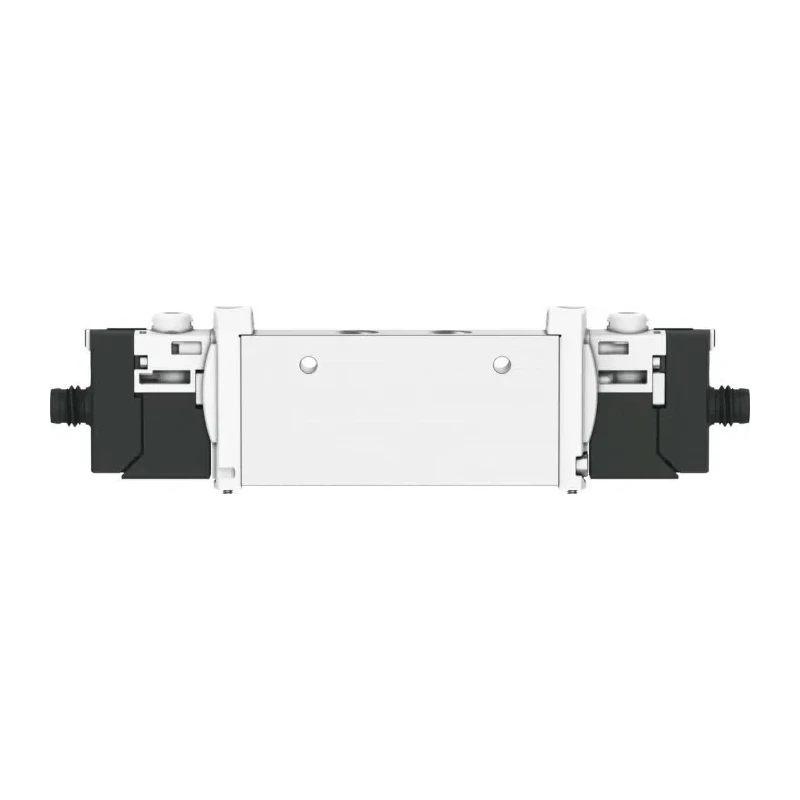

Festo Pneumatic Solenoid Valve 5/2, G 1/8 Port, Aluminium Alloy Body, 24V DC, 1W Solenoid Power, 8 VUVG-L14-B52-T-G18-1R8L
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Model | VUVG-L14-B52-T-G18-1R8L |
| Width | 14mm |
| Mount Type | In-Line |
| Series | VUVG |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 780L/min |
| Standards/Approvals | cULus, CSA, RoHS |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Electrical Connection Plate |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- Bistable 5/2 valve design suitable for double-acting cylinders.
- Operates at maximum pressure of 8 bar with flow rate up to 780 L/min.
- Durable aluminium alloy housing ensures robust performance.
- Sealed with nitrile rubber (NBR) for tight sealing and reliability.
- Compact 14mm width and lightweight 89g design for easy mounting.
- Wide operating temperature range from -5°C to 60°C.
- Energy efficient single solenoid with 1W power consumption.
- Rated IP65 for protection against low-pressure water spray.
Product Description
Festo VUVG-L14-B52-T-G18-1R8L pneumatic solenoid valve offers reliable airflow control in industrial and manufacturing automation systems. This 5/2 bistable valve features a single solenoid actuation operating at 24V DC with a power consumption of 1 watt, optimized for energy efficiency. Its aluminium alloy body provides robust mechanical strength and corrosion resistance, ideal for demanding operational environments.
The valve includes five ports and two switching positions, perfectly suited for controlling double-acting cylinders in pneumatic applications. Equipped with nitrile rubber seals (NBR), it ensures dependable leak-tight performance.
Operating at pressures up to 8 bar and supporting a maximum flow rate of 780 liters per minute, the valve accommodates medium-flow pneumatic systems with ease. Its compact form factor - only 14mm wide - and lightweight construction (approximately 89 grams) simplify installation and reduce system weight.
The unit maintains functionality within an ambient temperature range from -5°C to 60°C, allowing use in diverse industrial climates. It is protected by an IP65 rating, guarding internal components from low-pressure water jets and dust ingress, supporting longevity in harsh settings.
Standardized female G 1/8 thread ports facilitate compatibility with common pneumatic tubing and fittings. Electrical connection is via an electrical connection plate, supporting streamlined integration.
This valve is manufactured in Germany, a hallmark of high quality engineering. It is compliant with relevant safety and environmental standards including cULus, CSA, and RoHS certifications, ensuring reliability and regulatory conformity.
Bistable 5/2 valve suitable for automated pneumatic control in industrial applications. Corrosion-resistant aluminium alloy body. Energy-saving single solenoid design consuming just 1 watt. Wide operating temperature range from -5°C to 60°C.
IP65 rated for protection against water and dust. Supports pressures up to 8 bar and 780 L/min flow rate. Compact size and lightweight construction facilitate easy installation. Standard G 1/8 female ports ensure broad compatibility.
Certified to cULus, CSA, and RoHS standards.
Ideal for use in industrial automation, pneumatic control systems, manufacturing equipment, and process control. Explore more Pneumatic Solenoid Valves at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 8 bar.
It supports a maximum flow rate of 780 liters per minute.
This pneumatic solenoid valve operates at a voltage of 24V DC.
The valve has a compact width of 14mm and weighs approximately 89 grams.
It uses nitrile rubber (NBR) for sealing, ensuring reliable performance.
The operating temperature range for this model is from -5°C to 60°C.
This valve features five ports and two switching positions.
It is certified to cULus, CSA, and RoHS standards.
This model uses single solenoid actuation.
The connection thread standard is G 1/8.
The body of this valve is made from aluminium alloy, providing corrosion resistance.
The electrical connection is made via an electrical connection plate.
