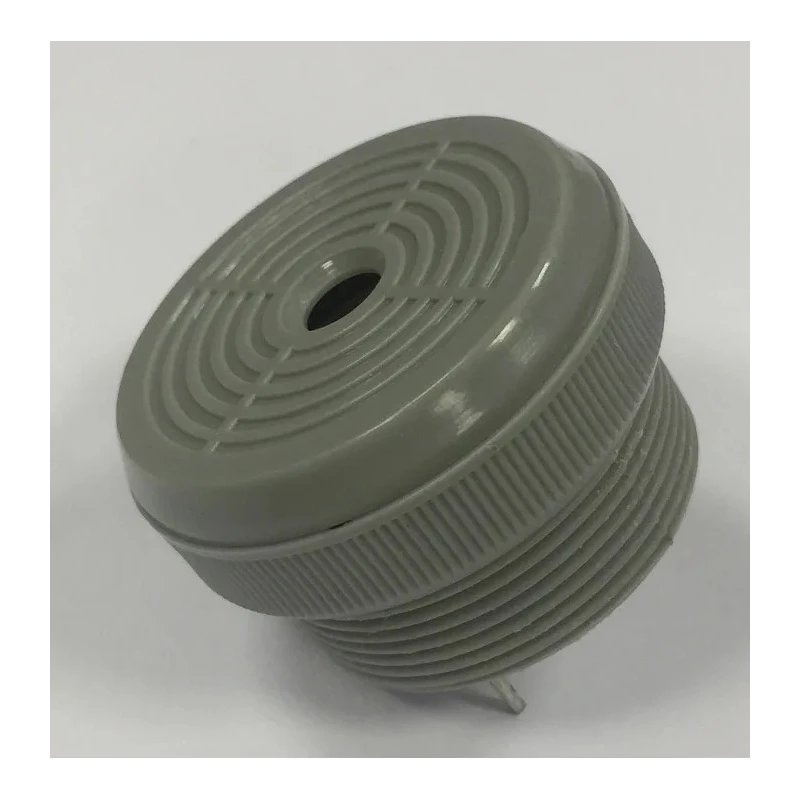

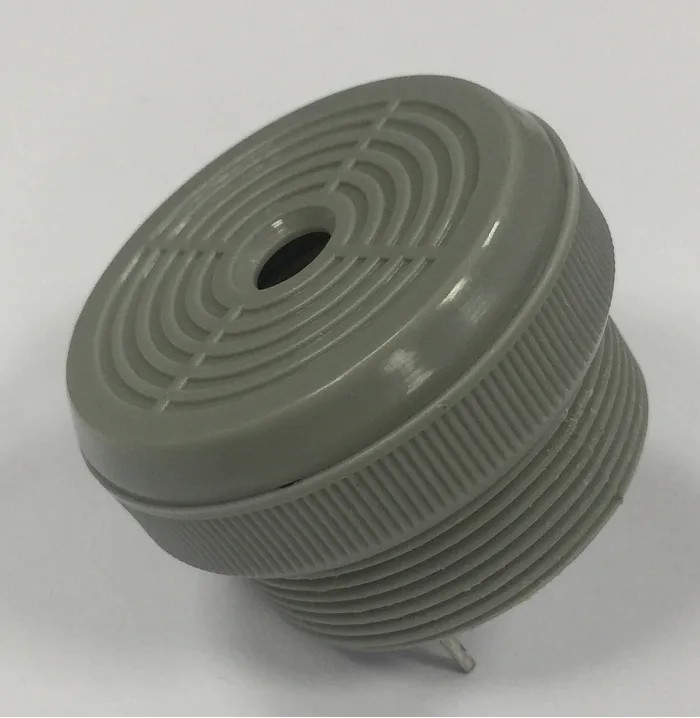

RS PRO Piezo Buzzer Component Through Hole Continuous Internal 36.5 mm Diameter 23.5 mm Height 98 dB Sound Level 181-2690

RS PRO 181-2690 is a precision-engineered Piezo Buzzer Component designed for electronic and electrical assemblies requiring reliable audio indication. Featuring a through hole mount type with pin termination, it ensures robust and stable connection to printed circuit boards.

This buzzer operates with a wide voltage range from 0.7 V dc minimum to 15 V dc maximum, making it suitable for low to medium power applications. The continuous internal drive produces a steady tone, delivering a sound level of 98 dB, which is audible in noisy industrial and commercial environments.

The buzzer's physical dimensions include a diameter of 36.5 mm and a height of 23.5 mm, offering a compact form factor for space-constrained designs. Its operating temperature range from -30°C to 80°C supports use in varying conditions, including harsh industrial settings.

It is RoHS compliant, ensuring adherence to environmental standards by limiting use of hazardous substances in electronic components. The supply current of 20 mA allows for efficient operation with minimal power consumption.

Typical industrial applications include audio signaling in electronic instruments, control panels, alarms, and communication systems where a reliable and continuous tone is required for alerts and notifications.

Mount type is through hole for secure PCB integration. Operating temperature ranges from -30°C to 80°C for varied environments. Internal drive type produces a continuous tone. Height of 23.5 mm facilitates compact assembly.

Pin termination style ensures reliable electrical connection. RoHS compliant ensuring environmental safety. Frequency range spans 3.1 kHz to 4.1 kHz for clear audio signaling. Supply current is rated at 20 mA for efficient performance.
