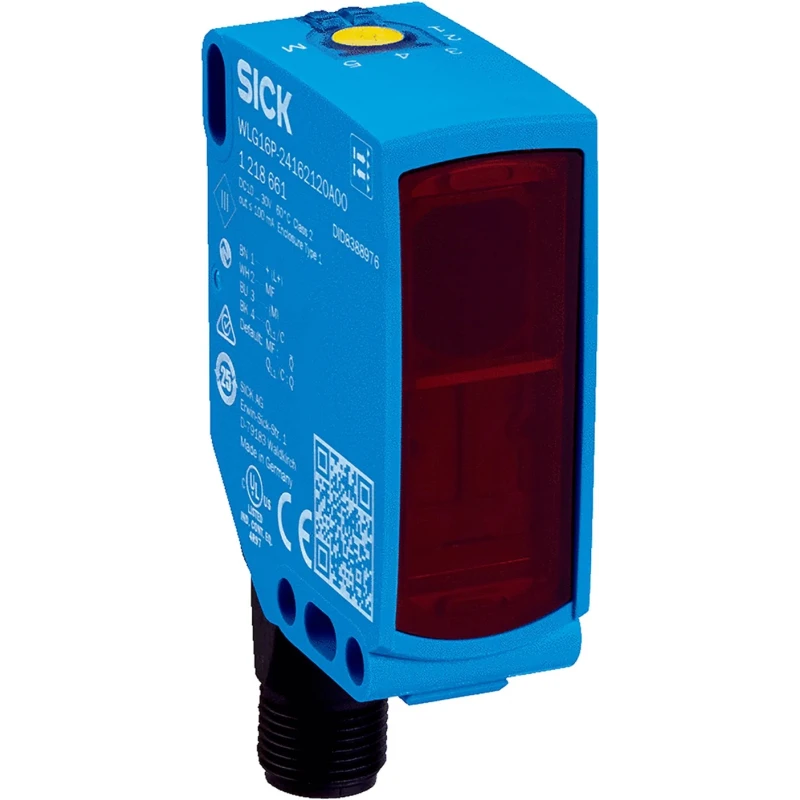

SICK Retroreflective Photoelectric Sensor Block Sensor 0 to 5 m Detection Range NPN/PNP Output IP66 IP67 WLG16P-24162120A00
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 0.5ms |
| Light Source | Pin Point LED |
| Detection range | 0 → 5 m |
| Model | WLG16P-24162120A00 |
| IP Rating | IP66, IP67, IP69K |
| Mount Type | Hole |
| Housing Material | Plastic, Vistal |
| Output type | NPN/PNP |
| Series | W16 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | M12 Connector (4-Pin) |
| Interface Type | IO-Link V1.1 |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, cULus Recognized, UL NRKH7.E181493, UL NRKH.E181493 |
| Materials Detected | Transparent Object |
| Sensor Style | Block |
Key Features
- Pin Point LED light source enables detection of transparent objects with high precision.
- Robust plastic and Vistal housing provides corrosion resistance and lightweight durability.
- Features IP66, IP67, and IP69K ingress protection for reliable operation in wet and dusty industrial environments.
- 4-pin M12 connector ensures secure and quick installation with minimal wiring effort.
- 0.5 millisecond response time supports high-speed detection required in fast cycle automation applications.
- Operating temperature range from minus 40 to 60 degrees Celsius suits extreme temperature industrial settings.
- CE certified and cULus recognized for regulatory compliance and industrial safety standards.
- Designed for industrial automation use including bottle presence detection, part counting, and packaging machinery.
Product Description
SICK WLG16P-24162120A00 Retroreflective Photoelectric Sensor Block Sensor features a detection range of 0 to 5 meters utilizing a retro-reflective optical arrangement. It employs a pin-point LED light source capable of sensing transparent objects, integrating with industrial automation systems via dual NPN/PNP outputs and IO-Link V1.1 communication protocol. The sensor's housing is constructed from durable plastic and Vistal materials, providing excellent resistance to corrosion and chemical exposure, while maintaining lightweight for flexible deployment.
This sensor supports rapid object detection with a 0.5 millisecond response time, ensuring efficient cycle throughput in manufacturing and packaging machinery. It offers superior ingress protection ratings of IP66, IP67, and IP69K, enabling reliable operation in harsh environmental conditions including dust, moisture, and wash-down areas. Electrical connection is facilitated by a 4-pin M12 connector, simplifying installation and maintenance.
Operating across a broad temperature range from -40°C to 60°C, this sensor is suitable for extreme industrial conditions. It is CE marked and cULus recognized, meeting stringent industrial safety and quality standards. Applications include transparent bottle presence detection on filling lines, conveyor-based part counting in wash-down environments, and object sensing for fast cycle packaging processes. The sensor requires a compatible reflector for retro-reflective operation, with recommended reflectors PL80A, PL30A, and C110 available separately.
Pin Point LED light source for detecting transparent materials. Plastic and Vistal housing ensures corrosion resistance and durability. Ingress protection IP66, IP67, IP69K suitable for harsh industrial environments. 4-pin M12 connector enables easy electrical connections.
0.5 ms response time supports high-speed automation tasks. Wide temperature operating range from -40 to 60 °C. CE Certified and cULus Recognized for industrial compliance. IO-Link V1.1 interface for efficient system integration and diagnostics.
Ideal for packaging, conveyor, and filling line applications. For more advanced sensor and automation solutions, explore the EnvMart electronics and sensor categories designed to meet industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 0 to 5 meters.
It has a response time of 0.5 milliseconds, supporting high-speed detection.
This sensor features dual NPN/PNP outputs, allowing for versatile integration into automation systems.
It has an ingress protection rating of IP66, IP67, and IP69K, making it suitable for harsh environments.
This model is designed to detect transparent objects, utilizing a pin-point LED light source.
It operates effectively in a temperature range from -40°C to 60°C.
The sensor uses a 4-pin M12 connector for electrical connections, facilitating easy installation.
The housing is made from plastic and Vistal, providing corrosion resistance and lightweight durability.
It supports the IO-Link V1.1 communication protocol for efficient system integration.
It is CE certified and cULus recognized, ensuring compliance with industrial safety standards.
It is suitable for applications such as bottle presence detection, part counting, and packaging machinery.
