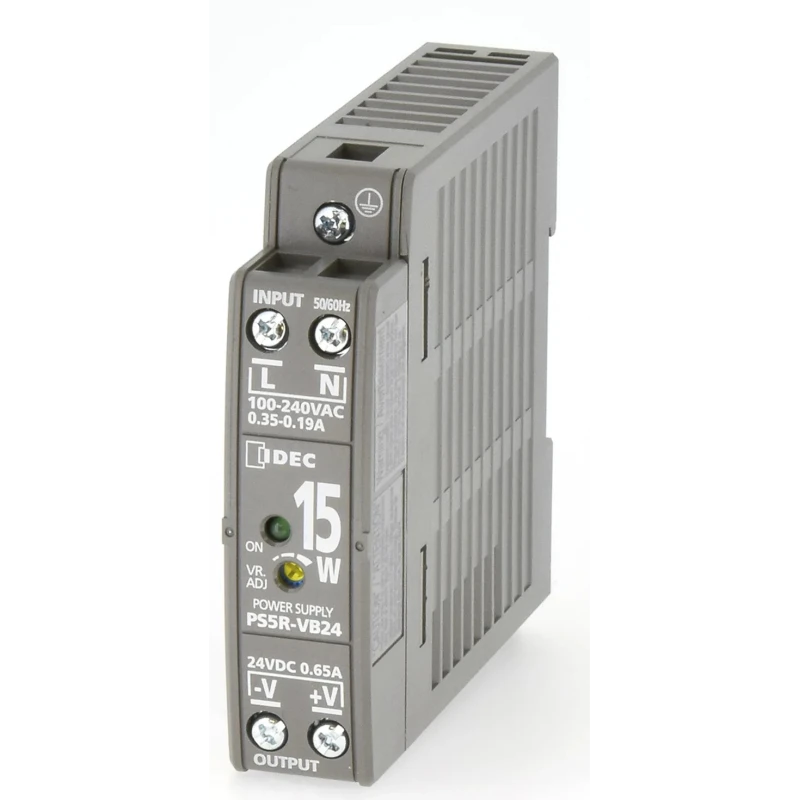

Idec PS5R Switched Mode DIN Rail Power Supply 1 Phase 24V dc 650mA Output 15W PS5R
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Idec |
| Power | 15W |
| Efficiency | 84% |
| Height | 90mm |
| Model | PS5R |
| Depth | 95mm |
| Width | 22.5mm |
| Series | PS5R |
| Output Current | 650mA |
| Maximum Operating Temperature | 75°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
| cULus, EN 60950-1, EN 61204-3, UL 310, CSA C22.2 No 107.1.213.223, ANSI/ISA, CE | TUV, UL 508, EN 50178 |
Key Features
- Compact design with a slim width of 22.5mm allows space-saving panel installations.
- Supports AC/DC input voltage ranges up to a maximum of 370V dc or 264V ac.
- Operates efficiently at 84% conversion efficiency to minimize energy loss.
- Suitable for harsh environments with an operating temperature range from -25°C to 75°C.
- Complies with multiple safety standards including cULus, EN 60950-1, and UL 508.
- Features spring up terminal wiring compatible with ring terminals for secure electrical connections.
- Can be installed in six different mounting directions enhancing installation flexibility.
- Includes an optical mounting bracket option for panel mounting applications.
Product Description
Idec PS5R switched mode DIN rail power supply is a high-quality industrial power solution that delivers 15 watts of power with a stable 24V DC output at 650mA, designed for use in control systems, automation, and electronic components.
The product operates from a wide input voltage range accepting AC or DC input voltages up to 370V DC or 264V AC, ensuring compatibility with diverse power sources. Its compact dimensions of 90mm height, 22.5mm width, and 95mm depth facilitate easy installation in confined spaces.
Engineered with an efficiency rating of 84%, this PS5R series power supply minimizes energy losses and reduces heat generation, improving overall system reliability. The product is certified to international safety standards including cULus, EN 60950-1, UL 508, and others, guaranteeing safe operation in industrial environments.
The unit supports an extended operating temperature range from -25°C to 75°C, making it versatile for use in varied industrial conditions. The spring up terminal design simplifies wiring and allows secure attachment of ring terminals, promoting durability of connections.
Installation is highly flexible with the ability to mount the power supply in six different orientations. An optical mounting bracket is also available to adapt DIN rail installation to panel mount configurations.
Manufactured in Taiwan, Province of China, the PS5R series represents reliable power supply products for industrial automation, control panels, and electronic applications demanding dependable DC power. Its slim and modular design aligns well with modern DIN rail mounted systems.
Compact slim size measuring 22.5mm width for space efficiency. Supports a single output of 24V DC at 650mA current. Accommodates input voltage range including 85V AC minimum up to 370V DC maximum. Operating temperature from -25 to 75 degrees Celsius ensures robustness.
Compliance to multiple global standards enhances safety and interoperability. Spring up terminal accommodates wiring with ring terminals for secure connection. Can be mounted in six different orientations for installation versatility.
Optional optical mounting bracket available for panel mounting adaptation. High efficiency at 84% minimizes power loss and heat generation. Ideal for industrial, electronic, control system, and automation power applications.
Explore additional Idec power supplies and components on EnvMart for comprehensive industrial power solutions.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power supply provides a stable output of 24V DC at a current of 650mA.
It can accommodate a maximum input voltage of 370V DC or 264V AC.
This model operates with an efficiency rating of 84%, minimizing energy loss during operation.
The power supply has a height of 90mm, a width of 22.5mm, and a depth of 95mm.
It operates efficiently within a temperature range of -25°C to 75°C.
It features spring up terminal wiring that is compatible with ring terminals for secure electrical connections.
This power supply can be installed in six different mounting directions, providing installation flexibility.
It complies with multiple safety standards including cULus, EN 60950-1, and UL 508.
Yes, an optical mounting bracket option is available for panel mounting applications.
The power output of this unit is 15W, suitable for various industrial applications.
This power supply is manufactured in Taiwan, Province of China.
