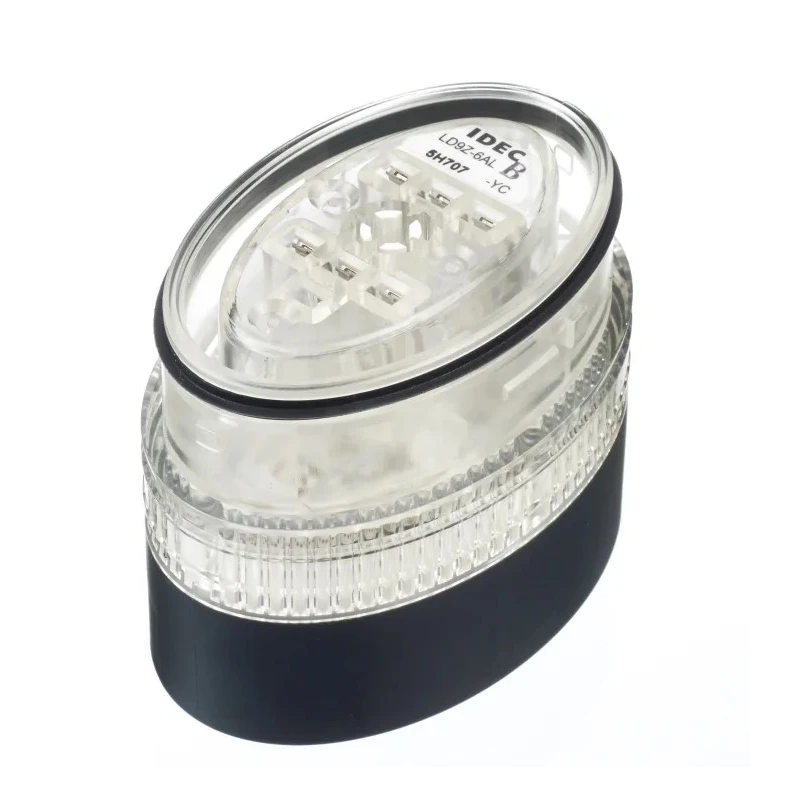

Idec Yellow Beacon 24V AC/DC Steady Flashing LED Light with Wall, Pole, Frame, Direct Mount LD9Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Model | LD9Z |
| IP Rating | IP65, IP54 |
| Mount Type | Wall, Pole, Frame, Direct |
| Housing Material | ABS Resin (Housing), Steel (Nickel Chrome Plated) (Pole), Resin (Lens), Die Cast Aluminium (Pole Stand) |
| Bulb Type | LED |
| Series | LD9Z |
| Maximum Operating Temperature | 55°C |
| Current Type | AC/DC |
| Current consumption | 25mA |
| Minimum Operating Temperature | -25°C |
| Base Diameter | 60mm |
| Lens Colour | Yellow |
| Maximum Supply Voltage | 24V ac/dc |
| Housing Colour | Black |
| Light Effect | Steady, Flashing |
| Flashing cycle | 1.75 Hz (approx. 105 flashes per second) |
Key Features
- The beacon features multiple mounting options including wall, pole, frame, and direct mount.
- It uses energy-efficient LED bulb technology with a current consumption of 25mA.
- Constructed with ABS resin housing and metal components for durability and IP65/IP54 protection ratings.
- The flashing cycle operates at approximately 1.75 Hz for high visibility.
- Operates reliably within a temperature range from -25°C to 55°C.
- Includes ergonomic alarm sound options with adjustable volume for enhanced safety signalling.
- Complies with multiple industrial standards including UL508 and IEC series approvals.
- Compact design with a base diameter of 60mm and black housing color.
Product Description
Idec LD9Z series yellow beacon 24V AC/DC combines the latest LED technology with robust construction to deliver steady and flashing light effects for industrial signalling applications. Designed for effective factory automation and safety signalling, this beacon provides multiple mounting methods including wall, pole, frame, and direct mounting.
The beacon utilizes a clear yellow lens and super bright LEDs, providing high visibility with minimal light disturbance. It has a flashing cycle of approximately 1.75 Hz (around 105 flashes per minute), ensuring attention-catching signalling for diverse industrial scenarios.
Constructed with ABS resin housing, resin lens, and nickel chrome plated steel components, along with a die-cast aluminium pole stand, it offers excellent durability and weather resistance with IP65 and IP54 protection ratings. Its compact base diameter of 60mm allows integration into various control panels and equipment.
Additional features include an ergonomic alarm sound operating at 3.3 kHz, with two selectable sound types and adjustable volume ranging from 70 to 90 dB, effectively spreading alarms in a 360° radius. This makes it extremely suitable for safety and warning signalling in manufacturing plants, automation systems, and HVAC setups.
The device operates reliably in a temperature range from -25°C to 55°C and supports both AC and DC current types with a maximum supply voltage of 24V. It complies with multiple international approvals such as UL508, IEC60947-5-1, IEC60664-1, IEC60529, IEC60073, EN60947-5-1, and CSA C22.2 No.14, evidencing its high industrial standards.
The beacon's clear lens type and customized configurations enable tailored solutions for different application needs. Its design emphasizes high-visibility from multiple directions thanks to Idec's unique lens shape. The flashing and steady light effects provide flexible signalling options for operators.
Multiple mounting accessories allow quick and secure installation in various setups. The beacon is an ideal component in factory automation, industrial control, manufacturing, and safety alert systems.
Overall, the Idec LD9Z yellow beacon is a reliable, versatile, and high-performance signalling device, engineered for demanding industrial environments requiring efficient visual and audio alerts.
Explore more automation signalling solutions and LED lighting products in the Electronics & Electricals category on EnvMart.
Explore more products in our Automation Signalling Beacon category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Idec LD9Z beacon is 24V AC/DC.
This model has a current consumption of 25mA.
The beacon has IP65 and IP54 protection ratings, making it suitable for various environmental conditions.
It features multiple mounting options including wall, pole, frame, and direct mounting.
It operates reliably within a temperature range from -25°C to 55°C.
The flashing cycle operates at approximately 1.75 Hz, which is around 105 flashes per minute.
The housing is made of ABS resin, with steel components that are nickel chrome plated, and a die-cast aluminium pole stand.
The beacon provides both steady and flashing light effects.
The base diameter of this model is 60mm.
It includes ergonomic alarm sound options with adjustable volume, ranging from 70 to 90 dB.
The device complies with multiple standards including UL508, IEC60947-5-1, and CSA C22.2 No.14.
The lens color of the Idec LD9Z beacon is yellow.
