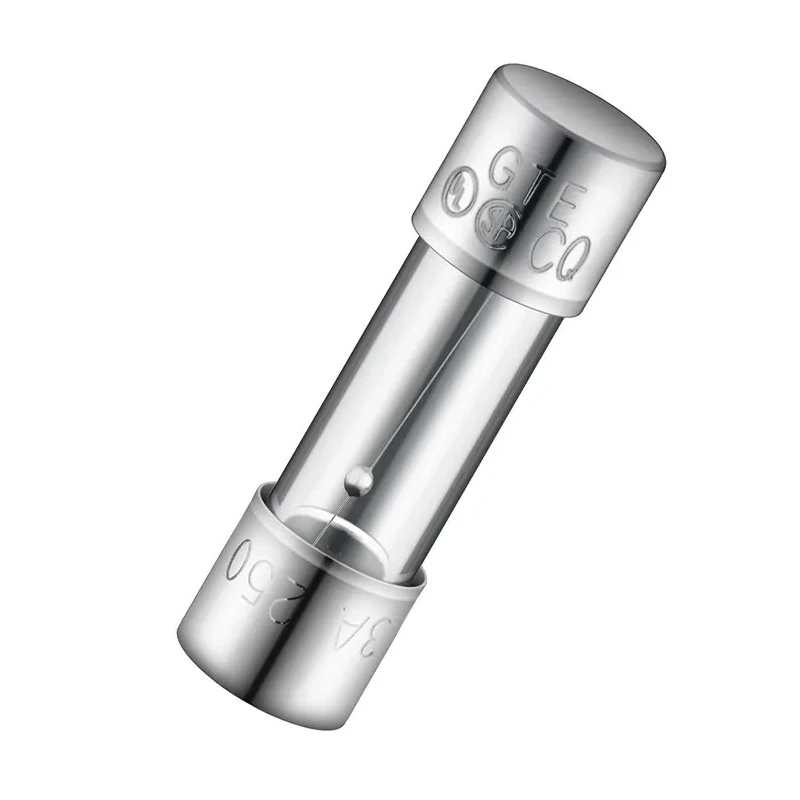

RS PRO 3A Time Lag Glass Cartridge Fuse, 5 x 20 mm, 250V AC, Glass Body, T Speed Rating 177-8086
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 5.2mm |
| Brand | RS PRO |
| Body Material | Glass |
| Model | 177-8086 |
| Overall Length | 20mm |
| Current Rating | 3A |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, CSA, KTL, PSE GTE, UL |
| Fuse Characteristics | Time Lag |
| Fuse Size | 5 x 20 mm |
Key Features
- Features a glass body construction that allows visual inspection for fuse status.
- Standard 5 x 20 mm size suitable for panel and board protection.
- Time Lag (T) speed rating for slow acting and anti-surge applications.
- Rated for 3A current and 250V AC voltage operation.
- Low breaking capacity designed for moderate fault current protection.
- Operates within a temperature range of -55 to 125°C.
- Complies with RoHS, CSA, KTL, PSE GTE, and UL standards.
- Ideal for industrial, commercial, home, and automotive electrical protection uses.
Product Description
RS PRO 177-8086 is a 3A Time Lag Glass Cartridge Fuse with a 5 x 20 mm size and 250V AC rating, designed for effective protection of electrical devices and internal circuits from short circuits and overcurrent conditions.
The glass body allows clear visual indication of fuse status, facilitating easy maintenance and replacement when blown. The fuse employs a T speed rating, meaning it is slow acting and anti-surge, capable of withstanding transient current surges without blowing immediately, which makes it well-suited for applications requiring tolerance to momentary high current flows.
This fuse has a low breaking capacity (LBC), which defines the maximum fault current it can safely interrupt without damage. Its operating temperature range from -55°C to 125°C ensures reliability in demanding environments. The RS PRO series fuse conforms to multiple international standards including RoHS, CSA, KTL, PSE GTE, and UL, ensuring compliance and quality.
Typical applications for this cartridge fuse include protection for motors, air conditioners, refrigerators, pumps, and other electrical appliances in industrial, commercial, residential, and automotive sectors. It is a reliable and economical solution for safeguarding electrical circuits against overload and short circuit damage.
The compact 5 x 20 mm cartridge size is popular in panel and board installations and fits standard fuse holders for easy integration. Users benefit from the fuse's robust time lag characteristic, enhancing protection during transient faults while minimizing nuisance fuse blows.
Glass body construction allows visual fuse status inspection. Standard 5 x 20 mm cartridge size compatible with common fuse holders. Time Lag "T" characteristic for anti-surge capability. 3A current rating at 250V AC for varied electrical applications.
Low breaking capacity designed for safe circuit protection. Wide operating temperature range from -55°C to 125°C. Complies with RoHS, CSA, KTL, PSE GTE, and UL certifications. Ideal for use in industrial, commercial, home, and automotive equipment protection.
Explore more high-quality fuses and circuit protection devices in the Cartridge Fuse category at EnvMart for your industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse is rated for 3A current.
It has a voltage rating of 250V AC.
The fuse has a diameter of 5.2 mm and an overall length of 20 mm.
It operates within a temperature range of -55°C to 125°C.
This model features a Time Lag (T) characteristic, making it slow acting and suitable for anti-surge applications.
The body of the fuse is constructed from glass, allowing for visual inspection of the fuse status.
It complies with RoHS, CSA, KTL, PSE GTE, and UL standards.
This fuse is suitable for protecting motors, air conditioners, refrigerators, pumps, and other electrical appliances in various sectors including industrial, commercial, residential, and automotive.
The low breaking capacity is designed for moderate fault current protection, ensuring safe interruption of fault currents without damage.
Yes, the 5 x 20 mm size is compatible with common fuse holders, making it easy to integrate into panel and board installations.
The T speed rating indicates that this fuse is slow acting and can withstand transient current surges without blowing immediately, which helps minimize nuisance fuse blows.
The fuse is manufactured in Taiwan.
