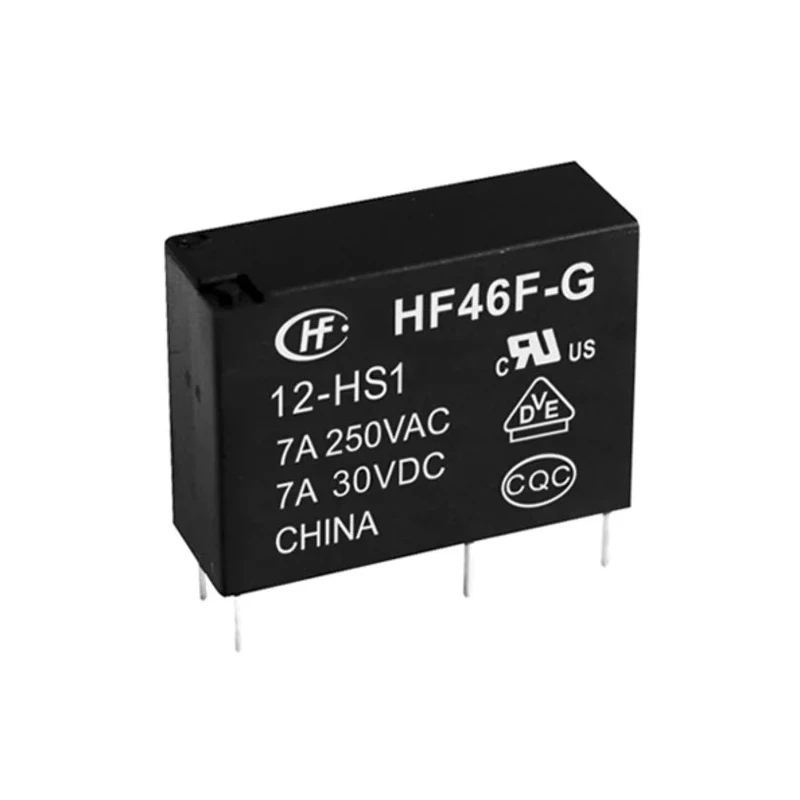

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 10A Switching Current SPST HF46F-G/12-HS1F(610)

Free Delivery in India | Lowest Global Shipping Charges

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 10A Switching Current SPST HF46F-G/12-HS1F(610)

Name: Hongfa Europe GMBH PCB Power Relay 12V dc Coil 10A Switching Current SPST HF46F-G/12-HS1F(610)
Brand: Hongfa Europe GMBH
SKU: 152885
Price: 2.74 USD
Availability: InStock



Category Power Relays Brand Hongfa Europe GMBH Condition New

Specifications

Country of Origin	China
Brand	Hongfa Europe GMBH
Height	15.3mm
Length	20.5mm
Model	HF46F-G/12-HS1F(610)
Width	7mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	HF46F-G
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	720Ω
Coil Voltage	12V dc
Switching DC Voltage	30V dc
Switching AC Voltage	277V
Coil Power	200mW

Key Features

Actuated by a 12V DC coil with 200mW coil power.
Designed for high power switching up to 2.8kVA with 10A current rating.
Compact sub-miniature size with 20.5mm length, 7mm width, and 15.3mm height.
Operates reliably across a wide temperature range from -40°C to 85°C.
Features silver alloy contacts with low contact resistance of 100mΩ.
Mounts on PCB using PCB pin terminals for easy integration.
Coil resistance is 720Ω ensuring efficient operation.
Provides isolation between coil and contact with 10kV withstand capability.

Product Description

Hongfa Europe GMBH HF46F-G/12-HS1F(610) PCB Power Relay is a sub-miniature intermediate power relay designed for PCB mounting with a robust 12V DC coil and 10A switching capability. It features a single pole single throw (SPST) contact configuration and silver alloy contacts, making it suitable for high power switching applications up to 2.8kVA.

This relay operates efficiently over a broad temperature range from -40°C to 85°C, ensuring reliability in diverse industrial and commercial settings. Its compact dimensions (20.5mm length, 7mm width, 15.3mm height) support space-saving designs in automated machinery and electronics.

The coil resistance of 720Ω and coil power of 200mW provide steady actuation with minimal power consumption. It provides high isolation with a coil-to-contact dielectric strength of 10kV and is constructed to offer durability up to 5 million operation cycles, making it suitable for heavy-duty and continuous usage.

This relay is RoHS compliant and flux-proofed, ensuring environmental safety and stable performance. It is widely used in applications such as automotive engines, household appliances, industrial machinery, medical equipment, and telecommunication systems requiring reliable power relay performance.

Actuated by a 12V DC coil with 200mW coil power. Designed for high power switching up to 2.8kVA with 10A current rating. Compact sub-miniature size with 20.5mm length, 7mm width, and 15.3mm height. Operates reliably across a wide temperature range from -40°C to 85°C.

Features silver alloy contacts with low contact resistance of 100mΩ. Mounts on PCB using PCB pin terminals for easy integration. Coil resistance is 720Ω ensuring efficient operation. Provides isolation between coil and contact with 10kV withstand capability.

Highly durable with up to 5 million cycles life expectancy. RoHS compliant and flux-proofed for environmental reliability.

This PCB power relay from Hongfa Europe GMBH is ideal for industrial, commercial, and automation applications requiring reliable switching and long service life. Explore a wide range of Power Relays and related products in the Electronics & Electricals category at EnvMart to find tailored solutions for your projects.
