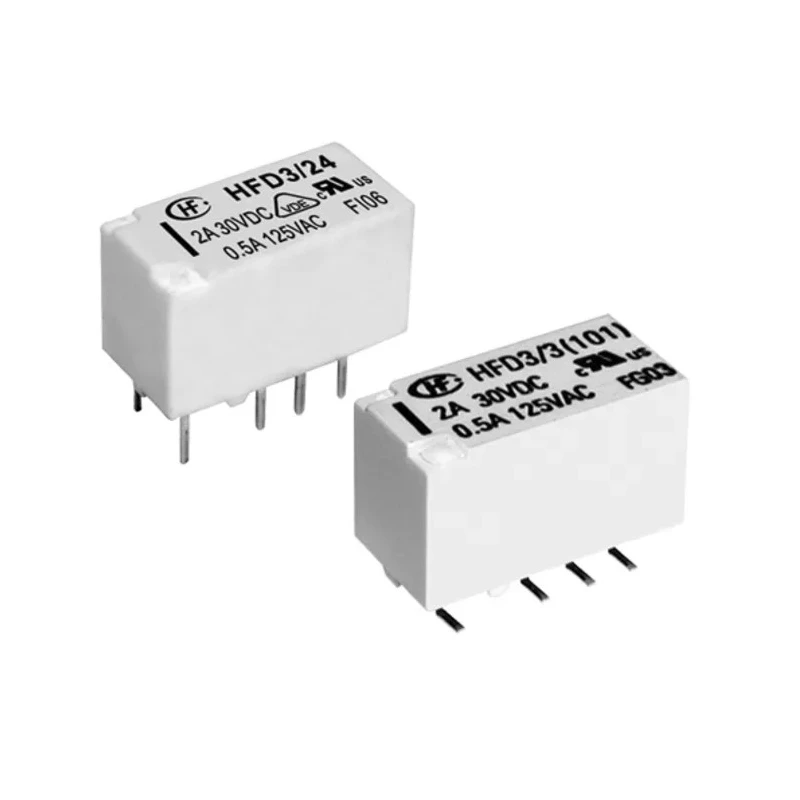

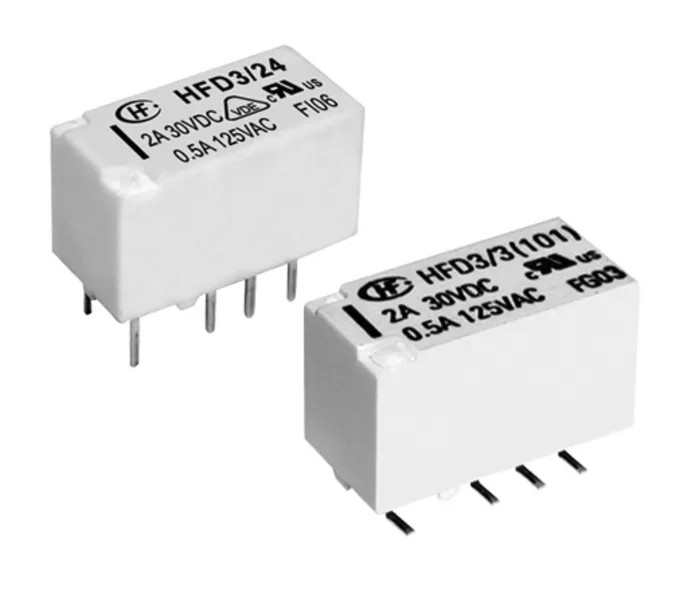

Hongfa Europe GMBH PCB Signal Relay 12V DC Coil 2A DPDT HFD3/12-L2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 9mm |
| Length | 15mm |
| Model | HFD3/12-L2 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HFD3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
| Switching Power | 90W |
Key Features
- Operates at 12V DC coil voltage ensuring stable actuation.
- Double Pole Double Throw (DPDT) contact configuration for versatile signal switching.
- Supports switching current of 2A with max switching power of 90W.
- High insulation voltage of 3KV between coil and contacts for safety.
- Durable silver alloy contacts provide high electrical endurance and low contact resistance of 100mΩ.
- Compact dimensions of 15mm length, 9mm height, and 7.5mm width suitable for PCB mounting.
- Wide operating temperature range from -40°C to 85°C for harsh environments.
- Low coil power consumption of 200mW and coil resistance of 720Ω.
Product Description
Hongfa Europe GMBH model HFD3/12-L2 PCB Signal Relay is a high performance double pole double throw (DPDT) relay with a coil voltage of 12V DC and a switching current rating of 2A. Designed for PCB mounting, this subminiature signal relay delivers reliable switching power of up to 90W.
The relay features silver alloy contacts to provide excellent electrical endurance and a low contact resistance of 100mΩ, ensuring consistent performance. It is capable of handling switching AC voltages up to 277V and DC voltages up to 220V, making it versatile for various signal conditioning applications.
This model complies with RoHS for environmental safety and offers a coil power consumption of just 200mW and coil resistance of 720Ω, optimizing power efficiency. Its compact footprint with dimensions 15mm (L) x 9mm (H) x 7.5mm (W) is ideal for automated assembly using SMT or DIP techniques.
Operating across a wide temperature range from -40°C to 85°C and withstanding isolation voltages up to 3KV, the HFD3/12-L2 is built for durable performance in industrial, automotive, telecommunications, and household appliance sectors where signal switching precision and endurance are critical.
Operates at 12V DC coil voltage ensuring stable actuation. Double Pole Double Throw (DPDT) contact configuration for versatile signal switching. Supports switching current of 2A with max switching power of 90W. High insulation voltage of 3KV between coil and contacts for safety.
Durable silver alloy contacts provide high electrical endurance and low contact resistance of 100mΩ. Compact dimensions of 15mm length, 9mm height, and 7.5mm width suitable for PCB mounting. Wide operating temperature range from -40°C to 85°C for harsh environments.
Low coil power consumption of 200mW and coil resistance of 720Ω. Compliant with RoHS standards ensuring environmental friendliness. Suitable for applications in automotive, industrial machinery, household appliances, and telecommunications.
Explore more Signal Relay products and find technical resources for your electrical and automation design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HFD3/12-L2 relay operates at a coil voltage of 12V DC.
This model supports a maximum switching power of 90W.
The relay features a Double Pole Double Throw (DPDT) contact configuration.
It has a switching current rating of 2A.
The relay has compact dimensions of 15mm in length, 9mm in height, and 7.5mm in width.
The contact resistance is 100mΩ.
It operates within a wide temperature range of -40°C to 85°C.
The contacts are made from durable silver alloy.
The coil power consumption is 200mW.
It can switch DC voltages up to 220V and AC voltages up to 277V.
Yes, it complies with RoHS standards for environmental safety.
This model is designed for PCB mounting.
