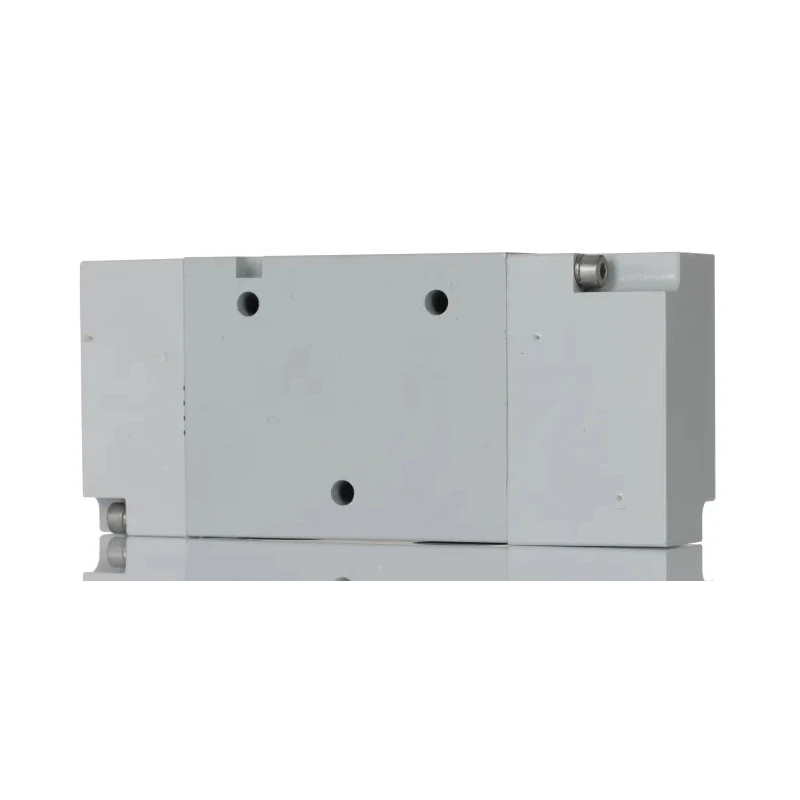

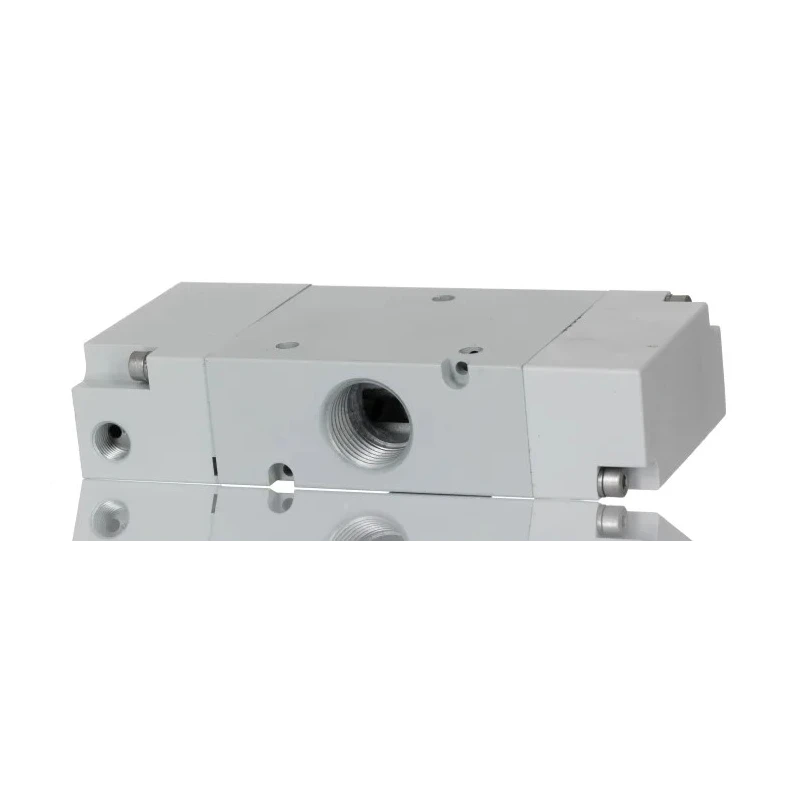

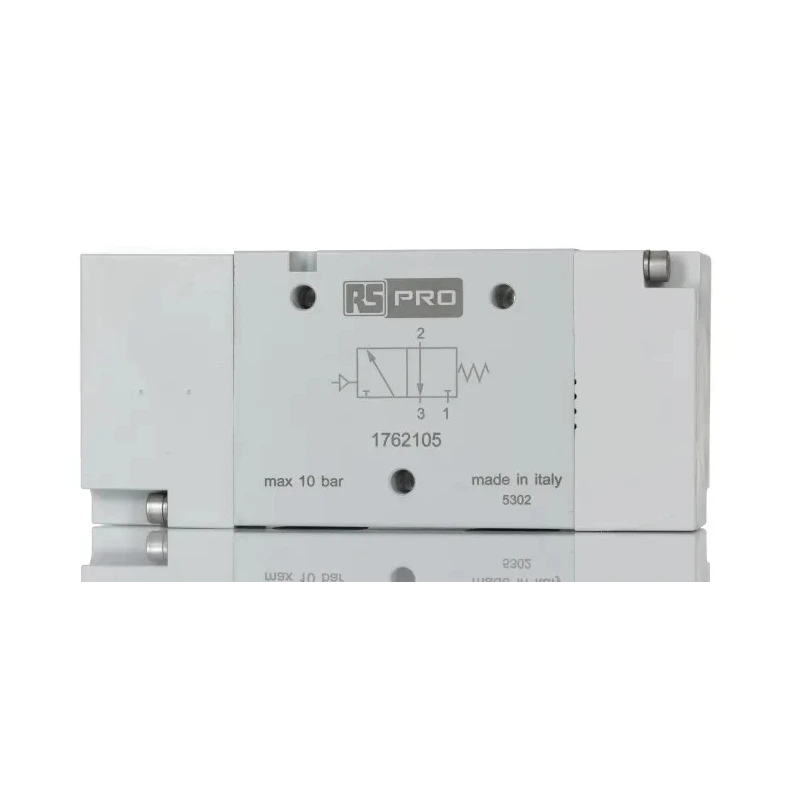

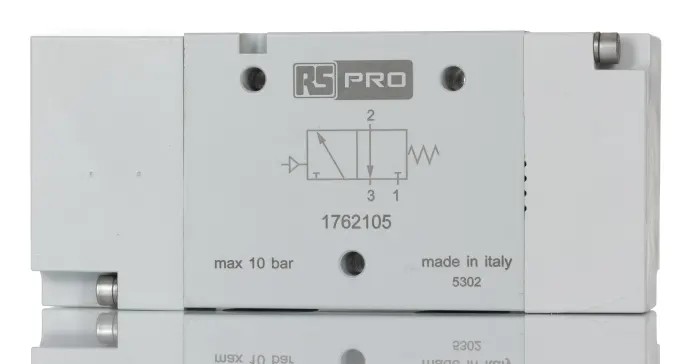

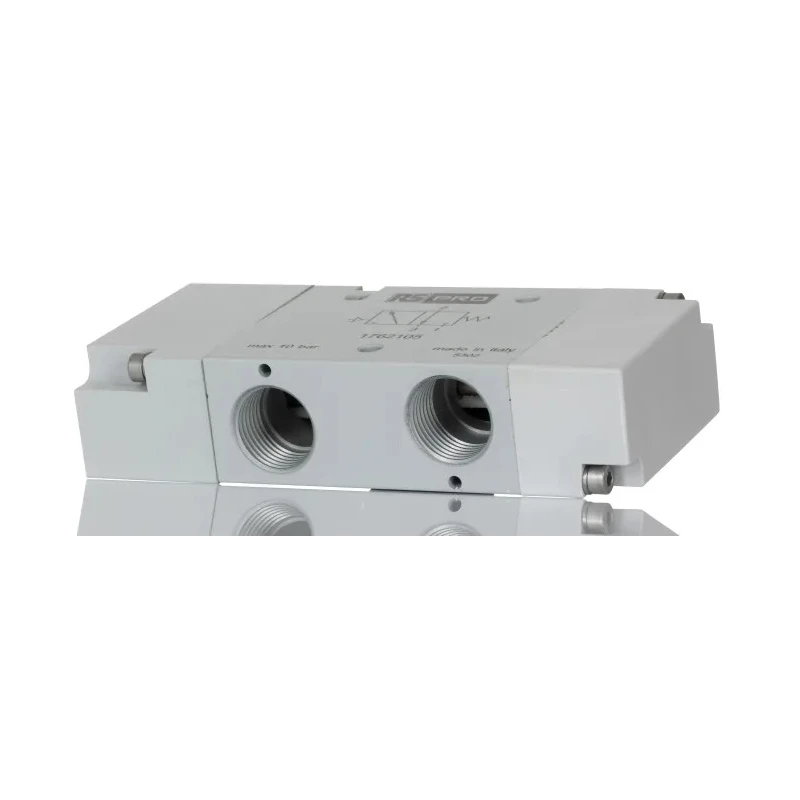

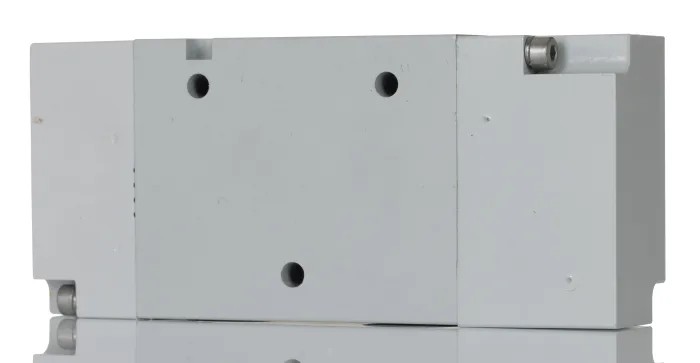

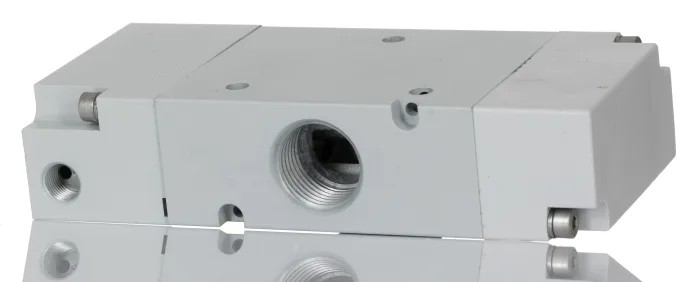

RS PRO Pneumatic Solenoid Valve 3/2 NC Pneumatic G 1/2 in Port Size, Aluminium Body, 10 bar Max Pressure 176-2105
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 60mm |
| Length | 136.2mm |
| Model | 176-2105 |
| Width | 30mm |
| Mount Type | Base |
| Series | RS PRO |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 1 |
| Port Size | 1/2 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pneumatic |
| Maximum Flow Rate | 5000NL/min |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | RoHS, REACH |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 1bar |
| Valve Function | 3/2 NC |
| Electrical Connection Type | Plug Socket |
| Solenoid Type | Single |
| Port Gender | Female |
Key Features
- The valve offers a maximum operating pressure of 10 bar and a maximum flow rate of 5000 NL/min.
- Equipped with a nitrile rubber (NBR) seal for reliable sealing.
- Designed for base mounting and features a plug socket electrical connection.
- Suitable for operating temperatures ranging from -10°C to 60°C with a maximum pilot pressure of 10 bar.
- With its compact dimensions, it measures 136.2 mm in length, 60 mm in height, and 30 mm in width.
- Certified for hazardous areas with ATEX compliance and meets RoHS and REACH standards.
- Ideal for pneumatic automation, robotics, handling, automotive process, textile, packaging, and food processing industries.
- Manufactured in Italy ensuring quality and compliance.
Product Description
RS PRO 176-2105 pneumatic solenoid valve is a precision-engineered 3/2 NC valve with a 1/2 inch port size and aluminium body, designed to provide robust and versatile performance in pneumatic control applications. This valve operates efficiently at pressures up to 10 bar and supports a maximum pilot pressure of 10 bar, making it suitable for a wide range of industrial environments.
Equipped with a nitrile rubber (NBR) seal, the valve ensures dependable leak-free operation and long service life, even under demanding conditions. Its base mounting and plug socket electrical connection facilitate easy installation and maintenance within compact spaces.
The valve supports operating temperatures from -10°C to 60°C, suitable for various climates and industrial settings. It features a maximum flow rate of 5000 NL/min, allowing high throughput in automation and handling systems.
Designed for safety and compliance, this valve is ATEX certified for hazardous areas and conforms to RoHS and REACH environmental standards, highlighting its suitability for regulated industrial applications.
The valve's physical dimensions are 136.2 mm in length, 60 mm in height, and 30 mm in width, enabling integration in compact pneumatic assemblies. Manufactured in Italy, it demonstrates high-quality production standards.
The valve offers a maximum operating pressure of 10 bar and a maximum flow rate of 5000 NL/min. Equipped with nitrile rubber (NBR) seals for reliable sealing. Base mount installation and plug socket electrical connection.
Operates in temperatures ranging from -10°C to 60°C. ATEX hazardous area certification ensures safe operation. Complies with RoHS and REACH environmental standards. Compact size supports space-saving installations. Ideal for pneumatic automation, robotics, handling, automotive, textile, packaging, and food processing industries.
This RS PRO Pneumatic Solenoid Valve is an excellent choice for industrial automation and fluid power applications, providing dependable functionality in a compact and efficient design. Browse EnvMart for more industrial valve solutions and complementary pneumatic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic solenoid valve is 10 bar.
This model has a maximum flow rate of 5000 NL/min.
The valve measures 136.2 mm in length, 60 mm in height, and 30 mm in width.
It is equipped with a nitrile rubber (NBR) seal for reliable sealing.
The operating temperature range for this model is from -10°C to 60°C.
This valve is designed for base mounting, facilitating easy installation.
This model features a plug socket electrical connection.
Yes, it is ATEX certified for hazardous areas, ensuring safe operation in such environments.
It complies with RoHS and REACH environmental standards.
The actuation type of this valve is pneumatic.
This valve has 3 ports, with a port size of 1/2 inch.
It is suitable for pneumatic automation, robotics, handling, automotive processes, textile, packaging, and food processing industries.
