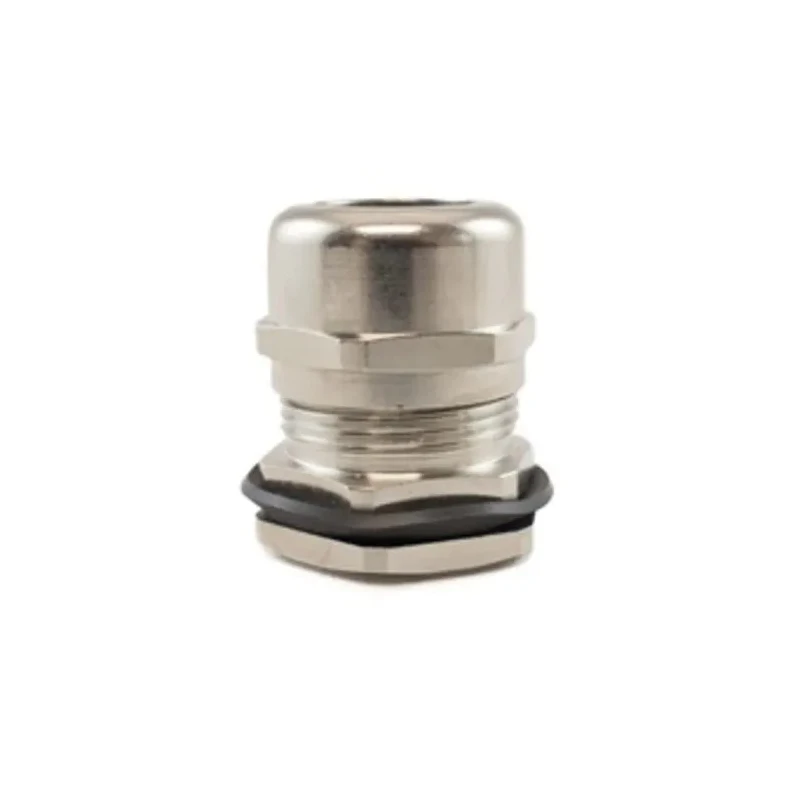

Alpha Wire FIT Wire Management Series Metallic Metal Cable Gland, 1 in NPT Thread, 18 mm min., 25 mm max., IP66 MNPT1 NC080
Specifications
| Country of Origin | India |
|---|---|
| Size | NPT-1 |
| Brand | Alpha Wire |
| Material | Metal |
| Colour | Metallic |
| Temperature range | -20°C to +100°C (Permanent), -40°C to +150°C (Intermittent) |
| Model | MNPT1 NC080 |
| IP Rating | IP66, IP68 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | 1 in NPT |
| Minimum Operating Temperature | -30°C |
| Thread Length | 13 mm |
| Clamping Range | 18 - 25 mm |
| Thread Diameter | 33.40 mm |
| Standards/Approvals | UL |
| Maximum Cable Diameter | 25mm |
| Minimum Cable Diameter | 18mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from brass with nickel plating for durability and corrosion resistance.
- Features a Chloroprene rubber seal and NBR O-Ring for superior sealing and strain relief.
- Supports operating temperatures from -30°C minimum to 150°C maximum.
- Includes locknut to secure gland firmly in place.
- Complies with UL standards ensuring electrical safety and flammability rating V2 according to UL94.
- Suitable for telecommunications, control, instrumentation, data, and electrical power cable applications.
- IP68 rated for water submersion beyond 1 metre depth for 30 minutes at 5 bar pressure.
- Thread length is 13 mm with thread diameter of 33.40 mm for secure fittings.
Product Description
Alpha Wire MNPT1 NC080 is a high-quality metallic metal cable gland designed for wire management systems requiring reliable strain relief and protection. This cable gland is constructed from brass with nickel plating, providing excellent robustness and corrosion resistance essential for industrial and electrical applications.
The gland features a 1 inch NPT thread size with a clamping range accommodating cable diameters from 18 mm minimum to 25 mm maximum. It incorporates a Chloroprene rubber seal along with an NBR O-Ring to ensure a highly effective seal against dust, dirt, and water ingress.
Rated IP66 and IP68, this gland is resistant to dust and capable of withstanding submersion in fresh water beyond 1 metre depth at 5 bar pressure for up to 30 minutes, making it ideal for harsh environments. The locknut included ensures secure attachment and strain relief for cables, enhancing structural integrity.
The gland operates effectively in a wide temperature range from -30°C to 150°C, and its flammability rating V2 per UL94 ensures fire safety. It meets UL standards, further confirming its compliance for safe electrical installations.
Applications for the MNPT1 NC080 cable gland include telecommunications, control systems, instrumentation, data transmission, and electrical power infrastructure. Its durable construction and comprehensive sealing features ensure long service life even in demanding industrial and commercial settings.
High-quality brass, nickel plated construction for durability. Chloroprene rubber seal and NBR O-Ring for effective sealing. Wide clamping range from 18 mm to 25 mm cable diameter. IP66 and IP68 certified for dust and water resistance.
Temperature range from -30°C to 150°C supports diverse environments. Includes locknut for secure installation and strain relief. Meets UL standards and UL94 V2 flammability rating. Explore more Cable Glands and electrical fittings in the Electronics & Electricals category at EnvMart for reliable wire management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this cable gland accommodates cable diameters from 18 mm minimum to 25 mm maximum.
This model features a 1 inch NPT thread size.
It is rated IP66 and IP68, providing resistance to dust and water ingress, including submersion in fresh water beyond 1 metre depth at 5 bar pressure for up to 30 minutes.
The cable gland is constructed from brass with nickel plating, providing durability and corrosion resistance.
It operates effectively in a temperature range from -30°C to 150°C.
Yes, it includes a locknut to secure the gland firmly in place and provide strain relief for the cables.
The thread length is 13 mm.
It has a flammability rating of V2 according to UL94 standards.
It is suitable for telecommunications, control systems, instrumentation, data transmission, and electrical power applications.
The maximum cable diameter it can accommodate is 25 mm.
It complies with UL standards, ensuring electrical safety.
The minimum operating temperature is -30°C.
