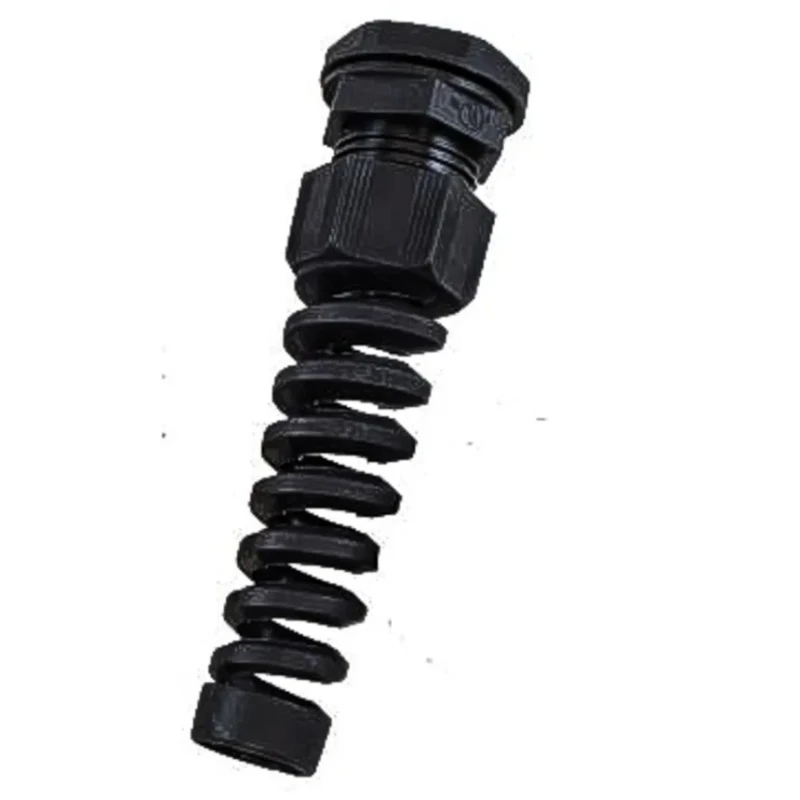

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland 1/2 in NPT Thread 6 mm Min. 12 mm Max. IP66
Specifications
| Country of Origin | India |
|---|---|
| Size | NPT-1/2 |
| Brand | Alpha Wire |
| Material | Polyamide 6 |
| Colour | Black |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | IP66 |
| IP Rating | IP66, IP68 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | 1/2 in NPT |
| Minimum Operating Temperature | -30°C |
| Thread Length | 15 mm |
| Clamping Range | 6 - 12 mm |
| Thread Diameter | 21.34 mm |
| Standards/Approvals | CSA, UL |
| Maximum Cable Diameter | 12mm |
| Minimum Cable Diameter | 6mm |
| Flammability | V2 (According to UL94) |
Key Features
- Thread size is 1/2 inch NPT suitable for secure cable fitting.
- Clamping range accommodates cable diameters from 6 mm to 12 mm.
- Constructed from black Polyamide 6 material with a robust Chloroprene rubber O-ring seal.
- Temperature rating supports -30°C minimum up to 150°C maximum operating temperature.
- IP66 and IP68 rated for dust and water resistance including submersion beyond 1 meter.
- Includes locknut for firm securing of the gland during installation.
- Meets CSA and UL standards for quality and safety compliance.
- Flammability rated V2 according to UL94 ensuring fire resistance of plastic parts.
Product Description
Alpha Wire PNS1/2 BK080 cable gland is part of the FIT Wire Management Series designed for flexible cable protection in industrial and electrical applications. Manufactured from durable Polyamide 6, this black cable gland offers secure sealing with a Chloroprene rubber O-ring and locknut included for efficient strain relief and cable retention.
Its 1/2 inch NPT thread ensures compatibility with standard cable management systems while accommodating cable diameters ranging from 6 mm minimum to 12 mm maximum. Suitable for harsh environments, it holds an IP66 and IP68 rating, ensuring resistance against dust, dirt, sand, and water submersion exceeding 1 meter.
The product operates reliably within a broad temperature range from -30°C to +150°C (intermittent) and -20°C to +100°C (permanent). It also meets key industry standards including CSA and UL for certifications and safety compliance. The V2 flammability rating according to UL94 attests to its flame-retardant plastic construction.
This cable gland is ideal for use in telecommunications, control systems, instrumentation, data cables, and electrical power installations where robust strain relief and ingress protection are essential. The 15 mm thread length and 21.34 mm thread diameter enable ease of installation with secure mechanical fitment.
Thread size: 1/2 inch NPT. Clamping range: 6 to 12 mm cable diameter. Polyamide 6 construction with rubber O-ring seal. IP66 and IP68 ingress protection ratings. Temperature range: -30°C to +150°C (intermittent). Includes locknut for secure fixing.
Compliance with CSA, UL standards. Flammability rating V2 (UL94). Thread length 15 mm, diameter 21.34 mm. Explore more Cable Gland solutions and wire management products on EnvMart to ensure reliable and safe cable installations for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range accommodates cable diameters from 6 mm to 12 mm.
It supports a temperature range of -30°C to +150°C for intermittent use and -20°C to +100°C for permanent use.
This cable gland has an IP66 and IP68 rating, providing resistance against dust and water, including submersion beyond 1 meter.
It is constructed from black Polyamide 6 and includes a Chloroprene rubber O-ring seal for secure sealing.
The thread size is 1/2 inch NPT with a thread length of 15 mm and a thread diameter of 21.34 mm.
Yes, it includes a locknut for firm securing of the gland during installation.
It meets CSA and UL standards for quality and safety compliance.
The plastic parts have a flammability rating of V2 according to UL94, ensuring fire resistance.
It is suitable for telecommunications, control systems, instrumentation, data cables, and electrical power installations.
The cable gland is manufactured in India.
The model number is PNS1/2 BK080.
The maximum cable diameter it can accommodate is 12 mm.
