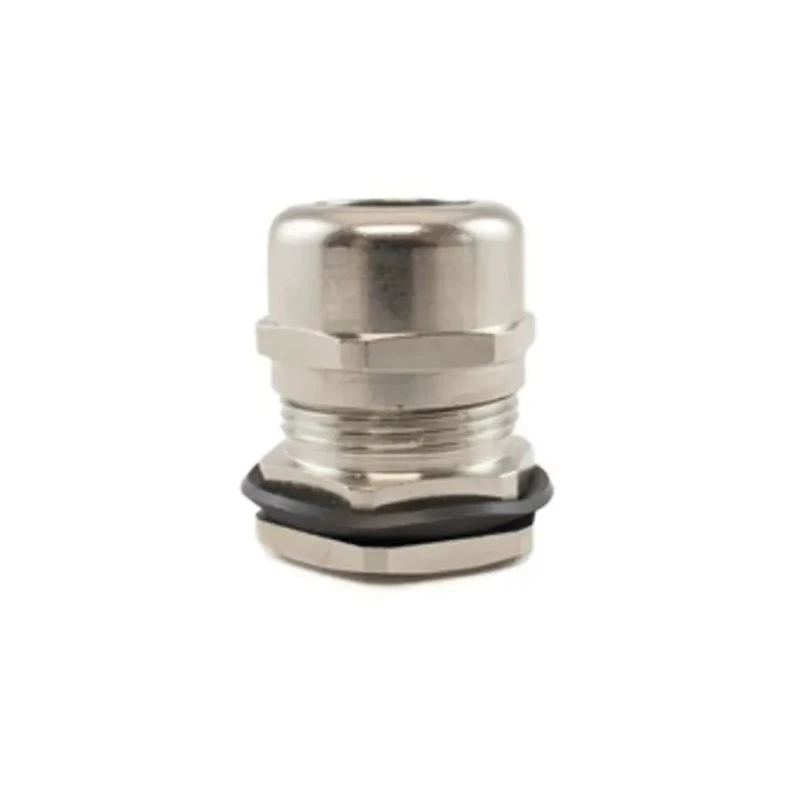

Alpha Wire FIT Wire Management Series Metallic Metal Cable Gland M25 Thread 11 mm to 17 mm IP66 IP68 MES25 NC080

Alpha Wire MES25 NC080 FIT Wire Management Series Metallic Metal Cable Gland is designed for secure and durable cable management in industrial and commercial applications. It features a brass nickel-plated body and cap, outfitted with a chloroprene rubber seal and NBR O-ring, providing effective strain relief and protection for cables ranging between 11 mm and 17 mm diameter. The cable gland thread size is M25 with a 1.5 pitch, thread length of 8 mm, and thread diameter of 25 mm, ensuring compatibility with standard fittings.

This cable gland offers an IP66 and IP68 rating, making it resistant to dust, water ingress, and suitable for submersion under fresh water beyond 1 meter depth for up to 30 minutes at 5 bar pressure. Its temperature range supports permanent operation between -20°C to +100°C and intermittent use from -40°C up to +150°C, making it reliable for harsh environmental conditions.

The gland complies with UL standards and features V2 flammability rating under UL94, ensuring fire safety compliance. It includes a locknut to secure the gland firmly in place, preventing loosening and maintaining cable integrity under mechanical stress. It is ideal for applications in telecommunications, control systems, instrumentation, data cables, and electrical power installations.

Its metal construction and robust rubber seals ensure long-lasting performance in demanding environments, while the large clamping range accommodates various cable sizes. Alpha Wire’s cable glands offer a trusted solution for wiring systems requiring high ingress protection and mechanical resilience.

Constructed from brass with nickel plating for enhanced durability. Chloroprene rubber seal and NBR O-ring provide water and dust resistance. Thread size M25x1.5 suitable for standard cable fittings. Thermal operation range from -40°C to +150°C (intermittent).

Rated IP66 and IP68 for water and dust ingress protection. Includes locknut for secure installation. Tested to UL standards with V2 flammability rating. Compatible with cables from 11 mm to 17 mm diameter.

Choose Alpha Wire Cable Glands for reliable wire management solutions in industrial, laboratory, HVAC, manufacturing, and telecommunications environments. Browse more cable gland components and fittings at EnvMart for comprehensive electrical infrastructure solutions.
